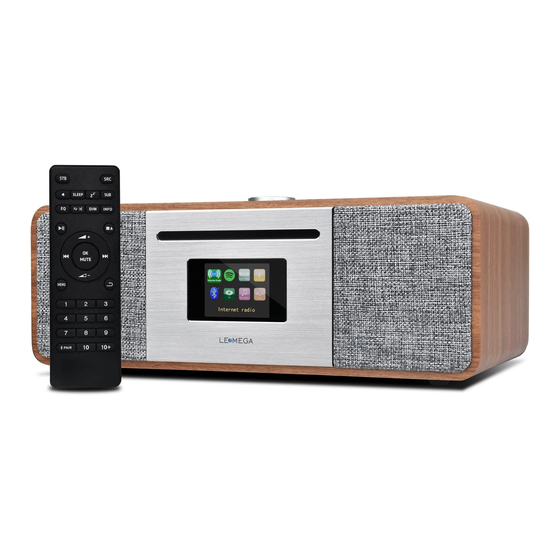

LEMEGA MSY5 Owner's Manual

All-in-one music system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LIFE & ALOUD

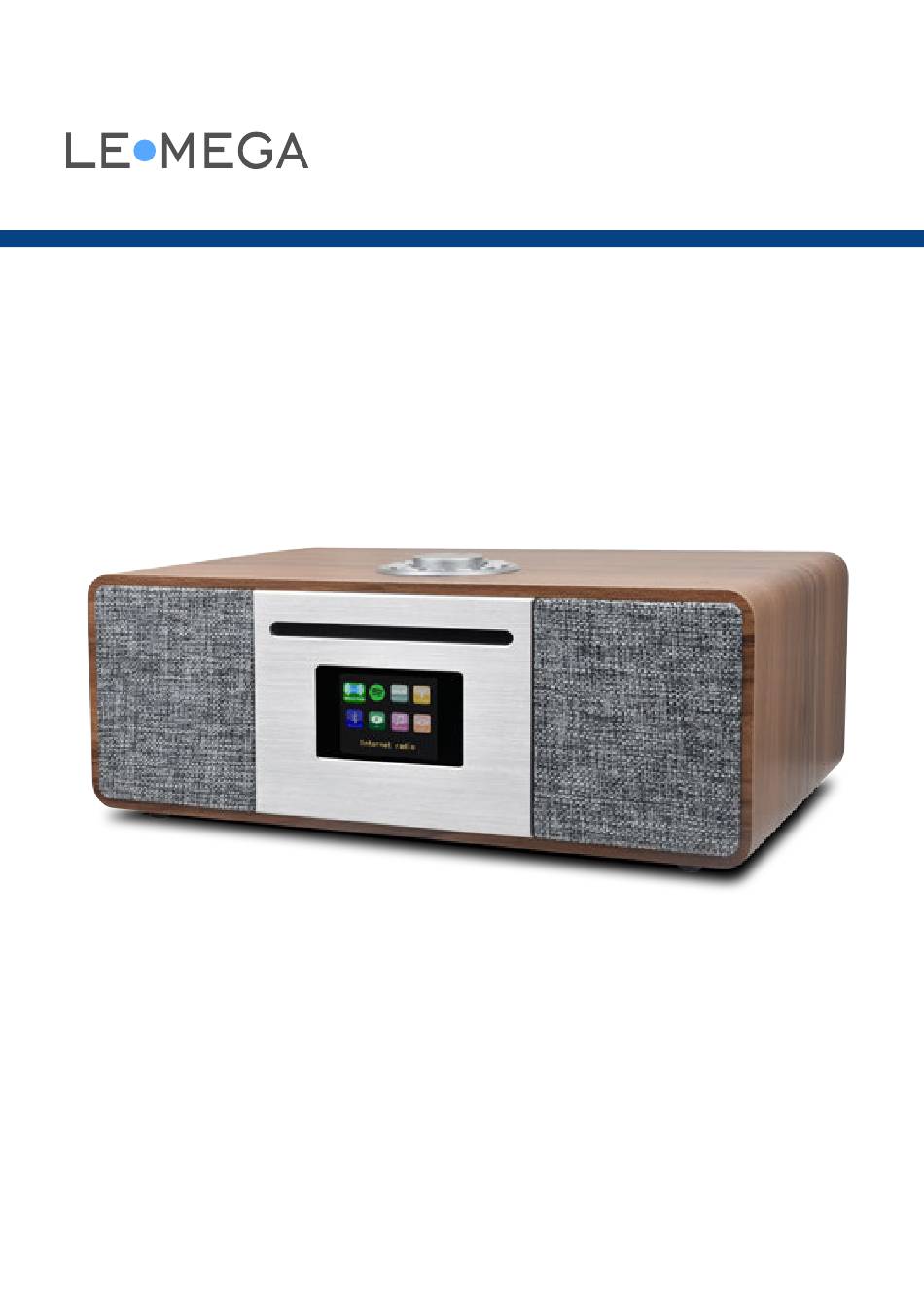

MSY 5 ALL - I N- ON E M USI C S YSTE M
Owner's manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSY5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEMEGA MSY5

Summary of Contents for LEMEGA MSY5

  • Page 1 LIFE & ALOUD MSY 5 ALL - I N- ON E M USI C S YSTE M Owner's manual...

  • Page 2: Table Of Contents

    Table of content ………………………………………………..3 1. Introduction ……………………………………………..3 1.1 Safety ..………………………………………...…..5 1.2 Features …………………………………………... 6 1.3 Carton contents …………………………….……..…..…..6 1.4 External resources ..…………………………………..……..7 1.5 Conventions used in this manual …………………………………………………. 7 2 Controls, connectors and display ……………………………………....

  • Page 3: Introduction

    ………………………………....23 6.4 Settings ……………………………......23 7 FM radio mode …………………………………………… 24 7.1 Selecting stations ………………………………....24 7.2 Now playing information …………………………………....24 7.3 Settings ……………………………………………. 25 8 Aux in mode …………………………………....25 9 Bluetooth mode …………………………………….... 26 10 My Music with USB playback …………………………………....
  • Page 4 • This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. •...

  • Page 5: Features

    In the rare event you experience an error, unplug the power cord for 60 seconds and then plug it back in firmly. 1.2 Features This manual describes how to use the MSY5, an advanced but easy-to-use Wi-Fi connected audio system with the following modes:...

  • Page 6: Carton Contents

    • 1 12V/3A power adapter • 1 owner’s manual • 1 Remote Control • 1 Warranty Card 1.4 External resources To operate MSY5, the following external resources are needed: • A power adapter • A wireless (Wi-Fi) network (provided through a router) with Appropriate...

  • Page 7: Conventions Used In This Manual

    permissions and password if necessary (for Internet radio) • Broadband Internet access (for Internet radio mode and Spotify mode and Internet Software Update) • An iOS or Android device (for using control apps). • An external audio source (for Aux in mode) 1.5 Conventions used in this manual Button (press) Physical button on the keypad...
  • Page 8 1 SELECT/ VOLUME/MUTE/SNOOZE: a. SELECT: Turn to scroll through a menu or station list. The chosen option is highlighted in yellow text), Press to the button to select. b. VOLUME: Turn to the button to adjust the volume up or down when playback. c.

  • Page 9: Connectors

    Press to select Play/Pause under internet radio, Spotify, CD and BT mode. In FM mode, press to do auto scans the stations 2.2 Connectors. As shown below has connectors (from left to right) for the following: MODEL : MSY5 ALL-IN-ONE MUSIC SYSTEM INPUT : DC 12V 3A DC 12V/3A...

  • Page 10: Remote Control

    Remote control In additional to duplicating most of buttons on top of the unit, the remote control adds the following functions: 1, 2, 3, 4, 5, 6, 7, 8, 9,10: Short press to preset the stations. For the 10+, it needs to long press the 10+ and then short press the 1-9 to get the 10+ preset number : Press to play / pause the playing BT mode and CD mode.

  • Page 11: Operation

    Press select button to that mode. The last station or track previously used in that mode is selected. If this is not possible, MSY5 scans for relevant stations, networks, or prompts the user for appropriate input. See the relevant Mode section for details of how to use each listening mode.

  • Page 12: Started And Setup

    The Main menu presents an alternative method for selecting listening modes plus sleeps and alarm functions. Started and setup MSY5 is easy to use. To play DAB or FM radio, all you need is a 12V/3A power adapter; For Internet-connected modes such as Internet radio, you need a broadband Internet connection.
  • Page 13 Select Yes to start the setup wizard. If you choose No, the next screen asks if you would like to run the wizard next time MSY5 is started. The system then starts without configuring time/date and network settings and enters the Main Menu.
  • Page 14 MSY5 is compatible with all common network protocols and encryption methods, including Wi-Fi Protected Setup (WPS). To connect MSY5 to your network, you need a Wi-Fi wireless router, together with password key if set Select WLAN region/country >Wi-Fi network (SSID), and then select a network from the list.
  • Page 15 Skip WPS is available. Select one and follow the prompts: • Push Button > MSY5 prompts you to press the connect button on the router. It then press the select control. • Pin > (code number) MSY5 generates an 8-digit code number which you enter into the wireless router, access point.

  • Page 16: Other Settings

    On completion MSY5 connects to the selected network. If connecting fails, MSY5 returns to a previous screen to try again. To exit the process use the Back/Menu button 3.2 Other settings Sections for those modes. Common settings are covered below.

  • Page 17: Internet Radio Mode

    Open the settings to adjust the equalizer, set sleep timer and other functions easily. Internet radio mode MSY5 can play thousands of radio stations and podcasts from around the world though a broadband Internet connection. When you select Internet radio mode, MSY5 contacts the Frontier Silicon Internet radio portal to get a list of stations, organized into different categories like Country, Most popular and Genre.

  • Page 18: Country

    Menu >Main menu > Internet Radio. Note: The station list menu is provided from the Internet radio portal, so it is only accessible when MSY5 is connected to the Internet. Station lists and submenus may change from time to time.

  • Page 19: History

    4.2 History When Internet radio mode restarts, the last-listened station is selected. To select another recently used station, select Menu > History then one of the stations listed. Most recent stations appear at the top of the list 4. 3 Search You can also search through Internet broadcasts for stations or podcasts with particular keywords in their title.

  • Page 20: Popular

    4.5 Popular Presents a list of the most popular internet stations from around the world. 4.6 Discover Allows you to select from a list of stations defined by either their origin (Country), Genre (style of music) or language. Navigate through the category options, once you have made your selection a screen confirms your selected category and the number of stations within that category.

  • Page 21: Dab Radio Mode (Optional)

    4. Touch the picture of the album at the bottom left of the screen. Then press Connect icon 5. Press MSY5 to select your radio and it will start playing from you MSY5. Note that radio is that " LEMEGAxxxxxxxxxxxx " ( 12-digit number is the MAC address of the radio ) in Spotify app.

  • Page 22: Selecting Stations

    The first time you select DAB radio mode, Or if the station list is empty, MSY5automatically performs a full scan to see what stations are available. You may also need to start a scan manually to update the list of stations for one of the following reasons: Available stations change from time to time.

  • Page 23: Settings

    (for example, classical music while cooking). To change the DRC of the MSY5, select Menu > DRC, and then DRC high, DRC low or DRC off.

  • Page 24: Selecting Stations

    7.1 Selecting stations To find a station, press Select. The frequency display starts to run up as MSY5 scans the FM band. Alternatively, you can scan up or down by pressing and holding the >> or <<buttons or tune manually with quick presses, or by turning the Select control.

  • Page 25: Aux In Mode

    2). Either press Mode until the display shows AUX in or select Menu> Main menu > AUX in. 3). Adjust the volume of MSY5 (and, if necessary, the audio source device) as required. 9. Bluetooth mode Prior to pairing, verify your device supports Bluetooth 4.0+EDR A2DP and your device is not connected to any other Bluetooth product.

  • Page 26: My Music With Usb Playback

    “Forget this Device”, then repeat the Pairing process. Depending on your device. You may need to make multiple attempts at Pairing and/or Connecting to the MSY5, but please give your device adequate time to Pair or Connect before repeating the process.

  • Page 27: Alarms And Sleep

    mini-discs) into the CD player. These may not be played and ejected correctly. Insert only one disc at a time into the CD player. Insert a disc (with printing side facing up) until it is drawn inside. The CD player will automatically load the CD and start playback.

  • Page 28: Alarms

    12.1 Alarms To set or change an alarm, either press Alarm or select Menu > Main Menu > Alarms. Select the alarm number (1 or 2) then configure the following parameters: Enable: on/off,  Frequency: Daily, Once, Weekends or Weekdays, ...

  • Page 29: Software Upgrade And Factory Reset

    Software upgrades and factory reset 13.1 Software upgrade From time to time, MSY5 may make software upgrades available with bug Fixes and/or additional features. You can either check manually, or set MSY5 to check periodically automatically (this is the default). If MSY5 detects that newer software is available, it asks if you want to go ahead with an update.

  • Page 30: Troubleshooting And Error Messages

    Bad memory sector memory found on USB device Power failure to USB device - user have underpowered to remove the device Waiting for Spotify mode - No Spotify account Users credentials available on the MSY5 audio system. Connect to the audio system...

  • Page 31: Troubleshooting

    Check that network is working between a to network computer and the router Cannot connect Router restricts Obtain the MSY5 MAC address from Menu > System settings > Network > to network access to listed View settings and add to router list.
  • Page 32 Problem Cause Solutions Cannot connect to Internet connection down Check that Internet is working for Internet a computer connected to the same network Firewall preventing access Check the following ports are open: UDP and TCP ports 80 and 123; DNS port 53. Some Internet radio stations may require additional ports to be opened.

  • Page 33: Technical Specifications

    15 Technical Specification： Model: MSY5 ALL-IN-ONE MUSIC SYSTEM Type: CD/ WiFi/Spotify/Internet Radio/DAB/DAB+/FM/AUX/Bluetooth Music system Speaker: 2 x 3” (full range) Power: RMS 30W Power Supply: 12V/2.5A power adapter Dimension (mm): 350W x 140H x 235D Weight: 4.06 KG Specifications are subject to change without notice If you have any questions or suggestions, please share with us.
  • Page 34 LIFE & ALOUD MSY5 AL L - I N-O NE M USIC S YSTE M If you have any questions or suggestions, please share with us. info@lemegaaudio.com www.lemegaaudio.com Made in China...
