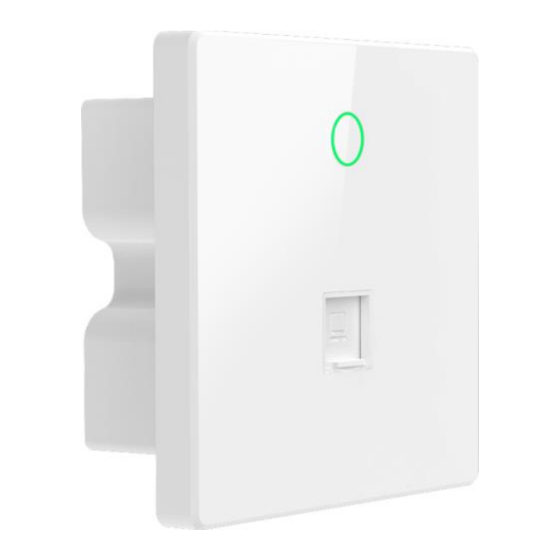

PROAPW300L- 300Mbps 2.4GHz In Wall Access Point
with RJ45 Port
PROAPW750L- 750Mbps 2.4 & 5GHz In Wall Access Point
with RJ45 Port
PROAPCEILING- 1200Mbps 2.4 & 5GHz Ceiling Access Point
Advanced Instructions
Default Data:
• In Default GATEWAY mode the management IP address is 192.168.188.253
• Default Login Password: admin
• Default Wi-Fi password
• WAN: Ethernet Port, connect with router.
LAN: Forward port onto local network.
• DC Input: Is 48V.
• AP is FAT (Default) but can also operate in FIT mode.
• Reset: Press 15 seconds to revert to factory default data.
LED Indicator: To show the working status of 2.4G, 5G and Power.
(LED can be switched off by timer in advanced settings.)
sales@blake-uk.com
www.blake-uk.com
0114 223 5000
PD2011-8246-04
4wG7cZXd
Compatible with all Operating
Systems
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Blake UK PROCEPTION PROAPW300L
Summary of Contents for Blake UK PROCEPTION PROAPW300L

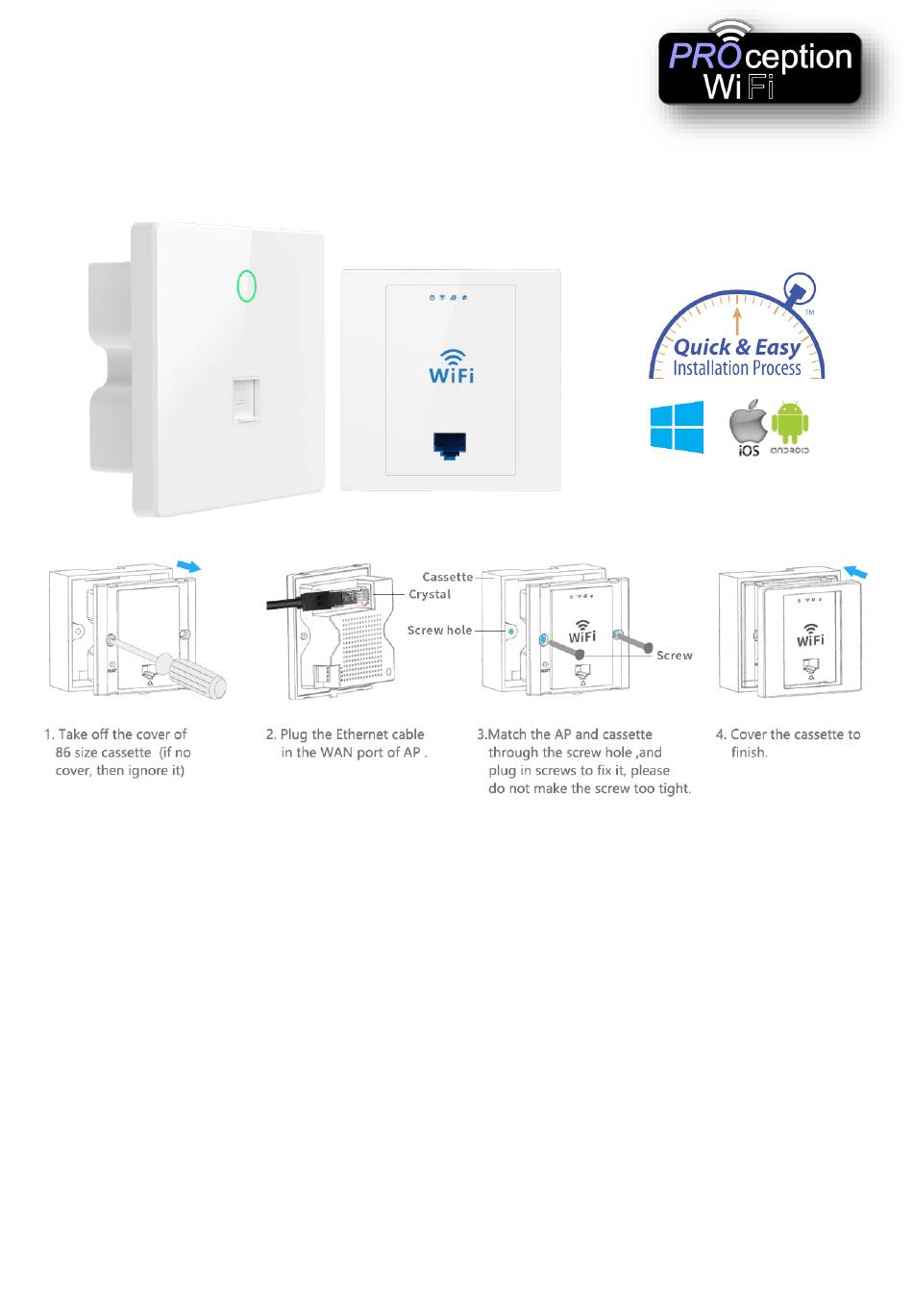

- Page 1 PROAPW300L- 300Mbps 2.4GHz In Wall Access Point with RJ45 Port PROAPW750L- 750Mbps 2.4 & 5GHz In Wall Access Point with RJ45 Port PROAPCEILING- 1200Mbps 2.4 & 5GHz Ceiling Access Point Advanced Instructions Compatible with all Operating Systems Default Data: • In Default GATEWAY mode the management IP address is 192.168.188.253 •...
- Page 2 PROAPW300L- 300Mbps 2.4GHz In Wall Access Point with RJ45 Port PROAPW750L- 750Mbps 2.4 & 5GHz In Wall Access Point with RJ45 Port PROAPCEILING- 1200Mbps 2.4 & 5GHz Ceiling Access Point Advanced Instructions SIX STEP EASY AND QUICK SETUP. If the access point is still in its default Gateway mode, then connection is easier via Wi-Fi.
- Page 3 PROAPW300L- 300Mbps 2.4GHz In Wall Access Point with RJ45 Port PROAPW750L- 750Mbps 2.4 & 5GHz In Wall Access Point with RJ45 Port PROAPCEILING- 1200Mbps 2.4 & 5GHz Ceiling Access Point Advanced Instructions Using a Windows PC 1. By default, the AP is in Gateway mode. You can connect to the device by simply connecting to the Access Points existing Wi-Fi signal.
- Page 4 PROAPW300L- 300Mbps 2.4GHz In Wall Access Point with RJ45 Port PROAPW750L- 750Mbps 2.4 & 5GHz In Wall Access Point with RJ45 Port PROAPCEILING- 1200Mbps 2.4 & 5GHz Ceiling Access Point Advanced Instructions If you’re reading this on a computer simply click here http://192.168.188.253 If you wish to reconnect to the AP for additional setting up (while in AP mode) then please scan the network with an app (We suggest Net Analyzer) and look...
-
Page 5: Web Gui Configuration
PROAPW300L- 300Mbps 2.4GHz In Wall Access Point with RJ45 Port PROAPW750L- 750Mbps 2.4 & 5GHz In Wall Access Point with RJ45 Port PROAPCEILING- 1200Mbps 2.4 & 5GHz Ceiling Access Point Advanced Instructions PC Web login interface (default password admin). WEB GUI Configuration Once logged in the home page will show as follows: Current mode:- This shows the current operating mode (Gateway in this example). -
Page 6: Setup Wizard
PROAPW300L- 300Mbps 2.4GHz In Wall Access Point with RJ45 Port PROAPW750L- 750Mbps 2.4 & 5GHz In Wall Access Point with RJ45 Port PROAPCEILING- 1200Mbps 2.4 & 5GHz Ceiling Access Point Advanced Instructions WAN or LAN. 2G and 5G Wi-Fi:- showing channel allocated. Flow:- Shows upstream and downstream of current connections. - Page 7 PROAPW300L- 300Mbps 2.4GHz In Wall Access Point with RJ45 Port PROAPW750L- 750Mbps 2.4 & 5GHz In Wall Access Point with RJ45 Port PROAPCEILING- 1200Mbps 2.4 & 5GHz Ceiling Access Point Advanced Instructions WISP mode:- Wirelessly connects to a WISP (Wireless Internet Service Provider) AP. In this mode, the AP also acts as a router for wired clients on your LAN and provides NAT (Network Address Translation) and a DHCP server to generate IP addresses for wired clients only.
- Page 8 PROAPW300L- 300Mbps 2.4GHz In Wall Access Point with RJ45 Port PROAPW750L- 750Mbps 2.4 & 5GHz In Wall Access Point with RJ45 Port PROAPCEILING- 1200Mbps 2.4 & 5GHz Ceiling Access Point Advanced Instructions Setup screen in AP Mode Wi-Fi Setup menu: Scan, select SSID &...
- Page 9 PROAPW300L- 300Mbps 2.4GHz In Wall Access Point with RJ45 Port PROAPW750L- 750Mbps 2.4 & 5GHz In Wall Access Point with RJ45 Port PROAPCEILING- 1200Mbps 2.4 & 5GHz Ceiling Access Point Advanced Instructions MAC ACL:- Access control lists (ACL) can control the traffic entering a network. When you configure ACL, you can selectively admit or reject inbound traffic, thereby controlling access to your network or to specific resources on your network.
- Page 10 PROAPW300L- 300Mbps 2.4GHz In Wall Access Point with RJ45 Port PROAPW750L- 750Mbps 2.4 & 5GHz In Wall Access Point with RJ45 Port PROAPCEILING- 1200Mbps 2.4 & 5GHz Ceiling Access Point Advanced Instructions VAP 1-3: - In each of the 2G & 5G sections you can allocate up to three VAPs (Virtual Access points).
- Page 11 PROAPW300L- 300Mbps 2.4GHz In Wall Access Point with RJ45 Port PROAPW750L- 750Mbps 2.4 & 5GHz In Wall Access Point with RJ45 Port PROAPCEILING- 1200Mbps 2.4 & 5GHz Ceiling Access Point Advanced Instructions Manage setup menu: Configure:- Allows you to save the configuration file to your computer. Restore:- Restore the back of the configuration file (also useful for installing many access points with the same configuration).
- Page 12 PROAPW300L- 300Mbps 2.4GHz In Wall Access Point with RJ45 Port PROAPW750L- 750Mbps 2.4 & 5GHz In Wall Access Point with RJ45 Port PROAPCEILING- 1200Mbps 2.4 & 5GHz Ceiling Access Point Advanced Instructions TIPS Due to the Browser Cache process on a PC please be aware that we advise to refresh (shift F5) any screen before working on settings.
-
Page 13: Advanced Instructions
PROAPW300L- 300Mbps 2.4GHz In Wall Access Point with RJ45 Port PROAPW750L- 750Mbps 2.4 & 5GHz In Wall Access Point with RJ45 Port PROAPCEILING- 1200Mbps 2.4 & 5GHz Ceiling Access Point Advanced Instructions PROAPW750L Hardware: Chipset Qualcomm QCA9563 + QCA9886 +QCA8334 Standard 802.11ac/b/g/n, MIMO technology Memory... - Page 14 PROAPW300L- 300Mbps 2.4GHz In Wall Access Point with RJ45 Port PROAPW750L- 750Mbps 2.4 & 5GHz In Wall Access Point with RJ45 Port PROAPCEILING- 1200Mbps 2.4 & 5GHz Ceiling Access Point Advanced Instructions WAN Type Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption SSID...
- Page 15 Certifications RoHS EU Declaration of Conformity Blake UK hereby declares that the radio equipment type PROAPW300L, PROAPW750L & PROAPCEILING are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.blake-uk.com/DoC...
