Blake UK PROception The Bridge Setup Manual

24v outdoor cpe
Hide thumbs

Advertisement

Quick Links

Download this manual
CPE The Bridge
Outdoor CPE/Bridge with LED display, High power industrial 5G outdoor CPE/Bridge with the next generation 802.11ac
Wi-Fi standard, 802.11 ac/b/g/n 5 GHz 900 Mbps, MIMO 15dBi Dual Polarized High Gain Antenna, 500mW RF Power,
Multi-Mode, Support Multi SSID up to 4, PTP/PTMP, 5KM+ Distance Coverage. 802.11ac Wi-Fi and 2*2 MIMO technology,
900Mbps wireless speed. Equipped with Gigabit Ethernet port ensures high speed internet access and more end users
4 in 1 Operation Mode Wireless AP, Gateway, Wireless Bridge & Super WDS, Supports HI-MAX TDMA Technology, Sup-
port Multi SSID up to 4, Support Beamforming Technology, MIMO High Gain Omni 15dBi Internal Antenna, 802.11ac,
Press F Key to enter setup mode
H means Host/Master AP
C means Client/Slave AP
2T2R 900M MIMO Technology, 8MB Flash, 64M DDR2 RAM,
Supports 24V Passive PoE
Press S Key & Set One unit to
Host (H) and the other to Client
(C) choose the same channel on
both units
Set-up Guide (24v OUTDOOR CPE)
access.
Showing
Signal Strength
Showing
IP Address

Advertisement

loading
Need help?

Need help?

Do you have a question about the PROception The Bridge and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blake UK PROception The Bridge

Summary of Contents for Blake UK PROception The Bridge

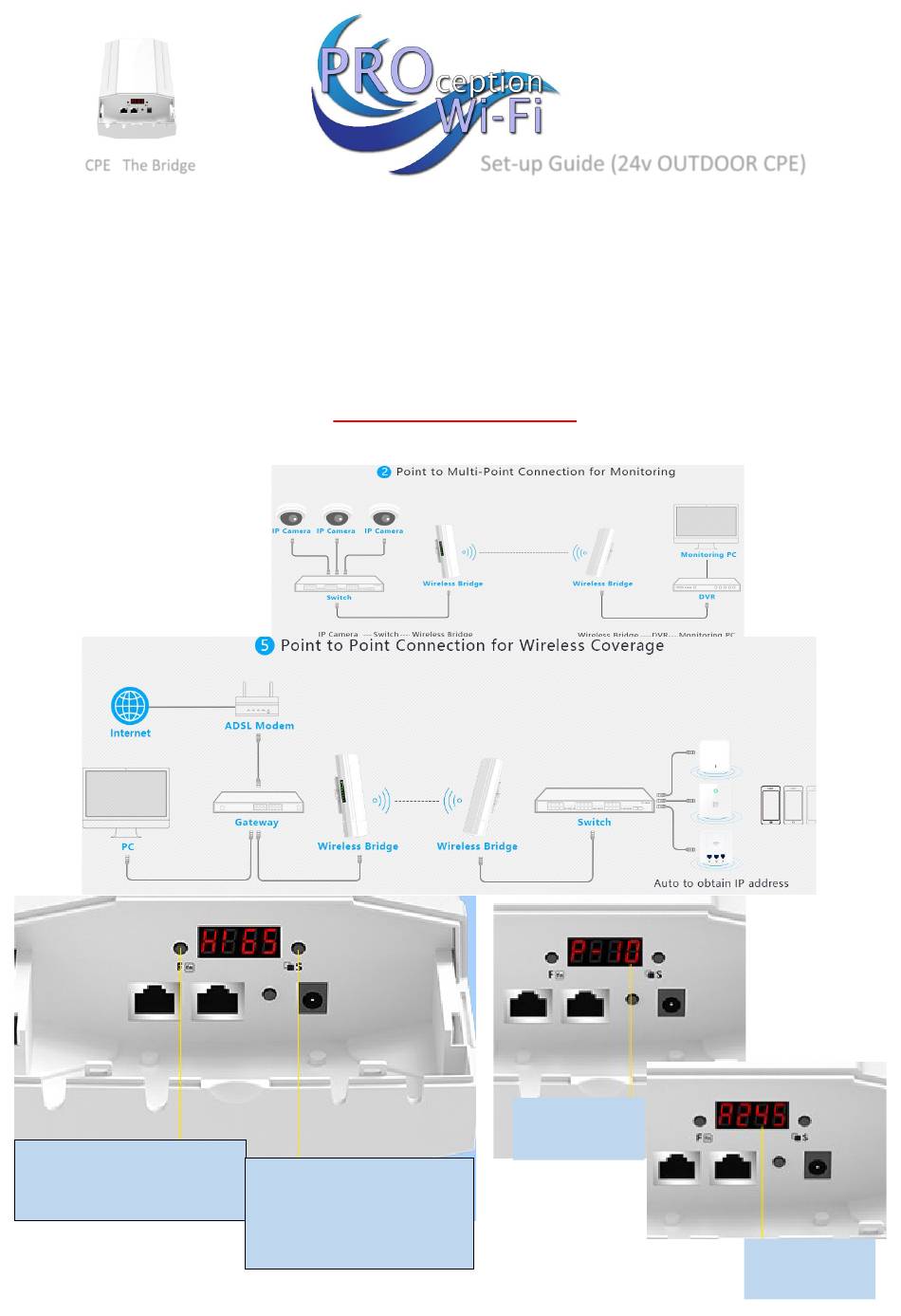

  • Page 1 Set-up Guide (24v OUTDOOR CPE) CPE The Bridge Outdoor CPE/Bridge with LED display, High power industrial 5G outdoor CPE/Bridge with the next generation 802.11ac Wi-Fi standard, 802.11 ac/b/g/n 5 GHz 900 Mbps, MIMO 15dBi Dual Polarized High Gain Antenna, 500mW RF Power, Multi-Mode, Support Multi SSID up to 4, PTP/PTMP, 5KM+ Distance Coverage.
  • Page 2 Set-up Guide (24v OUTDOOR CPE) CPE The Bridge Connecting to setup If you are connecting the outdoor CPE to the PC via the cable network socket or Wi-Fi (ProWiFi 5G) password 4wG7cZXd You will need to change the Network settings of your PC to static. The settings can be found in Set the IP of the computer to 192.168.188.250 Set the Subnet mask 255.255.255.0...
  • Page 3 Set-up Guide (24v OUTDOOR CPE) CPE The Bridge WEB GUI Configuration Once logged in the following home page will pop up as follow: Current mode: - This shows the current operating mode (Gateway in this example) Online users: - The number of users currently connected. Device description:- Change this to best describe the AP or perhaps it’s location) Uptime:- The amount of time the access point as has been running since last reboot CPU and memory usage:- A good indication of whether the AP is working too hard.
  • Page 4 Set-up Guide (24v OUTDOOR CPE) CPE The Bridge Gateway mode:- The AP will allocate IP numbers to the connected devices. This mode is default as it permits you to con- nect and setup the AP very easily. The AP could be left in this mode however, any connections to the AP (Wireless or not) will be allocated different IP addresses to the main network, potentially preventing communication between devices on the main network.
  • Page 5 Set-up Guide (24v OUTDOOR CPE) CPE The Bridge CPE Manager:- Show current state of a Wi-FI points and signal level reception in each case. Also shows the uptime, useful for fault diagnosis and the channel in use. MAC and IP address is also displayed, useful for AP identification. Status will show either Online Offline...
  • Page 6 Set-up Guide (24v OUTDOOR CPE) CPE The Bridge 2G and 5G WiFi:- Setup the SSID (Name of the WiFi), Bandwidth, channel, Encryption and password. This area also has a built-in WiFi analyser to look for the best channel to set the 2.4/5G signal so that it doesn’t clash with other channels. MAC ACL:- Access control lists (ACL) can control the traffic entering a network.
  • Page 7 Set-up Guide (24v OUTDOOR CPE) CPE The Bridge Country Region MUST be set to ETSI (For the UK channel allocation) Multicast Fast: - Provides the ability to minimize packet loss in a network when there is a link or node failure by enhancing, but not changing, multicast routing protocols.
  • Page 8 Set-up Guide (24v OUTDOOR CPE) CPE The Bridge Lan IP Mode:- GHCP is the default mode of IP allocation for binding and IP allocation all are passed through in this mode. Cloud server settings are for remote access to all ProWiFi devices using a Cloud service which is free for all ProWiFi products...
  • Page 9 Set-up Guide (24v OUTDOOR CPE) CPE The Bridge Backup:- Allows you to save the configuration file to your computer. Restore:- Restore the back of the configuration file (also useful for installing many access points with the same configuration). Reset Default:- Resets the access point back to the manufacturers default settings. Telnet:- Allows access to the devices Telnet port (port 22) As a security risk we suggest this is turned off unless specifically needed TIPS...
  • Page 10 Set-up Guide (24v OUTDOOR CPE) CPE The Bridge 24v “The Bridge” 900Mbps 11ac 5G High Power Outdoor CPE. The CPE are supplied with Jubilee clip for pole mounting but can be wall mounted with the two screw mounting holes. Power the CPE with a 24v 1A POE Power supply. (PROAPPSU11) Roughly align the CPE and power up.
  • Page 11 Set-up Guide (24v OUTDOOR CPE) CPE The Bridge...
  • Page 12 Set-up Guide (24v OUTDOOR CPE) CPE The Bridge...
  • Page 13 Proception The Bridge Set-up Guide (24v OUTDOOR CPE) CPE The Bridge Quick Set-up Guide (OUTDOOR CPE) TIPS System performance is better when distances is as close as possible Reliability is increased when there is a clear line of sight. The number of APs, location, size, and obstacles determine speed & reliability. Performance &...
