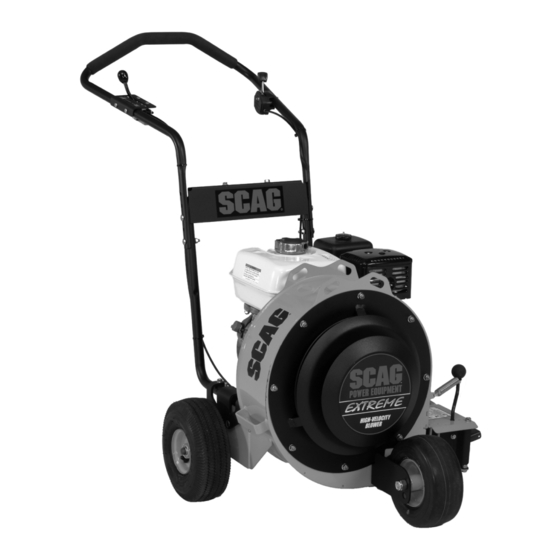

Scag Power Equipment EXTREME LBX15-BV10 Operator's Manual

Leaf blower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

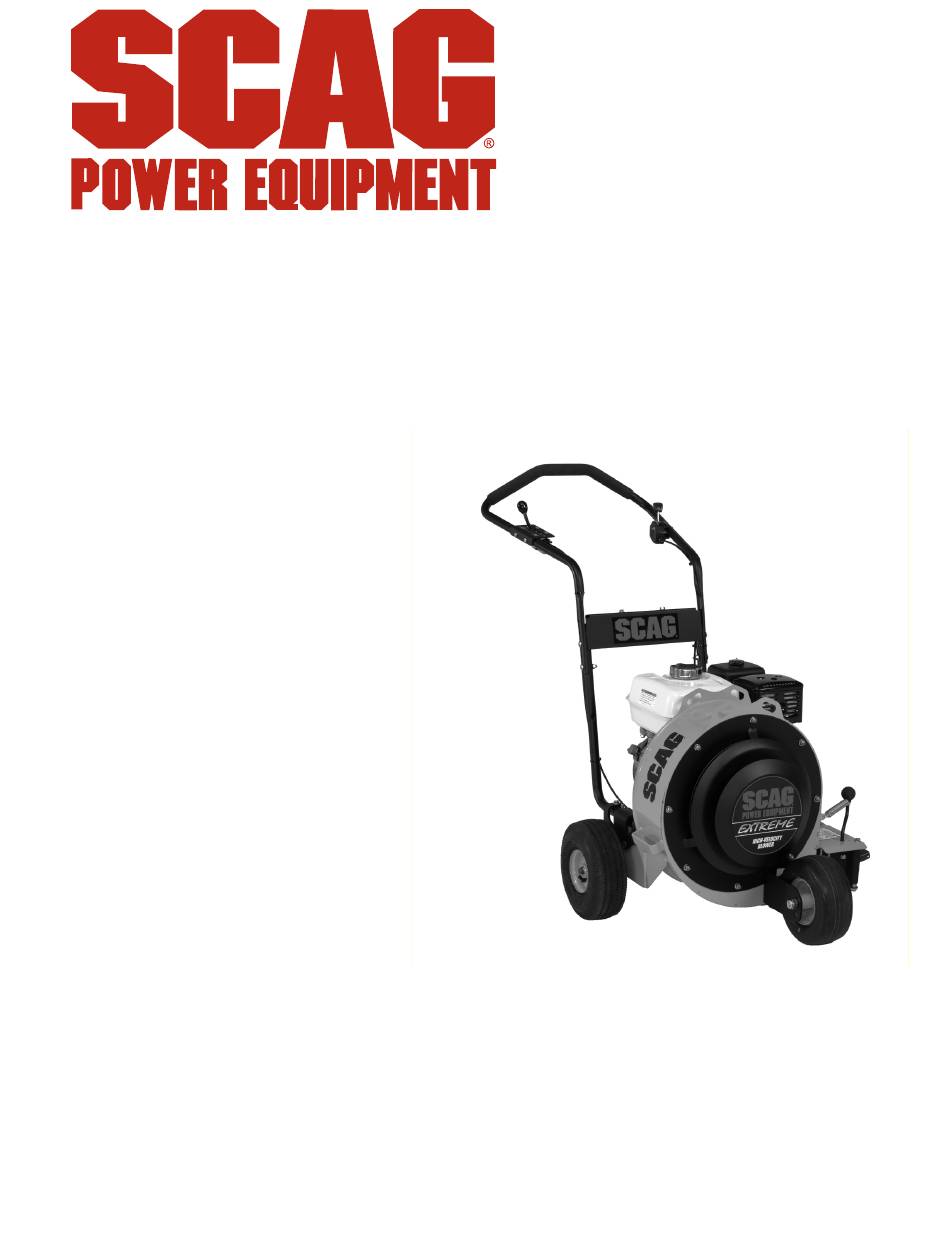

EXTREME
Leaf Blower
Model:
LBX15-BV10
LBX15-GX270
Congratulations on owning a Scag Power Equipment blower! This manual
contains the operating instructions and safety information for your Scag Power
Equipment blower. Reading this manual can provide you with assistance in
maintenance and adjustment procedures to keep your blower performing to
maximum efficiency. The specific models that this book covers are listed on
the inside cover. Before operating your blower, please read all the information
enclosed.
© 2019
Scag Power Equipment
Division of Metalcraft of Mayville, Inc.
OPERATOR'S
MANUAL
PART NO. 03444
PRINTED 1/2019
PRINTED IN USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXTREME LBX15-BV10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Scag Power Equipment EXTREME LBX15-BV10

Summary of Contents for Scag Power Equipment EXTREME LBX15-BV10

  • Page 1 Model: LBX15-BV10 LBX15-GX270 Congratulations on owning a Scag Power Equipment blower! This manual contains the operating instructions and safety information for your Scag Power Equipment blower. Reading this manual can provide you with assistance in maintenance and adjustment procedures to keep your blower performing to maximum efficiency.
  • Page 2 WARNING FAILURE TO FOLLOW SAFE OPERATING PRACTICES MAY RESULT IN SERIOUS INJURY OR DEATH. • Read this manual completely as well as other manuals that came with your blower. • ALWAYS FOLLOW OSHA APPROVED OPERATION. • Become familiar with the safe operation of the equipment, operator controls, and safety signs.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents SECTION 1 - GENERAL INFORMATION ...................1 1.1 INTRODUCTION ............................1 1.2 DIRECTION REFERENCE ...........................1 1.3 SERVICING THE ENGINE AND DRIVE TRAIN COMPONENTS ..............1 1.4 SYMBOLS ..............................2 SECTION 2 - SAFETY INFORMATION ..................3 2.1 INTRODUCTION ............................3 2.2 SIGNAL WORDS ............................3 2.3 BEFORE OPERATION CONSIDERATIONS ....................3 2.4 OPERATION CONSIDERATIONS ........................4...
  • Page 4 Table of Contents SECTION 5 - MAINTENANCE ....................12 5.1 MAINTENANCE CHART - RECOMMENDED SERVICE INTERVALS ............12 5.2 ENGINE OIL ...............................13 5.3 ENGINE FUEL SYSTEM ..........................13 5.4 ENGINE AIR CLEANER ..........................13 5.5 TIRES ................................13 SECTION 6 - ILLUSTRATED PARTS LIST ................14 SCAG APPROVED ATTACHMENTS AND ACCESSORIES.

  • Page 5: Section 1 - General Information

    They carry a full line of Scag Power Equipment service 1.2 DIRECTION REFERENCE parts.

  • Page 6: Symbols

    Section 1 1.4 SYMBOLS SYMBOL DESCRIPTION SYMBOL DESCRIPTION Choke Transmission On/Start Spring Tension on Idler Off/Stop Spinning Fan Blades Thrown Object Hazard Fast Slow Continuously Variable - Linear Pinch Point 481039S Keep Bystanders Away Read Operator's Manual...

  • Page 7: Section 2 - Safety Information

    A replacement manual is available from your authorized CAUTION Scag Power Equipment Dealer or by contacting Scag Power Equipment, Service Department at P.O. Box 152, Mayville, WI 53050 or contact us via the Internet at www.scag.com. The manual for this machine can be downloaded by using the model and serial number or use The signal word “CAUTION”...

  • Page 8: Operation Considerations

    Section 2 6. DO NOT wear loose fitting clothing. Loose clothing, 2.4 OPERATION CONSIDERATIONS jewelry, or long hair could get tangled in moving parts. Do not operate the machine wearing shorts; 1. Know the function of all controls and how to stop always wear adequate protective clothing including quickly.

  • Page 9: Maintenance Considerations & Storage

    Section 2 13. Use only in daylight or good artificial light. 2. Do not straighten or weld the blower fan. Replace damaged or failed blower fans. 14. Do not leave the machine unattended. 3. Disconnect spark plug wire(s) to prevent accidental 15.

  • Page 10: Safety And Instructional Decals

    Section 2 2.8 SAFETY AND INSTRUCTIONAL DECALS 484983 485073...

  • Page 11: Section 3 - Specifications

    SPECIFICATIONS 3.1 ENGINE General Type ....................Heavy Duty Industrial/Commercial Gasoline Engine Model: Scag Power Equipment Model LBX15-BV10 ............Briggs & Stratton Model # BV10 Scag Power Equipment Model LBX15-GX270 ..................Honda GX270 Displacement: Briggs & Stratton BV10 ............................305cc Honda GX270 ..............................270cc Cylinders ............................
  • Page 12 Section 3...

  • Page 13: Section 4 - Operating Instructions

    Section 4 OPERATING INSTRUCTIONS 3. Engine Throttle Control (Figure 4-1). Used to CAUTION control the engine speed. Pushing the lever forward increases engine speed. Pulling the lever back decreases engine speed. Full back position is the Do not attempt to operate this blower unless you IDLE position.

  • Page 14: Starting The Engine

    Section 4 4.3 STARTING THE ENGINE 4.5 PARKING THE BLOWER 1. Park the machine on a flat, level surface only. Do not CAUTION park the machine on an incline. 2. Slow the engine to idle speed. 3. Turn the ignition switch to the OFF position. DO NOT USE STARTING FLUIDS.

  • Page 15: Removing Clogged Material

    Section 4 4.7 REMOVING CLOGGED MATERIAL DANGER ROTATING FAN BLADES NEVER PUT YOUR HANDS INTO THE AIR INTAKE OR OUTLET FOR ANY REASON! Shut off the engine, remove the spark plug wire and only then use a stick or similar object to remove material if clogging has occurred.

  • Page 16: Section 5 - Maintenance

    Section 5 MAINTENANCE 5.1 MAINTENANCE CHART - RECOMMENDED SERVICE INTERVALS HOURS PROCEDURE COMMENTS BREAK-IN 100 200 500 (FIRST 10) Check all hardware for tightness S e e e n g i n e o p e r a t o r ' s Check engine oil level manual *Clean blower...

  • Page 17: Engine Oil

    Section 5 5.2 ENGINE OIL 4. Never remove the gas cap or add fuel with the engine running. Allow the engine to completely cool before fueling. A. CHECKING ENGINE CRANKCASE OIL LEVEL 5. Never fuel the machine indoors or in an enclosed trailer.

  • Page 18: Section 6 - Illustrated Parts List

    Section 6 ILLUSTRATED PARTS LIST 6.1 SCAG APPROVED ATTACHMENTS AND ACCESSORIES. Attachments and accessories manufactured by companies other than Scag Power Equipment are not approved for use on this machine.
  • Page 19 Section 6 NOTES...

  • Page 20: Extreme Blower Assembly

    Section 6 EXTREME BLOWER ASSEMBLY...
  • Page 21 Section 6 EXTREME BLOWER ASSEMBLY Ref. Ref. Part No. Description Part No. Description 462738 Handle, Upper w/Grip (incl. #2) 483453-25 Bearing, .375 ID 426211 Door, Forward Air Control 485343 Grip, 1" x 21-1/2" 04003-07 Bolt, Carriage 1/4-20 x 1/2" 483533 Knob 426350 Caster Bracket, Extreme...

  • Page 22: Extreme Blower Decals

    Section 6 EXTREME BLOWER DECALS 485073 486240 484983 485088 48314 - Blower Housing 486242 - Handle Bar Cover...
  • Page 23 Dealer without charge for parts and labor during the periods specified below. This warranty is limited to the original purchaser provided the product was purchased from an Authorized Scag Power Equipment Dealer and is not transferable. Proof of purchase will be required by the dealer to substantiate any warranty claims.
