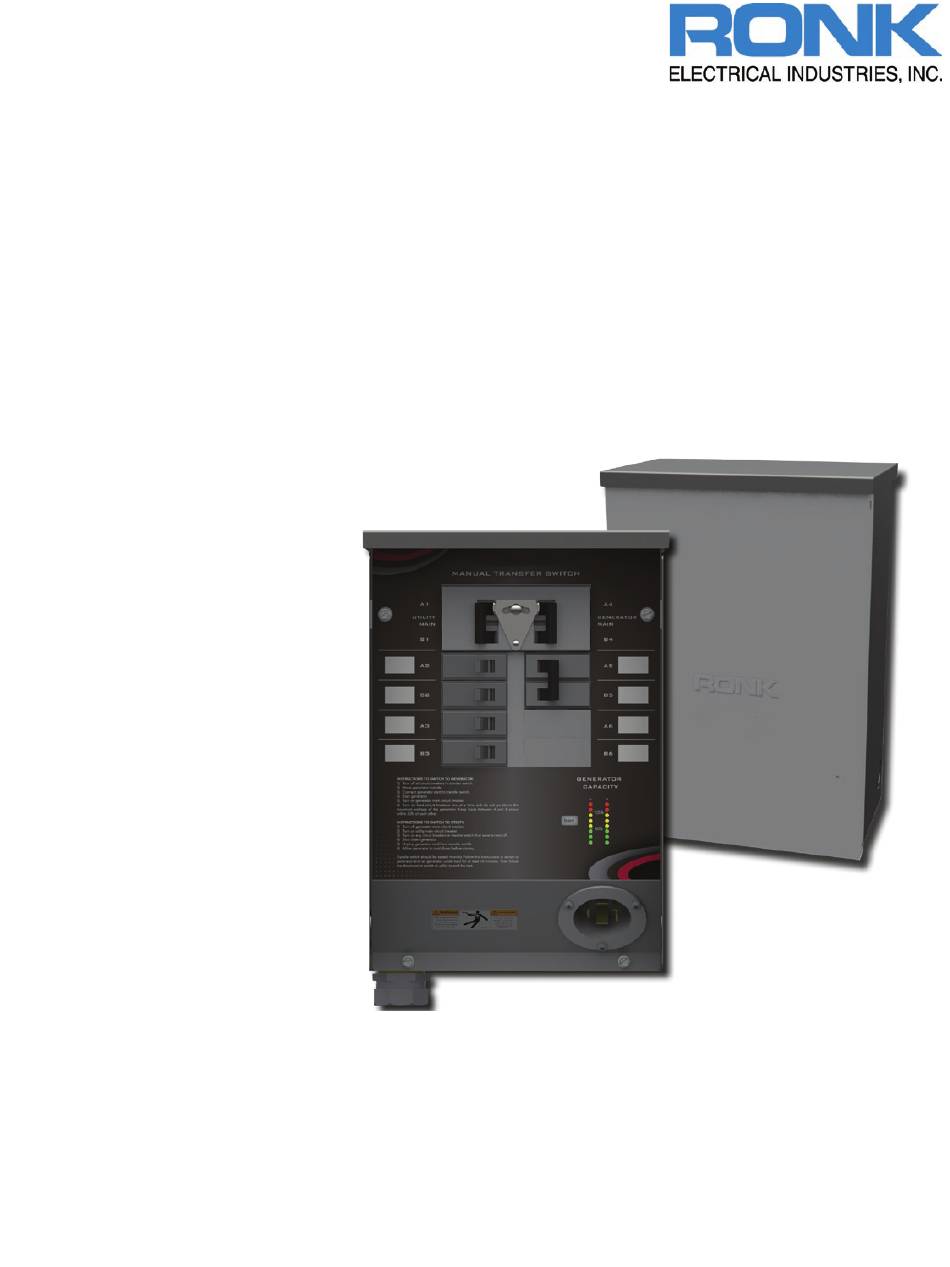

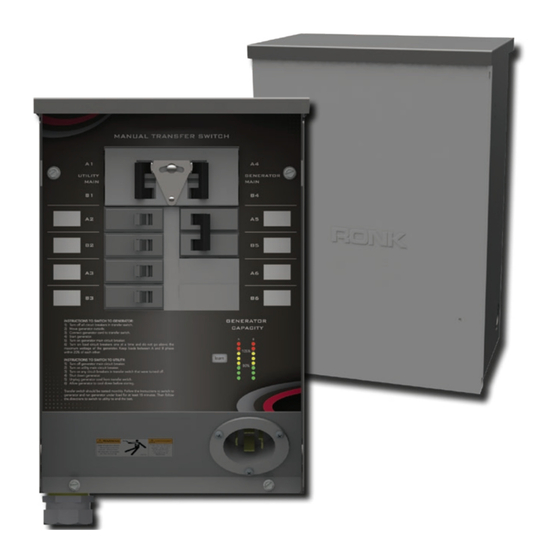

- Page 1 MANUAL TRANSFER SWITCH 30 & 50 AMP Owner’s & Installation Manual Model # MTS301SYS MTS301 MTS501SYS MTS501 RONK | PO Box 160, 106 East State Street, Nokomis, IL 62075-0160 | Toll-Free: 800-221-7665 | ronkelectrical.com...
- Page 2 – without the written permission of Ronk Electrical Industries, Inc. ORIGINAL INSTRUCTIONS (English): The English version of this manual controls over any error in or conflicting interpretation of any translation. Ronk Manual Transfer Switch Owner’s and Installation Manual...
-
Page 3: Table Of Contents
TRANSFER SWITCH OWNER WARRANTY POLICY ............. 19 WARRANTY PERIOD...........................19 Warranty Registration Process .......................19 About your warranty ........................19 REPLACEMENT PARTS IDENTIFICATION ..................20 SPECIFICATIONS ......................21 QUICK START GUIDE ...................... 22 INDEX .............................22 LEARN PROCESS ..........................23 FAQS ..............................23 Ronk Manual Transfer Switch Owner’s and Installation Manual... -
Page 4: Introduction
INTRODUCTION CONTACT INFORMATION Thank you for your purchase of a Ronk Manual Transfer Switch (MTS). This product is designed for There are several ways to contact us for answers to use with portable generators. This Manual Transfer questions you may have about your product. Contact... -
Page 5: Manual Transfer Switch
The equipment warranty is void unless the system is installed by a licensed electrician. All installations of Ronk Electrical Industries, Inc. systems must comply with all applicable codes, industry standards, and regulations. Your installer must check local codes and obtain permits before installing the system. -
Page 6: Important Safety Instructions
If you use a procedure, work method or operating technique that the manufacturer does not specifically recommend, work method or operating technique that you choose does not render the equipment unsafe. Ronk Manual Transfer Switch Owner’s and Installation Manual... - Page 7 Vous devez également vous assurer que la procédure, la méthode de travail ou la technique d’exploitation que vous choisissez ne rende pas l’équipement dangereux. Ronk Manual Transfer Switch Owner’s and Installation Manual...
-
Page 8: General Safety Precautions
Improper treatment of equipment can damage it and shorten its life. • Use equipment only for intended uses. • If you have questions about intended use, ask dealer or contact Ronk Electrical Industries, Inc. • Do not expose equipment to excessive moisture, dust, dirt, or corrosive vapors. - Page 9 • Demeurez alerte en tout temps lorsque vous travaillez sur cet équipement. Ne jamais travailler sur l’équipement si vous êtes fatigué physiquement ou mentalement. • Si les appareils branchés sont en surchauffe, éteignez-les et mettez leur disjoncteur / fusible. Ronk Manual Transfer Switch Owner’s and Installation Manual...
-
Page 10: Operation And Installation
10’ Cord 25’ Cord Breaker Generator Breakers harness Installed in Meter with power inlet Breaker Included Learn box with Function 50A Plug (Nema 3R) MTS501 MTS501L MTS501SYSX MTS501SYSX1C MTS501SYSX2C MTS501SYSL MTS501SYSL1C MTS501SYSL2C Ronk Manual Transfer Switch Owner’s and Installation Manual... -
Page 11: Unpacking And Handling
Subpanel. The MTS system can manually switch up to 8 AC weight of the MTS and adheres to all local codes circuits when operating on generator power. MTS301SYS • The enclosure must be installed with NEMA type 3R and MTS501SYS systems monitors and displays power... -
Page 12: Installation Diagram
All wiring and conduit sizes and types should be in accordance with federal, state and local codes, standards and regulations. Ronk Manual Transfer Switch Owner’s and Installation Manual... -
Page 13: Functional Testing
Making this change should only be done by a licensed electrician. Consult your generator manual for details on this procedure. Ronk Manual Transfer Switch Owner’s and Installation Manual... -
Page 14: Mounting Dimensions
MOUNTING DIMENSIONS Figure 3 – Mounting Dimensions Ronk Manual Transfer Switch Owner’s and Installation Manual... -
Page 15: Set Up
When the power reaches the next level it will turn solid and the next LED above will begin to flash at the slower rate. Ronk Manual Transfer Switch Owner’s and Installation Manual... -
Page 16: Setting The Learn Function
10KW. d. Release the Learn button and the LED’s will display the power with a 100% value at 10KW. Figure 5 – Starting learn Function Ronk Manual Transfer Switch Owner’s and Installation Manual... -
Page 17: Normal Operation
If the LED’s are not balanced then rewire the loads to balance the load on the generator. Figure 7 – A2, B2, A3& B3 Breakers with a balanced load A2, B2, A3, B3 A5/B5 Breakers with a balanced load Ronk Manual Transfer Switch Owner’s and Installation Manual... -
Page 18: Troubleshooting
Manual sequence. Contact a licensed electrician to inspect and clean the inside of the enclosure and other components of your home generator system at least once a year. Ronk Manual Transfer Switch Owner’s and Installation Manual... -
Page 19: Transfer Switch Owner Warranty Policy
Ronk’s judgment, to adversely affect the unit’s performance and reliability. This warranty also does not cover normal maintenance such as adjustments, cleaning and fuse replacement. -
Page 20: Replacement Parts Identification
WARRANTY REPLACEMENT PARTS IDENTIFICATION For replacement parts please reference the Ronk part number shown; 301SYS / 501SYS DEAD FRONT 301 / 501 DEAD FRONT MANUAL TRANSFER SWITCH REPLACEMENT PARTS ITEM DESC. PART # FRONT Z1169940 301 RATING LABEL Z1165840 501 RATING LABEL... -
Page 21: Specifications
Service entrance disconnect Maximum Load Current Rated AC VoltageA Poles Frequency Unit (Height x Width x Depth) 15.25” x 10.25” x 6.63” Shipping Carton 16.25” x 11.25” x 7.75” Weight 23 lbs. Ronk Manual Transfer Switch Owner’s and Installation Manual... -
Page 22: Quick Start Guide
MTS that will allow you to calibrate the switch for the size of generator you are The digital monitor on the Ronk Manual Transfer Switch is an added tool that enables the user to safely use their using. -
Page 23: Learn Process
QUICK START GUIDE The digital monitor on the Ronk Manual Transfer Switch is an added tool that enables the user to safely use their portable generator and reduce the chance of an overload condition. To effectively utilize this option we have included a learn function in the MTS that will allow you to calibrate the switch for the size of generator you are using. - Page 24 MANUAL TRANSFER SWITCH RONK | PO Box 160, 106 East State Street, Nokomis, IL 62075-0160 | Toll-Free: 800-221-7665 | ronkelectrical.com UG-004_2-2019...
