RCS OMEGA-3v7 Full Instruction Manual

RCS OMEGA-3v7 Full Instruction Manual

Electronic speed controller

Advertisement

Quick Links

P.O Box 578 Casino, NSW, 2470 Australia
Phone: International ++614 2902 9083
Australia (04) 2902 9083
Website:
E mail:
Info@rcs-rc.com

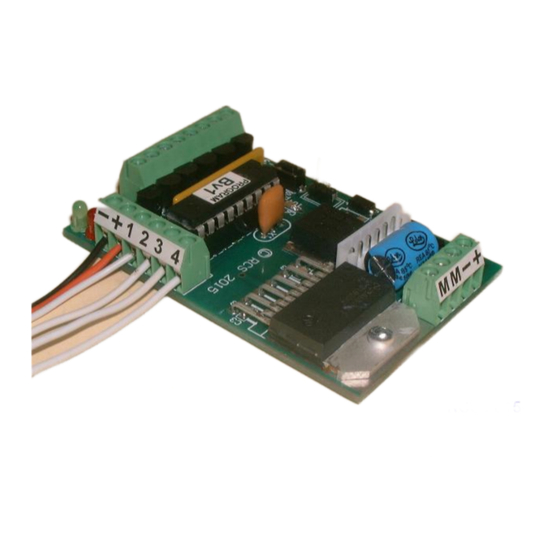

OMEGA-3v7
Electronic Speed Controller
FULL INSTRUCTION MANUAL.
THESE INSTRUCTIONS REFER TO OPERATING PROGRAM Av1.
USED WITH ANY STICK TYPE DSM2/DSMX TRANSMITTER OR: RCS DSMX TX HANDPIECES
#OMEGA-3v7
HAS BEEN CALIBRATED AT THE FACTORY. ONCE RX IS "BOUND" TO TX THE SYSTEM IS READY TO USE AS IS.
THERE ARE MANY FEATURES WITHIN THE SYSTEM WHICH CAN BE PROGRAMMED. YOU WILL NEED TO DOWNLOAD THE FULL
INSTRUCTION MANUAL FROM THE RCS WEBSITE. THE PUSHBUTTON ON THE ESC PCB IS ONLY USED FOR PROGRAMMING.
#OMEGA-3v7
THE
THE FOLLOWING MAXIMUM VOLTAGES MENTIONED ARE THE
USE MIN 14v – 20v FOR THE #OMEGA-3v7. USE MIN 14v – 30v FOR THE
We tested this system three times during manufacture. It was working normally when it left our factory.
You will supply a locomotive or trail car, the 14 – 20 volt traction batteries (depending on ESC), a fuse,
ON-OFF switch and wires where necessary, to connect the ESC to the battery and motor(s).
Where soldering is necessary, we recommend a low wattage soldering iron and resin core solder.
TO AVOID CONFUSION WITH OTHER OPERATORS, WE SUGGEST YOU MARK THE TX TO
DO NOT ATTEMPT TO ALTER THE TUNING OF THE RADIO EQUIPMENT.
DO NOT USE RADIO CONTROL EQUIPMENT IN THUNDERSTORMS.
CHILDREN UNDER 12:
http://rcs-rc.com
INSTRUCTIONS.
DO NOT PRESS THE ESC BUTTON DURING OPERATION.
DO NOT CONNECT TO MAINS POWER (110 – 240V AC).
CAN BE USED WITH ANY FILTERED DC SUPPLY SUCH AS BATTERY POWER.
THEY HAVE CONSTANT BRIGHTNESS DIRECTIONAL LIGHTS & 4 SOUND TRIGGERS.
CHARGED BATTERIES CAN & DO EXCEED THE
If damage in transit has occurred, please return to place of purchase for attention.
THE ESC IS GUARANTEED FOR ONE YEAR.
The solid state motor driver output IC is guaranteed for life.
SHOW WHICH LOCO IT OPERATES.
ADULT SUPERVISION RECOMMENDED DURING USE.
PROVIDED IN INSTRUCTIONS.
Page # 1 Introduction.
Page # 2 Installing the #
Page # 3 Installing RX into the # OMEGA-3v7.
Page # 4 Setting up the system.
Page # 5 Calibrating the system.
Page # 6 Programming the system.
Page # 7 Operating the System.
Page # 8 MU'ing Consists of Locos.
PLEASE NOTE. PDF WIRING INSTRUCTIONS ARE HERE:
http://www.rcs-rc.com/pages/instructions
Thank you for purchasing this Microprocessor based Electronic
THESE INSTRUCTIONS REFER SPECIFICALLY FOR USE WITH
THE
RCS
TX-4, TX-8, TX-7 & TX-9 HANDPIECES.
THERE ARE SEPARATE INSTRUCTIONS FOR USE WITH ANY 2.4
GHz R/C WITH 4 OR MORE CHANNELS.
THOSE OTHER INSTRUCTIONS REFER SPECIFICALLY TO THE
SPEKTRUM DX5e 2.4 GHz R/C.
THEY ALSO APPLY TO THE DX4e, DX6i & PLANET T5.
CANNOT MIX BRANDS OF R/C.
RCS #OMEGA-3v7
THE
LEADS TO PLUG INTO ANY DSM2 or DSMX RX.
OR; USE ANY BRAND OF R/C USING THE FOUR SERVO LEADS
CONNECTED TO THE 6 WAY SCREW TERMINAL ON THE ESC
AND PLUGGED INTO THE APPROPRIATE CONNECTIONS ON
THE RX.
NOMINAL
CAUTION
TABLE OF CONTENTS
OMEGA-3v7
Binding the RX.
Speed & Direction control.
Using Sound Trigger functions.
Trouble shooting.
Speed Control
(ESC)
R/C system.
SYSTEM IS IN ONE PART WITH SERVO
VOLTAGE & TAKE INTO ACCOUNT THAT FULLY
NOMINAL
VOLTAGE.
#OMEGA-3v7
high voltage version.
ESC.
N.B. YOU

Advertisement

loading
Need help?

Need help?

Do you have a question about the OMEGA-3v7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RCS OMEGA-3v7

  • Page 1 THERE ARE MANY FEATURES WITHIN THE SYSTEM WHICH CAN BE PROGRAMMED. YOU WILL NEED TO DOWNLOAD THE FULL INSTRUCTION MANUAL FROM THE RCS WEBSITE. THE PUSHBUTTON ON THE ESC PCB IS ONLY USED FOR PROGRAMMING. DO NOT PRESS THE ESC BUTTON DURING OPERATION.
  • Page 2 - 2 - #OMEGA-3v7 INSTALLING THE ESC. #OMEGA-3v7 ESC uses any DSM2/DSMX 6 x Channel RX’s including our own “Auto Binding” DSM2-EM(AB) Rx & SPEKTRUM or the ORANGE brand from Hobby King. Servo leads are supplied for connecting the ESC to the RX.
  • Page 3: Installation Options

    ESC can only be used with battery power as it comes. Ensure the battery pack is fully charged before use. Contact RCS for information on how to use the ESC with a constant track voltage. N.B. The absolute minimum voltage is 14 volts. If you use any less voltage the system will still respond, as in the LED’s will light and respond to direction change, but the motor drive output will not work.
  • Page 4 - 4 - #OMEGA-3v7 SETTING UP THE ESC. RCS TX-4, TX-8, TX-7 & TX-9 THESE INSTRUCTIONS REFER TO THE 2.4 GHz 5 CHANNEL R/C. FOR BINDING, CALIBRATING & USING WITH A PLANET OR SPEKTRUM STICK RADIO REFER TO: http://www.rcs-rc.com/store/PDF/Instructions/Full%20instructions/OMEGA-3v7.pdf Unless the TX and RX have already been bound and the system calibrated prior to using this system, there are two procedures that must be carried out by the operator, 1.
  • Page 5 - 5 – 2. CALIBRATION. All RCS # OMEGA-3v7 systems are pre-calibrated when sent out, using one of our own TX handpieces. Please test the system before re-calibrating it. If you are going to use a stick type TX, the end points may be different so re-calibration may be necessary.
  • Page 6 - 6 - 3. PROGRAMMING WITH TX-1, TX-7 & TX-9. Operating features of t #OMEGA-3v7 system can be adjusted from the TX using the ESC pushbutton. Programming can only take place when the system is in neutral. 3.1 START VOLTAGE. This feature is designed to equalise the starting voltage of dissimilar locos.
  • Page 7 - 7 - 3. PROGRAMMING WITH TX-4, TX-8 & TX-10. Operating features of t #OMEGA-3v7 system can be programmed from the TX using the ESC pushbutton. Programming can only take place when the system is in neutral. 3.1 START VOLTAGE. This feature is designed to equalise the starting voltage of dissimilar locos.
  • Page 8 1. Sound powered by a separate battery. Connect the grounds on both the ESC and sound system. 2. Sound powered by ESC. Already has a common ground. #OMEGA-3v7 ESC has 4 x sound triggers. Each function is controlled by the four small push buttons on the TX- 8, TX-10, TX-7 &...
  • Page 9 & then all lights will go to solid ON. Although designed for use with a spring loaded direction change switch, the OMEGA-3v7 can also be used with TX handpieces designed for live Steam locos such as the TX-3, TX7 & TX-9. See their instructions for how to operate.
  • Page 10: Troubleshooting

    - 10 - #OMEGA-3v7 ESC MU’ing LOCO CONSISTS. MULTIPLE LOCOS IN A CONSIST. #OMEGA-3v7 ESC is capable of MU’ing multiple locos into one consist of locos. If you intend to do this often we strongly recommend you use the # DSM2-EM(AB) in all locos. These bind automatically which is much easier to use than a binding plug.
