RCS OMEGA-3v5s Instruction Manual

Electronic speed controller

Advertisement

Quick Links

P.O Box 578 Casino, NSW, 2470 Australia
Phone: International ++614 2902 9083
Australia (04) 2902 9083
Website:
E mail:
Info@rcs-rc.com
OMEGA-3v5s
Electronic Speed Controller
FULL INSTRUCTION MANUAL.
THESE INSTRUCTIONS REFER TO OPERATING PROGRAMS
AN ESC WITH OPERATING PROGRAM AV1 CAN BE USED WITH ANY TYPE OF DSM2 TRANSMITTER.
#OMEGA-3v5s
HAS BEEN CALIBRATED AT THE FACTORY. ONCE RX IS "BOUND" TO TX THE SYSTEM IS READY TO USE AS IS.
THERE ARE MANY FEATURES WITHIN THE SYSTEM WHICH CAN BE PROGRAMMED. YOU WILL NEED TO DOWNLOAD THE FULL
INSTRUCTION MANUAL FROM THE RCS WEBSITE. THE PUSHBUTTON ON THE ESC PCB IS ONLY USED FOR PROGRAMMING.
#OMEGA-3v5s
THE
THE FOLLOWING MAXIMUM VOLTAGES MENTIONED ARE THE
We tested this system three times during manufacture. It was working normally when it left our factory.
You will supply a locomotive or trail car, the 14 – 20 volt traction batteries (depending on ESC), a fuse,
ON-OFF switch and wires where necessary, to connect the ESC to the battery and motor(s).
Where soldering is necessary, we recommend a low wattage soldering iron and resin core solder.
TO AVOID CONFUSION WITH OTHER OPERATORS, WE SUGGEST YOU MARK THE TX TO
DO NOT ATTEMPT TO ALTER THE TUNING OF THE RADIO EQUIPMENT.
DO NOT USE RADIO CONTROL EQUIPMENT IN THUNDERSTORMS.
CHILDREN UNDER 12:
http://rcs-rc.com
INSTRUCTIONS.
DO NOT PRESS THE ESC BUTTON DURING OPERATION.
DO NOT CONNECT TO MAINS POWER (110 – 240V AC).
CAN BE USED WITH ANY FILTERED DC SUPPLY SUCH AS BATTERY POWER.
THEY HAVE CONSTANT BRIGHTNESS DIRECTIONAL LIGHTS & 2 SOUND TRIGGERS.
CHARGED BATTERIES CAN & DO EXCEED THE
USE 14v – 20v FOR THE #OMEGA-3v5s. A high voltage version is available.
If damage in transit has occurred, please return to place of purchase for attention.
THE ESC IS GUARANTEED FOR ONE YEAR.
The solid state motor driver output IC is guaranteed for life.
SHOW WHICH LOCO IT OPERATES.
ADULT SUPERVISION RECOMMENDED DURING USE.
PROVIDED IN INSTRUCTIONS.
Page # 1 Introduction.
Page # 2 Installing the #
Page # 3 Installing RX into the # OMEGA-3v5s.
Page # 4 Setting up the system.
Page # 5 Calibrating the system.
Page # 6 Programming the system.
Page # 7 Operating the System.
Page # 8 MU'ing Consists of Locos.
PLEASE NOTE. PDF WIRING INSTRUCTIONS ARE HERE:
http://www.rcs-rc.com/pages/instructions
Thank you for purchasing this Microprocessor based Electronic
THESE INSTRUCTIONS REFER SPECIFICALLY FOR USE WITH
THE
THERE ARE SEPARATE INSTRUCTIONS FOR USE WITH ANY 2.4
GHz R/C WITH 4 OR MORE CHANNELS.
THOSE OTHER INSTRUCTIONS REFER SPECIFICALLY TO THE
THEY ALSO APPLY TO THE DX4e, DX6i & PLANET T5.
THE
RCS #OMEGA-3v5
SERVO LEADS WHICH PLUG INTO ANY DSM2 COMPATIBLE
OR; USE ANY BRAND OF R/C WITH THE ADDITION OF FOUR
SERVO LEADS CONNECTED TO THE 6 WAY SCREW
TERMINAL ON THE ESC AND PLUGGED INTO THE
APPROPRIATE CONNECTIONS ON THE RX.
NOMINAL
CAUTION
TABLE OF CONTENTS
OMEGA-3v5s
Binding the RX.
Speed & Direction control.
Using Sound Trigger functions.
Trouble shooting.
Speed Control
(ESC)
R/C system.
RCS

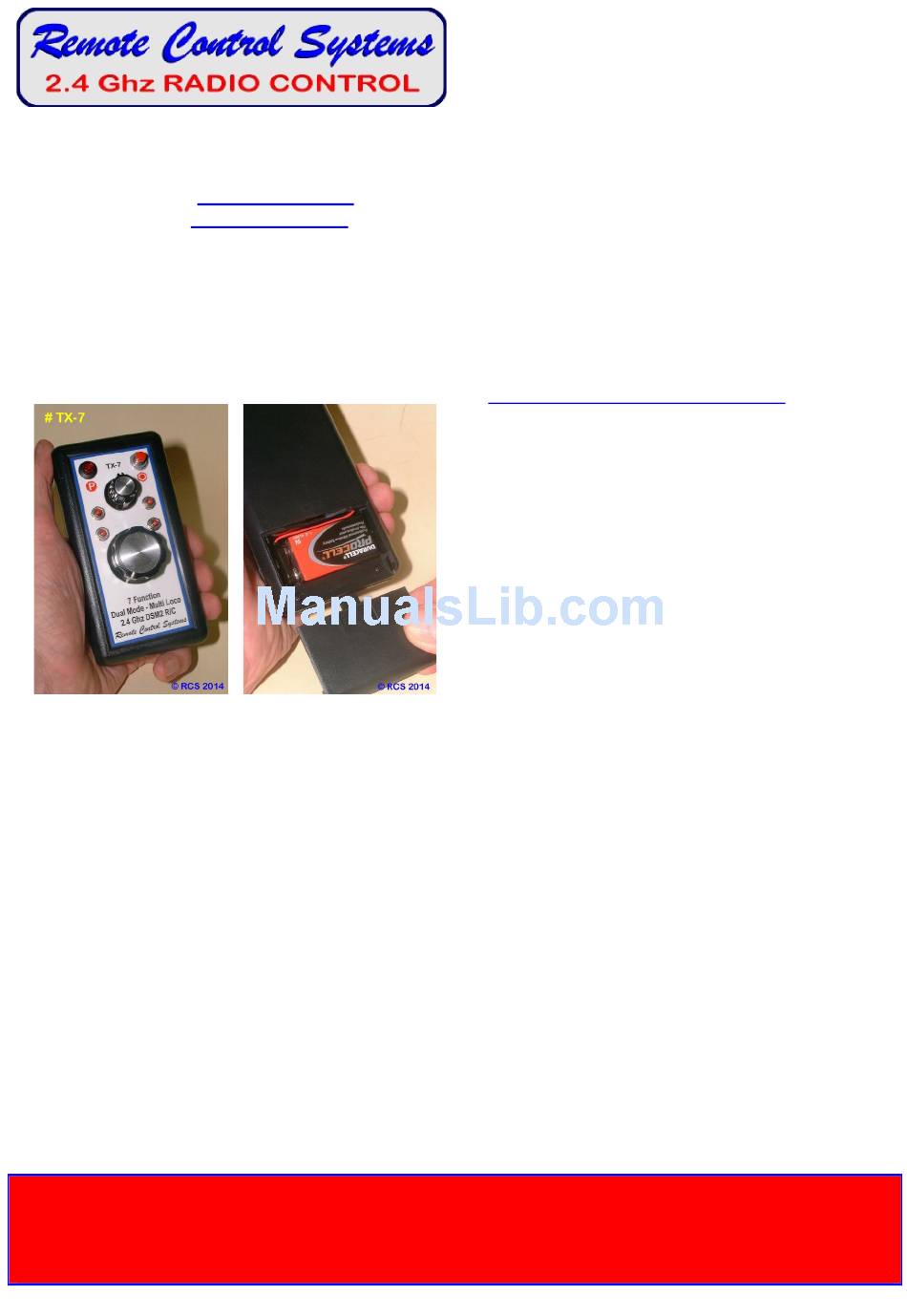

TX-3, TX-5 and TX-7 HANDPIECES.
SPEKTRUM DX5e 2.4 GHz R/C.
YOU CANNOT MIX BRANDS OF R/C.
SYSTEM IS IN ONE PART WITH
RX.
Av1
VOLTAGE & TAKE INTO ACCOUNT THAT FULLY
NOMINAL
VOLTAGE.
ESC.
N.B.
& Bv1.

Advertisement

loading
Need help?

Need help?

Do you have a question about the OMEGA-3v5s and is the answer not in the manual?

Questions and answers

Summary of Contents for RCS OMEGA-3v5s

  • Page 1 THERE ARE MANY FEATURES WITHIN THE SYSTEM WHICH CAN BE PROGRAMMED. YOU WILL NEED TO DOWNLOAD THE FULL INSTRUCTION MANUAL FROM THE RCS WEBSITE. THE PUSHBUTTON ON THE ESC PCB IS ONLY USED FOR PROGRAMMING. DO NOT PRESS THE ESC BUTTON DURING OPERATION.
  • Page 2 & sound trigger outputs from momentary to latch ON – OFF. If you need to calibrate the system you must download the full instruction manual from the RCS website. See URL on page # 1.
  • Page 3 ESC can only be used with battery power as it comes. Ensure the battery pack is fully charged before use. Contact RCS for information on how to use the ESC with a constant track voltage. N.B. The absolute minimum voltage is 12 volts. If you use any less voltage the system will still respond, as in the LED’s will light and respond to direction change, but the motor drive output will not work.
  • Page 4 - 4 - #OMEGA-3v5s SETTING UP THE ESC. RCS TX-3, TX-5 & TX-7 THESE INSTRUCTIONS REFER TO THE 2.4 GHz 5 CHANNEL R/C. ALL THE ABOVE TX’s USE THE SAME BINDING PROCEDURE. FOR BINDING, CALIBRATING & USING WITH A PLANET OR SPEKTRUM STICK RADIO REFER TO: http://www.rcs-rc.com/app/webroot/PDF/OMEGA-3/ESC-TEXT/OMEGA-3v3.pdf...
  • Page 5 - 5 – 2. CALIBRATION. All RCS # OMEGA-3v5s systems are pre-calibrated when sent out, using one of our own TX handpieces. Please test the system before re-calibrating it. If you are going to use a stick type TX, the end points may be different so re-calibration may be necessary.
  • Page 6 Operating features of t system can be programmed from the TX using the ESC pushbutton. #OMEGA-3v5s Programming can only take place when the system is in neutral. 3.1 START VOLTAGE. This feature is designed to equalise the starting voltage of dissimilar locos.
  • Page 7 1. Sound powered by a separate battery. Connect the grounds on both the ESC and sound system. 2. Sound powered by ESC. Already has a common ground. #OMEGA-3v5s ESC has 4 x sound triggers controlled by the four small push buttons on the TX-7 handpiece.
  • Page 8: Troubleshooting

    - 8 - #OMEGA-3v5s ESC MU’ing LOCO CONSISTS. MULTIPLE LOCOS IN A CONSIST. #OMEGA-3v5s ESC is capable of MU’ing multiple locos into one consist of locos. If you intend to do this often we strongly recommend you use the # DSM2-EM(AB) in all locos. These bind automatically which is much easier to use than a binding plug.
