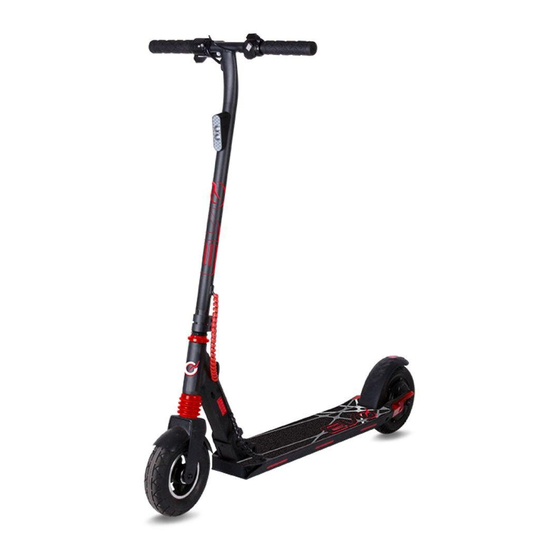

VT5 E-SCOOTER
INSTRUCTION MANUAL
Please read and understand this entire manual before assembly or use
IMPORTANT:
Please contact our customer service number if any enquiries:
www.htigroup.co.uk
evo-support@htigroup.co.uk
0300 303 5544
Save all packaging material until assembly is completed.
HTI Group, Eastham House,
Copse Road, Fleetwood,
FY7 7NY, UK
HTI EU Authorised Representative
The Merrion Buildings -
Iconic Offices, 18-20 Merrion Street,
Dublin 2, D02 XH98, Ireland
14
+
Scan the QR code
to learn more
about this
lithium scooter

Advertisement

loading
Need help?

Need help?

Do you have a question about the VT5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Evo VT5

Summary of Contents for Evo VT5

  • Page 1 VT5 E-SCOOTER INSTRUCTION MANUAL Please read and understand this entire manual before assembly or use IMPORTANT: Please contact our customer service number if any enquiries: www.htigroup.co.uk Scan the QR code to learn more evo-support@htigroup.co.uk about this 0300 303 5544 lithium scooter Save all packaging material until assembly is completed.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS P . 1-3 SAFETY NOTICE P . 4 ABOUT YOUR SCOOTER, PARTS LIST & OPERATING RANGE P . 5 GENERAL WARNINGS & PRODUCT DIAGRAM P . 6 ASSEMBLY & SET UP P . 7 FOLDING INSTRUCTION P . 8 CHARGING YOUR LITHIUM SCOOTER P .

  • Page 3: Safety Notice

    SAFETY NOTICE 6. Do not go over bumps that are steeper than 3 cm. 7. For your driving safety, always keep safe speed. This may cause the scooter to overturn and cause Avoid using the scooter at night. injury to the user or damage the scooter. Bumps or potholes less than 3cm should also be avoided as much as possible.
  • Page 4 SAFETY NOTICE >100kg 12. In severe weather such as rain, snow, or strong 13. The user should use this product in accordance winds, please avoid riding as much as possible to with the relevant instructions in this product avoid possible damage. During wet weather, manual, and not exceed the load that the extension of braking distance should be reserved.
  • Page 5 ABOUT YOUR NEW ELECTRIC LITHIUM SCOOTER Thank you for purchasing our product. Keep these points in mind as you read this guide: Rated Power(W): 350W Material: Steel & Alu. Materials Front Wheel Size: 8inch Folded Size(mm): Motor: Rear Wheel Size: 8inch 1070*435*350mm &...
  • Page 6 WARNING! FOR SAFETY, PLEASE READ ALL WARNINGS AND ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE. ADULT ASSEMBLY REQUIRED The product contains small parts, which are for adult assembly only. Keep children away when assembling. • PREVENT FIRE AND ELECTRIC SHOCK: - Do not charge near heat or flammable materials.

  • Page 7: Assembly & Set Up

    ASSEMBLY & SET UP 1. Unfold Folding lever ● Lift up the foldng lever. Push up the steering column until it locks. 2. Handlebars Assembly Handlebar Handlebar Small hex key Small hex key ● Adjust and fix the throttle and electric brake with small hex key provided.

  • Page 8: Folding Instruction

    FOLDING INSTRUCTION 1. Fold Folding lever ● Lift down the folding lever BY HAND only. Push down the steering column slowly and mind your head when folding up the scooter. 2. Unfold ● Lift up the folding lever. Push up the steering column until it locks. 3.

  • Page 9: Charging Your Lithium Scooter

    CHARGING YOUR LITHIUM SCOOTER WARNING! • This product has CHARGING PROTECTION: When charging, all the functions will be cut off! ● Power off the scooter. Set up the scooter in rest mode and let it rest on ground and open charging port cover.

  • Page 10: How To Operate Your Lithium Scooter

    HOW TO OPERATE YOUR LITHIUM SCOOTER ASSEMBLY STEPS Lcd Control Panel Display Battery level Speed Shift up gear button On / Off button Gear Shift down gear button Mileage Electric brake lever Throttle POWER ON / OFF Press and hold the On / Off button for 2 seconds to POWER ON the scooter. Press and hold the On / Off button for 2 seconds again to POWER OFF the scooter.

  • Page 11: Lcd Control Panel Instruction

    LCD CONTROL PANEL INSTRUCTION Press and hold the power button for 2 seconds to TURN POWER ON ON the control panel. Km/h TIME Press and hold the power button for 2 seconds to TURN POWER OFF OFF the control panel. HEADLIGHT When the scooter is powered on, press and hold "Shift up gear"...

  • Page 12: Warning

    WARNING! A GUIDE TO SAFE SCOOTING: 1. This is an electric lithium scooter designed for a single rider only. 2. Ensure all locking devices are engaged before using the scooter, EN14619, Class A. 3. Please add oil for lubrication periodically and replace bearings ( centre of front wheel ) when worn. 4.
  • Page 13 WARNING! 1. Only use the product in accordance with local regulations. 2. It is designed for persons aged 14 or above. 3 Protective helmet is strongly recommended. 4. WARNING! Never use the product close to a water source. 5. WARNING! Stop using the product when damaged. 6.
  • Page 14 MAINTENANCE • If the tyres are underinflated, release the valve cap and use a pump to inflate the tyres to not more than 36PSI (250 Kpa). WARNING! - For the purpose of recharging the battery, only use the detachable supply unit provided with this product (Charger model: FY-4202000 ).

  • Page 15: Troubleshooting Guide

    • Due to general wear and tear, occasionally you may need to purchase spare parts to keep your scooter in peak condition. It is important to use the correct spare parts for your particular model ie. VT5 E-SCOOTER, to purchase them directly from us.
  • Page 16 WARRANTY STATEMENT WARRANTY Here at HTI Group, we offer a limited warranty for a period of 12 months from date of purchase. This Limited Warranty does not cover normal wear and tear, tyres and related parts, or any damage, failure or loss caused by improper assembly, maintenance, storage or mis-use.
