Summary of Contents for Cofko LLC. BC-9000

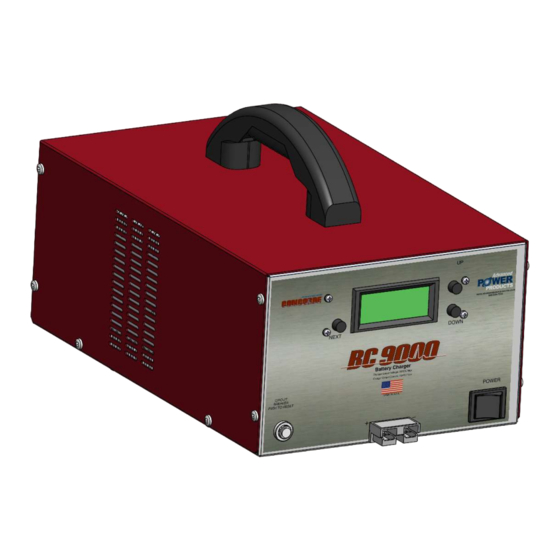

- Page 1 BC-9000 BATTERY CHARGER Operations Manual COFKO ELECTRONICS LLC COPYRIGHT © 2020 P/N 4169-20...
-
Page 2: Unpacking
Unpacking As you unpack your new BC-9000 battery charger, inspect the BC-9000 for signs of shipping damage. If shipping damage is present, stop and contact the shipping company for damage claims information. The box should contain the following items: One (1) each-Part no. 4169 BC-9000 Battery Charger/ DC Power Supply One (1) each-Part no. -
Page 3: Introduction
Introduction Congratulations and thank you for purchasing your BC-9000 battery charger. The BC-9000 has been designed to provide the operator with accurate battery charging and ease of operation. The BC-9000 features: Universal AC power input 100-264VAC 1 PH (47 to 63Hz) NEMA 5-15P AC Plug Adjustable Charge Output Voltage from 3.0 to 36.0 Vdc. -
Page 4: Table Of Contents
Table of Contents Unpacking Introduction Table of Contents History of Revisions Battery Handling and BC-9000 Operations Precautions 4,5,6 BC-9000 Operation Battery Charging AGM Lead Acid Battery Deep Discharge Recovery Mode Power Supply Mode 9,10 BC-9000 Care BC-9000 Technical Data 10,11... -
Page 5: History Of Revisions
Battery Handling and BC-9000 Operations Precautions Your new BC-9000 battery charger has been designed with operator safety as a function of its design, construction, and operation. Understanding how to safely operate the BC-9000 is important. Failure to follow the operation and safety guidelines when using the BC-9000 can result in personal injury to the operator and damage to the BC-9000. - Page 6 Look for this symbol to identify Safety and Danger precautions. Be Alert- Your safety is involved! Personal injury or equipment damage can occur if guidelines are not followed. Precautions 1. CAUTION: Aircraft batteries are certified to have a certain minimum capacity for emergency operations in the event of an electrical generator system failure.
-
Page 7: Bc-9000 Operation
Configure 1. Set the BC-9000 battery charger on a stable suitable surface. Plug the AC cord located at the rear of the BC-9000 into an AC power outlet (Note: The BC-9000 comes with a NEMA 5 -15 connector). Set the BC-9000 power switch to the ON position. -
Page 8: Battery Charging
1. Set the BC-9000 on a stable suitable surface. 2. Plug the AC cord located at the rear of the BC-9000 into an AC power outlet. Connect the DC cord (4169-50) to the BC-9000. (Note: The BC-9000 comes with a NEMA 5 -15P connector). -
Page 9: Agm Lead Acid Battery Deep Discharge Recovery Mode
999 minutes. Press the NEXT button to advance the display menu. b. The BC-9000 will display CHARGE Step 1 Volts? Use the UP or DOWN button to adjust the value from 3.0 to 36.0 volts. Press the NEXT button to advance the display menu. -
Page 10: Power Supply Mode
1. Set the BC-9000 on a stable surface. 2. Connect the AC power cord (4161-10) to the AC power source. Connect the DC cord (4161-50) to the BC-9000 and the battery. Set the AC power switch to the ON position. -
Page 11: Bc-9000 Care
1. Set the BC-9000 battery charger on a stable suitable surface. 2. Plug the AC cord located at the rear of the BC-9000 into an AC power outlet (Note: The BC-9000 comes with a NEMA 5 -15P plug). 3. Connect the DC output cord (4169-50) to the BC-9000 DC output (gray) output connector. Connect the remaining DC output cord connector (gray) to the proper adaptor cable used to interface to the load being powered. -
Page 12: Bc-9000 Limited Warranty
This written warranty is the only expressed warranty covering the BC-9000. All warranties implied by law such as Warranty of Merchantability are limited to the duration of this limited warranty of the BC-9000. Check your local legal rights for further rights you may have. -
Page 13: Bc-9000 Notes
BC-9000 Notes 1. ___________________________________________________________________________ 2. ___________________________________________________________________________ 3. ___________________________________________________________________________ 4. ___________________________________________________________________________ 5. ___________________________________________________________________________ 6. ___________________________________________________________________________ 7. ___________________________________________________________________________ 8. ___________________________________________________________________________ 9. ___________________________________________________________________________ 10. ___________________________________________________________________________ Page 12...
