- Page 1 OWNER’S MANUAL BatteryCheck SERIES BatteryCheck100 BatteryCheckPRO TEAMBMPRO.COM...
- Page 3 To learn more about the BMPRO range of products, please visit our website teambmpro.com TEAM BMPRO...
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read the Safety Precautions before installing or using the BatteryCheck. Be sure to observe all precautions without fail. Failure to observe these instructions properly may result in personal damage or personal injury which, depending on the circumstances, may be serious and cause loss of life. -
Page 6: Table Of Contents
DISCLAIMER BMPRO accepts no liability for any loss or damage which may occur from the improper or unsafe use of its products. Warranty is only valid if the unit has not been Copyright ©... -
Page 8: About The Batterycheck

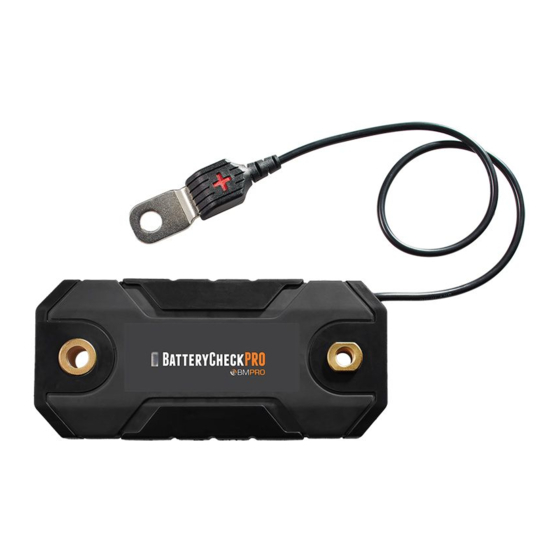

ABOUT THE BATTERYCHECK The BMPRO BatteryCheck is a 12V battery monitor that allows you to check the status of your secondary battery via your smartphone with the BMPRO BatteryCheck100+PRO app. The BatteryCheck monitors a range of battery parameters via the app using built-in Bluetooth technology. -
Page 9: Description Of Parts
DESCRIPTION OF PARTS FIGURE 1: The BatteryCheck 1. NEGATIVE BATTERY TERMINAL/CONNECTION 2. NEW NEGATIVE TERMINAL CONNECTION Connects to the load. 3. ‘+’ POSITIVE FLYING LEAD AND TEMPERATURE SENSOR The BatteryCheck has a terminal at each end. Using these two terminals, the BatteryCheck is bolted in series with the negative terminal of the battery to be monitored. -
Page 10: Installation And Usage
INSTALLATION AND USAGE INSTALLING THE BATTERYCHECK TO THE BATTERY WARNING To avoid sparking, practice standard safety precautions. Disconnect all loads from the battery before installing the BatteryCheck. Before you start, write down the 6-digit PIN found on the back of the BatteryCheck. -
Page 11: Light Indications
CONNECTING TO THE BMPRO BATTERYCHECK100+PRO APP Install the BMPRO BatteryCheck100+PRO app via the Google Play or the Apple App Store. Search for “BMPRO” or use the QR codes below. Open the app and press the menu button in the top left corner. -
Page 12: Changing Battery Settings
You will now be in the Dashboard where you can monitor the battery’s state of charge, voltage, current, temperature, time remaining and the battery’s state of health. When prompted, enter the 6-digit PIN noted before installing the BatteryCheck to the battery. Your BatteryCheck is now ready to use. -
Page 13: Battery State Of Health
BATTERY STATE OF HEALTH The BMPRO BatteryCheck100+PRO app will provide a State of Health estimate for the battery being monitored by the BatteryCheck. After installation, the initial State of Health will be set to 100% and will update over time as the BatteryCheck learns your battery. -
Page 14: Voltage Warnings
VOLTAGE WARNINGS If the battery voltage drops too low or raises too high, the BMPRO BatteryCheck100+PRO app will show a warning icon. The warning icon will diaplay if your battery drops below or rises above the following voltages: LOW BATTERY WARNING... -
Page 15: Faqs And Troubleshooting
FAQS AND TROUBLESHOOTING Need more help troubleshooting your BatteryCheck? Contact our customer service team online at teambmpro.com/technical- support What do I do if my app shows the battery is disconnected? Check if Bluetooth on your phone is turned on. Toggle Bluetooth off and on to reconnect to the BatteryCheck. -
Page 16: Specifications
SPECIFICATIONS SPECIFICATION BATTERYCHECK100 BATTERYCHECKPRO Voltage Measurement 8 to 16V Range Voltage Measurement <20mV Resolution Current Measurement ± 100A ± 300A Range Continuous Current Rating ± 80A ± 240A Current Measurement <20mA <150mA Resolution Temperature Measurement -20 to 70°C Range Temperature Measurement 1°C Resolution Monitored Battery Capacity... -
Page 18: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS Registering your BMPRO product is an important step to ensure that you receive all the benefits you are entitled to. Please visit teambmpro.com to complete the online registration form for your new product today. 1. BMPRO goods come with guarantees that cannot be excluded under Australian Consumer Law. - Page 20 BMPRO TEAM customerservice@teambmpro.com BMPRO 19 Henderson Rd, Knoxfield VIC 3180 Australia .COM teambmpro.com...
