Oricom HNA300 Quick Start Manual

HNA300 NASAL
ASPIRATOR
Keep this user guide for future reference. Always retain your proof
of purchase in case of warranty service.
Introduction
Intended Use
- This device is designed to remove the nasal mucus in children.
Children who are (typically under the age of 6) unable to remove the nasal mucus by
blowing their noses.
Intended purpose
- To eliminate clogging of the nose
- To ensure nasal breathing to infants
- To relieve childhood allergy-like symptoms by removing the nasal mucus
Parts and Functions
Protection Cover 3 Power Button
1
2
LED Indicator 4 Tip 1
-Charging : Yellow light 5 Collection cup
-Charged : Green light 6 Battery Charging Connector
-Low battery : Red light 7 Tip 2
-Working : Green blink

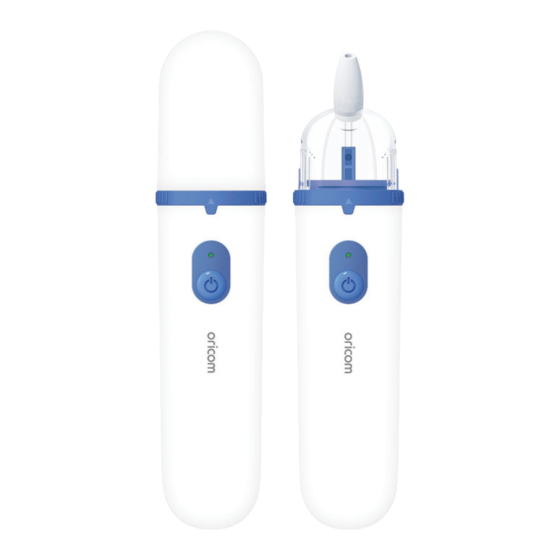

Main Unit Tip 1 Tip 2
HNA-300
Nasal Aspirator
Keep this user guide for future reference. Always retain your proof
of purchase in case of warranty service.
Contents
Important Information
Introduction
Parts and Functions
Preparation
How to Use
How to Maintain and Storage of the Unit
Troubleshooting
Specifications
Warranty
Important Information
Oricom HNA300 Nasal Aspirator is included as a medical device on the Australian
Register of Therapeutic Goods (ARTG No. 307470) and is intended to enable clearing of
excessive mucus from nasal passages of an infant/child to facilitate easier breathing.
Intended for domestic use only. ALWAYS READ THE USER GUIDE AND USE ONLY AS
DIRECTED. IF SYMPTOMS PERSIST SEE YOUR DOCTOR/HEALTHCARE PROFESSIONAL.
Use this product only for the intended purpose as described in this user guide.
WARNING
• Do not insert the tip deep into baby's nostril.
• Should there be any health-related problems, discontinue use immediately and consult
your doctor.
• Do not use HNA300 in the case of nasal irritation, haemorrhage, if any signs of
inflammation and or bleeding in the nose.
• If your child experiences any skin or nasal irritation or redness after use, please stop
using the aspirator and consult your doctor.
• Aspiration time should be limited to 15 seconds per minute MAX.
• HNA300 is not a toy and must be used by adults only after reading this User Guide.
• Keep HNA300 nasal aspirator and nozzle pieces out of children's reach or people with
reduced physical or mental abilities. NOTE: The reservoir nozzle piece is not sterile.
• Keep USB cable out of reach of children.
• This product will require a USB charger rated at 5V 2A to recharge the battery.
Preparation
1) Charging
- Power off your nasal aspirator.
- Only charge your nasal aspirator when the LED is flashing red.
- LED flashing red indicates low battery.
① Connect the USB cable to a charging device (DC5V.2A).
② Connect the micro-USB end of the Cable to Nasal aspirator.
③ LED indicator is yellow when charging.
④ LED indicator is green when charging is complete.
CAUTION
- Only Use the charging cable supplied by Oricom.
- Charging time is 2 hours.
How to Use
1) Collection Cup Assembly/Disassembly
- Make sure your nasal aspirator is turned off.
Product connection
Insert O-Ring to Combine the connection portion of collection cup with collection
① ②
the collection cup. cup. Turn the collection cup in the direction of the arrow to
connect it with main unit.
Connect the suction nose Press and hold the power
③ ④
button to begin suction.
to the main unit.
3
Important Information
Page 1
PRECAUTIONS
Page 3
• Using your HNA300 without a nozzle piece or keeping the switch on when the reservoir
Page 3
is full, will drain the battery quickly.
Page 4 • Before using the HNA300, make sure that all parts are correctly assembled.
• Do not attempt to disassemble the nasal aspirator main unit or the nozzle pieces.
Page 4
• Do not use if damaged.
Page 5
• Do not expose to direct sunlight or leave in a high temperature environment.
Page 6
• Only use the suction nozzles pieces provided with this nasal aspirator.
Page 7
• Never use on ears, mouth, or eyes.
Page 8
• Clean after every use, do not use harsh chemicals or solvents. Refer to the cleaning
instructions in this user guide.
• This nasal aspirator is designed for indoor use only.
• Do not use in conjunction with any nuclear magnetic resonance or CT equipment.
• Your nasal aspirator is designed to work within the operating temperatures and
humidity listed in the specifications. Using it outside these parameters will lead to
malfunction.
• Do not use your nasal aspirator in a bathroom or any environment of elevated humidity
(e.g. sauna, hydrotherapy etc.)
• Do not expose the nasal aspirator to electric shock.
• Do not use the device in flammable gas.
• Cease use if your nasal aspirator starts to operate erratically or malfunction.
For assistance, in setting up, using or maintenance of your HNA300, please contact
Oricom.
WARNING: This product is not a toy, keep out of reach of children. Rechargeable Lithium
Ion batteries are potentially hazardous and can present a serious fire hazard if damaged,
defective or improperly used. Do not leave your product unattended whilst charging the
battery.
This product does not include any user serviceable parts. DO NOT DISASSEMBLE the
base of this product. Dispose of this product which includes a lithium battery in
accordance with local disposal waste regulations. Risk of suffocation! Keep all packaging
materials out of reach of children.
1
How to Use
2) Electronic Suction
① Open the aspirator cover. Press and hold the power
②
Place the suction tip securely button to begin suction.
on collection cup.
Gently place the suction tip When the suction is
③ ④
into the baby's nose, and complete, release the power
allow the suction to clear the button.
mucus.
WARNING
- Do NOT suction water or any other liquid.
- Do NOT allow mucus and fluid to exceed 50 percent capacity.
- Make sure nasal aspirator is turned off prior to removing collection cup for cleaning.
- Do NOT submerge in water or any other liquid.
How to Maintain and storage of the Unit
1) Cleaning after use
① Disconnect the combined suction tip from the device.
② Twist the collection cup to remove the contents.
③ Disconnect collection cup from the main body.
④ To clean the main body and all parts connected to it, rinse with the operation button
facing downwards and then wipe to clean with an antibacterial wipe.
⑤ Ensure all parts are completely dry before reassembling.
NOTE: The product should not be operated during any of the cleaning process.
WARNING: The nasal aspirator is NOT waterproof. Do NOT submerge the main body
in water.
2) Cleaning the suction tip
① To clean the disconnected suction tip, disinfect it in boiling water and keep it clean.
② Ensure all parts are completely dry before reassembling.
WARNING: The nasal aspirator is NOT waterproof. Do NOT submerge the main
body in water.
3) Typical service life
- The lithium-polymer rechargeable battery should endure approximately 300 charge cycles.
4
2
Clean nasal aspirator after
⑤
use.
5
