Original User's Instructions

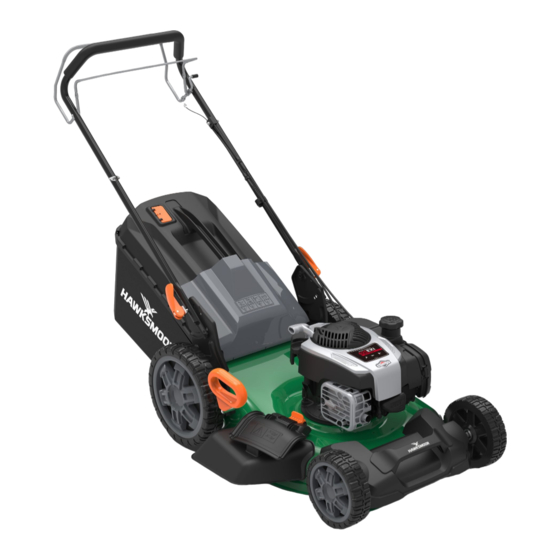

150cc Self Propelled Petrol Lawn Mower
SKU: 15564

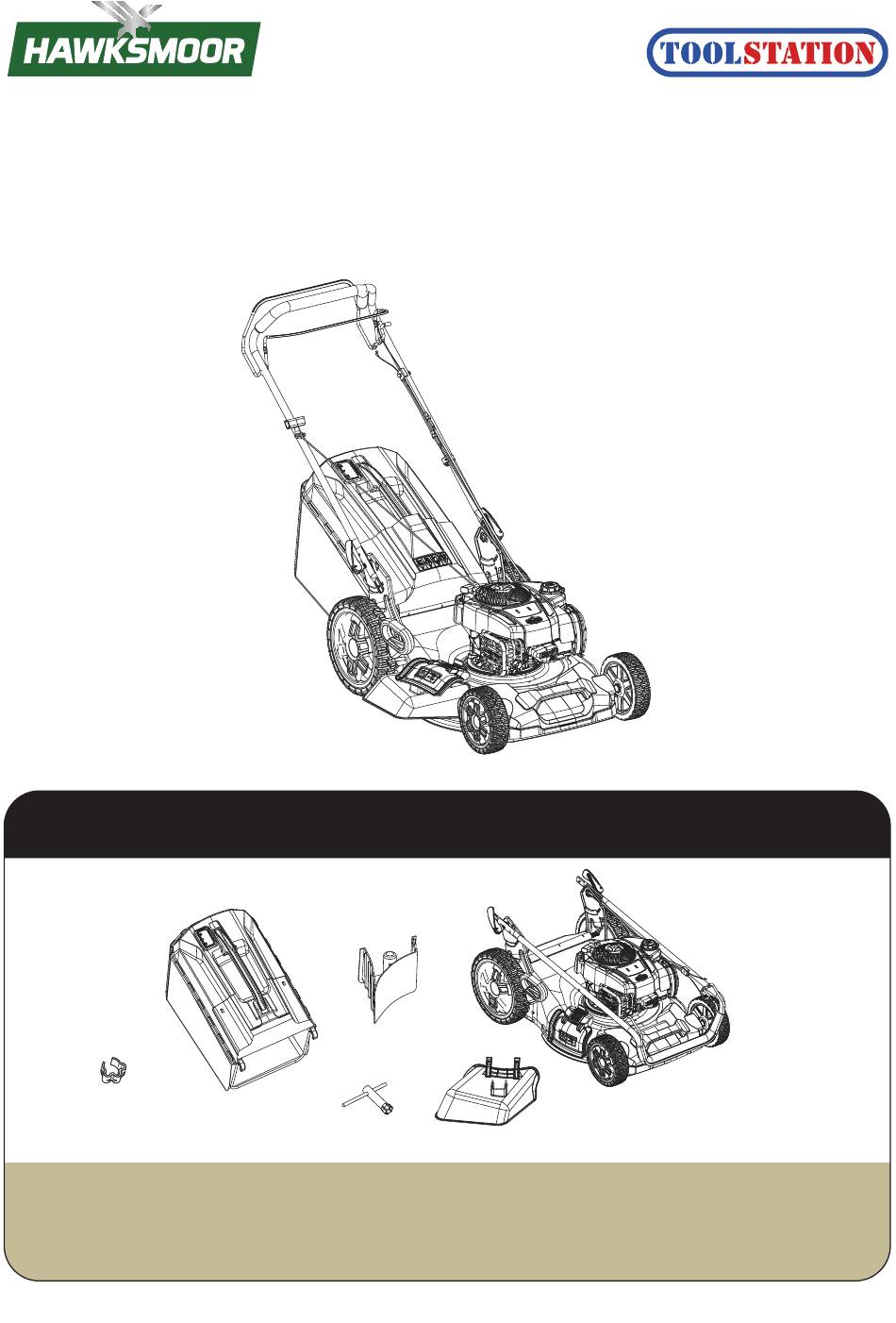

WHAT'S IN THE BOX
Grass collection bag x 1
Cable clip x 1
PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE
Mulching plug x 1
Spark plug
wrench x 1
If you do not have all these items, please contact:
www.coreservice.co.uk
Hotline: +44 01904 947568
Email support@coreservice.co.uk
Main mower deck x 1
Side discharge chute x 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15564 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hawksmoor 15564

Summary of Contents for Hawksmoor 15564

  • Page 1 Original User’s Instructions 150cc Self Propelled Petrol Lawn Mower SKU: 15564 WHAT'S IN THE BOX Grass collection bag x 1 Main mower deck x 1 Mulching plug x 1 Cable clip x 1 Side discharge chute x 1 Spark plug...

  • Page 2: Specification

    SPECIFICATION Technical Data Property Value Engine type Single cylinder 4-stroke Engine displacement 150cm Engine power 2.2kW/ 2900/min Max. engine speed 2900/min Cutting width 53cm Grass bag capacity Ignition T.C.I Fuel tank capacity Oil tank capacity 0.47L Measured sound power level 92.6 dB(A) Guaranteed sound power level 98 dB(A) K=3dB(A)
  • Page 3 Beware of sharp blades - remove the spark plug lead before maintenance. No naked flames. Appropriate ear, eye, and head protection (PPE) must be worn. Hot surfaces will burn the hands! Warning! The lawn mower’s exhaust gas contains toxic substances. Do not run the engine in closed or poorly-ventilated areas.

  • Page 4: Health And Safety

    HEALTH AND SAFETY WARNING! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING! Read all safety warnings and instructions designated by the symbol. Save all warnings and instructions for future reference. •...

  • Page 5: Personal Safety

    • Never allow children or people unfamiliar with these instructions to use the lawn mower. Local regulations can restrict the age of the operator. • Never mow while people, especially children or pets, are nearby. Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

  • Page 6: Operation Safety

    • Replace faulty silencers. • Prior to use, visually inspect to see that the blade, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets, to preserve balance. Operation safety • Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect.

  • Page 7: Maintenance And Storage

    of the discharge opening at all times. • Never pick up or carry a lawn mower while the engine is running. • Stop the engine and disconnect the spark plug cable, making sure that all moving parts have come to a complete stop: a) Before clearing blockages or unclogging the chute.
  • Page 8 COMONENT LIST 1. Propulsion lever 2. Start stop lever 3. Quick release knob 4. B&S engine 5. Bumper handle 6. Side discharch chute 7. Height adjustment handle 8. Grass box 9. Full grass indicator 10. Starter Not all the accessories illustrated or described are included in standard delivery.

  • Page 9: Assembly And Use

    ASSEMBLY AND USE INTENDED USE WARNING! Always take care when removing the packaging, to prevent damage to you or to the lawn mower. This item requires a two-person lift to remove it from the packaging. Make sure that you have sufficient space to put the lawn mower down.
  • Page 10 Grass bag assembly IMPORTANT! Make sure the grass collection bag is in place before starting the engine. 1. Attach the grass bag to the frame by fixing all the plastic hooks. 2. If using the collection function, raise the safety flap and take out the mulching plug, and hook the collection bag onto the mower.
  • Page 11 STOP! Do not start the engine before putting 500ml of SAE 30 oil into the engine. Failure to do so will result in irreparable damage to the engine and invalidate your warranty. Preparing to Operate The Lawn Mower Filling with engine oil IMPORTANT! The following procedures and adjustments must be performed before the engine is started.
  • Page 12 recommended oil (SAE 30 or equivalent). Do not overfill. Wipe away any spilt oil. 4. Before using for the first time, add 0.5 litres of oil (SAE 30). Filling with engine fuel WARNING! Refuel in a well-ventilated area with the engine stopped.
  • Page 13 2. Move it to any one of the 7 positions for the desired cutting height. 3. Return the lever into the securing plate. Position Approx. cutting height (mm) 25mm 30mm 36mm 42mm 53mm 64mm 75mm Note: Never use the lowest cutting height for the first cut of the season or in drought conditions.
  • Page 14 Step 2 - Start/stop bar activation Pull the start/stop bar towards you. Engine start Engine stop Step 3 - Pull the cord handle With the right hand, slowly but firmly pull the starter handle and rope from the pull cord guide until you feel resistance, then pull briskly.
  • Page 15 Note: The best result will be achieved if the grass is dry. Wet grass will tend to clog the blade and the grass collection system. Grass grows at different rates at different times of the year. Never use the lowest cutting height for the first cut of the season or in drought conditions.

  • Page 17: Care And Cleaning

    CARE AND CLEANING Maintenance and Storage Storing the lawn mower for short periods After mowing, please follow the actions below prior to placing the lawn mower in storage: Allow the engine to cool down fully. Ensure the grass collection bag is empty. Clean all debris from under the mower deck.
  • Page 18 Important! Always drain the petrol before vertical storage. Note: Alternatively, adding Briggs & Stratton FUEL FIT to the fuel will prevent contaminated fuel. Not all additives on the market do this. FUEL FIT can be ordered via www. gardenservicecentre.co.uk. Preparing to re-use the mower Check the oil level before starting the engine to ensure there is sufficient oil, see page 14.
  • Page 19 Make sure that the underside of the lawn mower deck is clean and clear. • Never clean the lawn mower with a water jet or high-pressure cleaner. The engine must remain dry. Do not use aggressive cleaning agents or solvents, such as cold degreasers or petroleum ether.
  • Page 20 Adding the oil Refill with SAE 30 oil or equivalent, i.e. SAE 5W/30, SAE 10W/30). When the dipstick is rested on the filler pipe, the oil level must be between the min. and max. marks on the dipstick. See ‘Filling with engine oil’. Do not overfill. Start the engine and allow it to run briefly.
  • Page 21 Make sure the blade is correctly located, and then firmly tighten the bolt. Do not over tighten. The up turn of the blade must project into the motor compartment. Note: If you are unsure about performing this operation, call our helpline or go to an authorised dealer to change the blade for you.

  • Page 22: Troubleshooting

    TROUBLE SHOOTING WARNING! Always switch off the engine and pull the ignition cable before starting any inspection or adjustment work. If after making an adjustment or repair to the engine you let it run for a few minutes, remember that the exhaust and other parts will get hot. The following table provides solutions to common problems encountered with the lawn mower: Fault Possible Cause...
  • Page 23 DECLARATION OF CONFORMITY / PERFORMANCE Product Code: 15564/ XSZ53D-SD-E Product Description Hawksmoor: 150cc 53cm Briggs & Stratton Self Propelled Petrol Lawnmower 1. Toolstation Limited, Express Park, Bristol Road, Bridgwater, Somerset TA6 4RN This declaration of conformity is issued under the sole responsibility of Toolstation 2.

  • Page 24: Environmental Information

    ENVIRONMENTAL INFORMATION When your product comes to the end of its life or you choose to update or upgrade it by replacing it, please do not dispose of it with your normal household waste. Please recycle where facilities exist. When you need to dispose of this product, check with your retailer or local authority for suitable options.

  • Page 25: Customer Support

    GUARANTEE Toolstation products deliver reliable service for normal, household use in domestic settings. All Toolstation products are individually tested before leaving the factory. If you are a consumer and you experience a problem with your Toolstation product, which is found to be defective due to faulty materials or workmanship within the Guarantee Period, this Toolstation Guarantee will cover repair or - at the discretion of Toolstation –...
