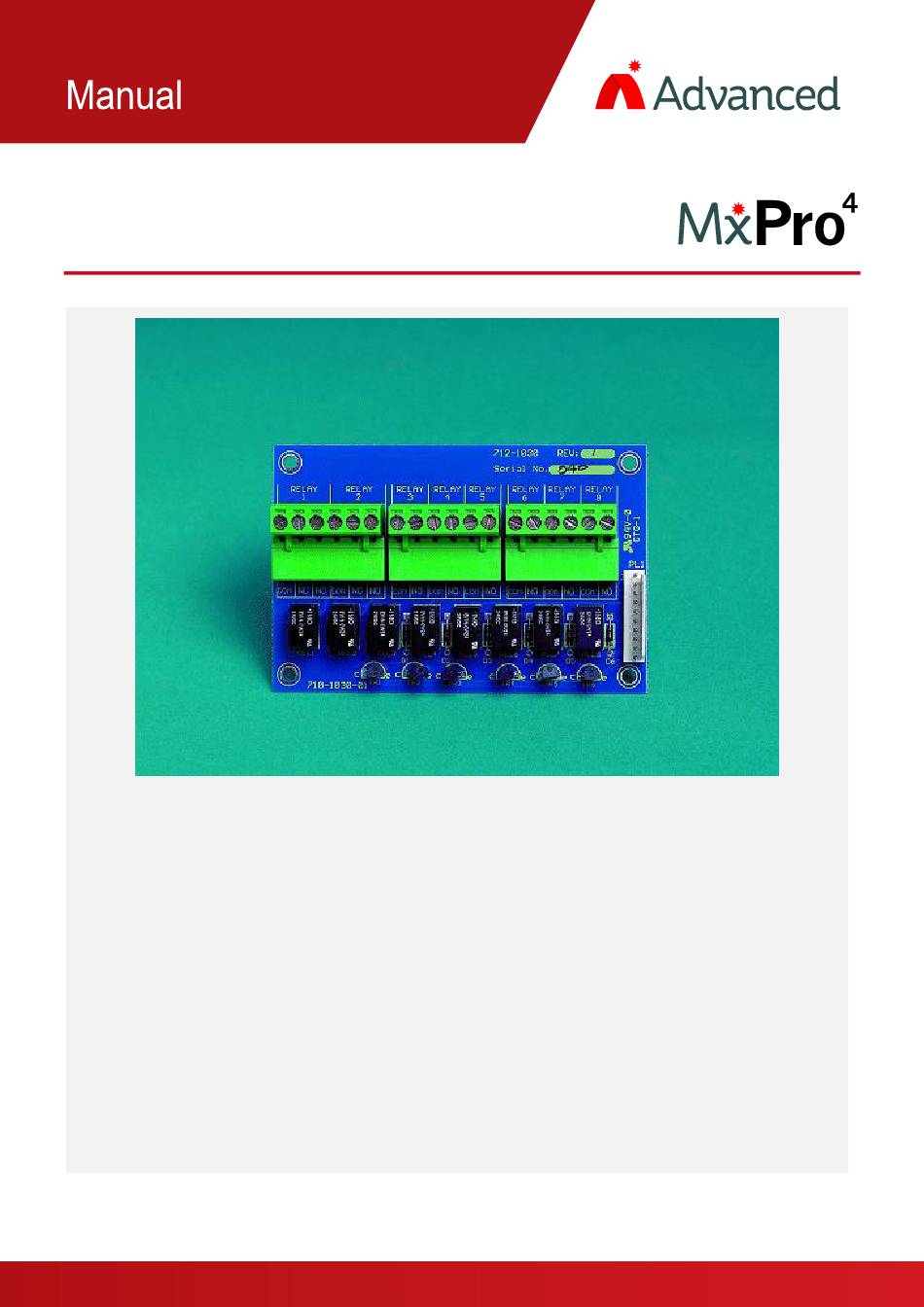

Advanced Mxp-007 Manual

Relay output cards

Advertisement

Quick Links

Relay Output Cards
Features
The Mxp-007 and Mxp-008 are internal peripherals for use with the MxPro 4 panels. The units connect
directly to the panel's motherboard and provide either 2 or 8 individually programmable 1-Amp rated, volt free,
clean contact outputs.
Each output can be individually assigned to an output group to provide full support for the MxPro 4 system's
DynamiX zoning facilities. In addition, each output has a number of programmable operational parameters
including fail-safe, can-silence, allow walk test and delayed operation.
These features not only aid commissioning and cut down on expensive ancillary hardware but also allow the
system to be easily configured to provide full support for the more complex cause and effect configurations
using standard products.
www.advancedco.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mxp-007 and is the answer not in the manual?

Questions and answers

Summary of Contents for Advanced Mxp-007

  • Page 1 Relay Output Cards Features The Mxp-007 and Mxp-008 are internal peripherals for use with the MxPro 4 panels. The units connect directly to the panel’s motherboard and provide either 2 or 8 individually programmable 1-Amp rated, volt free, clean contact outputs.
  • Page 2 Up to two 2 Way or 8 Way Relay Output Cards can be fitted to an Mx-4800 control panel. Compatibility: The Mxp-007 is fully compatible with the Mx-4100, Mx-4200, Mx-4400 and Mx-4800 Fire Alarm Control Panels. The Mxp-008 is fully compatible with the Mx-4200, Mx-4400 & Mx-4800 Fire Alarm Control Panels.
  • Page 3: Table Of Contents

    Table of Contents Page INSTALLATION ..............................4 -007 -4100/L ....................4 NSTALLING THE IN THE 1.1.1 Mounting the Card........................... 4 1.1.2 Internal Wiring ............................4 -007 -4200/M -4400/M -4800 ..............4 NSTALLING THE IN THE 1.2.1 Mounting the Card........................... 4 1.2.2 Internal Wiring ............................
  • Page 4: Installation

    Use the four M3 screws supplied to securely affix the card to the Mxp-007 chassis. It is not possible to install the Mxp-007 in this position if either the Mxp-021 Sounder Splitter or the Mxp-028 Modem is already installed. Base Card 1.2.2 Internal Wiring...
  • Page 5: Installing The Mxp-008 In The Mx-4200/Mx-4400/Mx-4800

    1.3 Installing the Mxp-008 in the Mx-4200/Mx-4400/Mx-4800 1.3.1 Mounting the Card The card mounts on 4 pillars in the top left hand corner of the control panel chassis adjacent to the Mx4200/Mx 4400 base card. See diagram opposite. Use the four M3 screws supplied to securely affix the card to the chassis.
  • Page 6: Program The Relay Outputs

    On the PC configuration software the outputs are under the “On-board” devices and shown as “Panel O/C-1” through to “Panel O/C-8”. O/C-1 and O/C-2 only for the Mxp-007 O/C-1 to O/C-8 for the Mxp-008 By default, the relays are all in the same Output Group, 199, but this can be changed as required. In the example below, the relays have been assigned to groups 180 to 187.
  • Page 7: May Silence

    2.1 May Silence: If this parameter is ticked, the relay will behave in a similar manner to a sounder circuit output. It will energise as defined by their “Output Group” setting and de-energise when the “Silence” key is pressed. 2.2 Inverted Output: relay will behave in a manner similar to a “Fault”...
  • Page 8 This page is intentionally left blank. www.advancedco.com...
  • Page 9 USER NOTES www.advancedco.com...
  • Page 10 Doc Number: 680-028 Revision: Advanced Electronics Ltd Moorland Way, Cramlington, Northumberland, NE23 1WE UK Tel: +44 (0)1670 707 111 Fax: +44 (0)1670 707 222 Email: sales@advancedco.com Web: www.advancedco.com www.advancedco.com...
