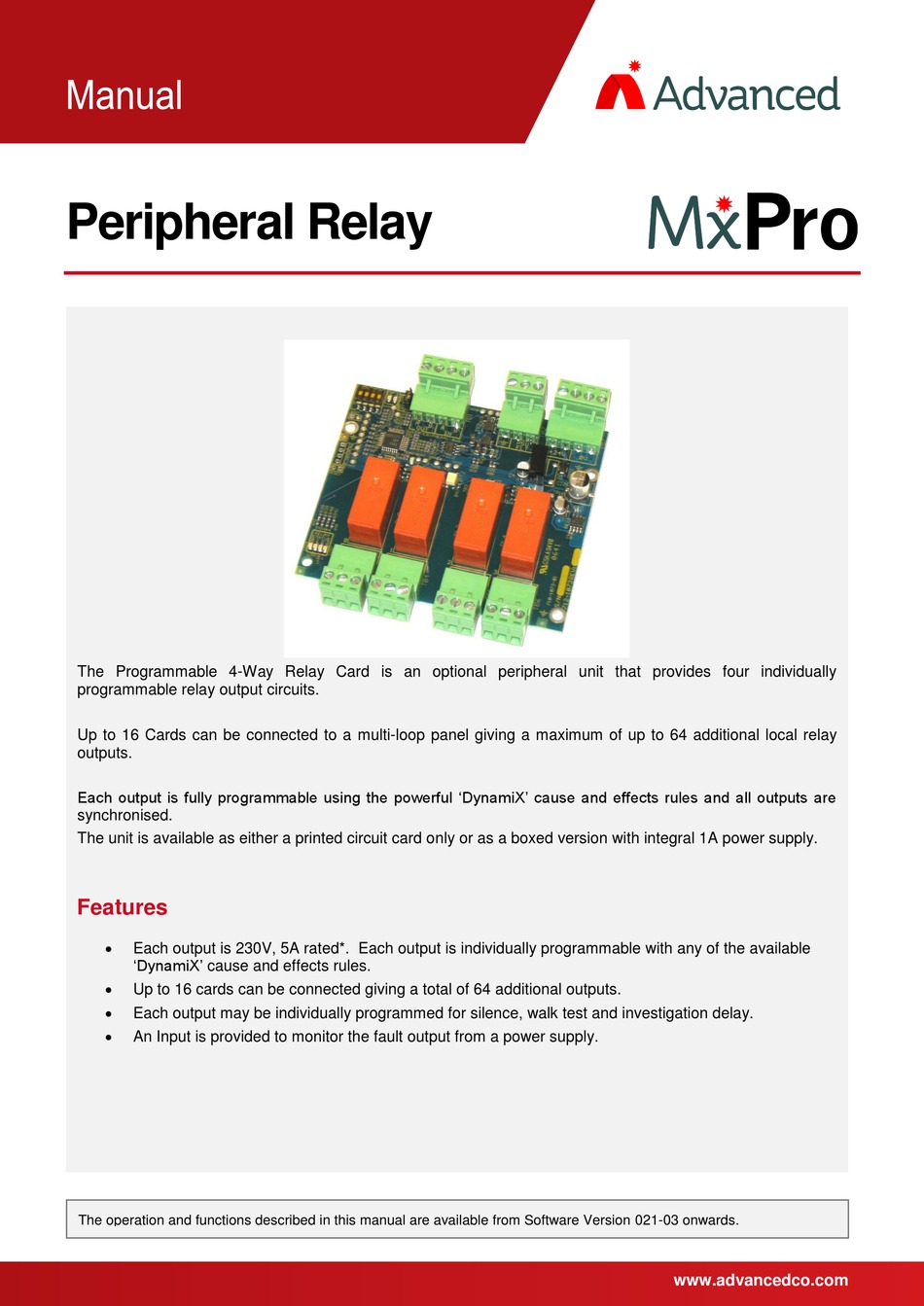

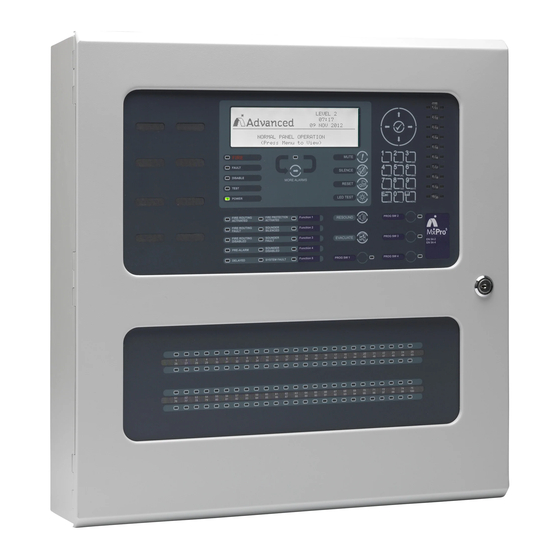

Peripheral Relay
The Programmable 4-Way Relay Card is an optional peripheral unit that provides four individually
programmable relay output circuits.
Up to 16 Cards can be connected to a multi-loop panel giving a maximum of up to 64 additional local relay
outputs.
Each output is fully programmable using the powerful 'DynamiX' cause and effects rules and all outputs are
synchronised.
The unit is available as either a printed circuit card only or as a boxed version with integral 1A power supply.
Features
Each output is 230V, 5A rated*. Each output is individually programmable with any of the available
'DynamiX' cause and effects rules.
Up to 16 cards can be connected giving a total of 64 additional outputs.
Each output may be individually programmed for silence, walk test and investigation delay.
An Input is provided to monitor the fault output from a power supply.
The operation and functions described in this manual are available from Software Version 021-03 onwards.
www.advancedco.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Advanced MxPro Series
Summary of Contents for Advanced MxPro Series
- Page 1 Peripheral Relay The Programmable 4-Way Relay Card is an optional peripheral unit that provides four individually programmable relay output circuits. Up to 16 Cards can be connected to a multi-loop panel giving a maximum of up to 64 additional local relay outputs.
- Page 2 Specifications: Models, Sales Order Parts: Mxp-035 4-Way Programmable Relay Card Mxp-035-BXP : 4-Way Programmable Relay Card Boxed with 1A PSU Applications / Limitations: Plant Control and Signalling relay outputs. Each output can be assigned to an individual output group and is fully programmable for any output function allowed within the configuration program.
-
Page 3: Table Of Contents
Table of Contents Page INTRODUCTION............................. 4 INSTALLATION .............................. 5 ............................. 5 NCLOSURE PCB M ....................5 OUNTING IN EPARATE NCLOSURE PCB M 4200 / 4400 P ....................6 OUNTING IN A ANEL PCB M 5000 P ......................6 OUNTING IN A ANEL DIP S ........................ -
Page 4: Introduction
1 Introduction Four relay outputs are provided. These can be independently programmed with different cause and effect rules. The outputs can be configured to turn ON only. The PC CONFIG tool is used to program the presence and functionality of these outputs. By default, the outputs cannot be silenced. -
Page 5: Installation
2 Installation 2.1 Enclosure The enclosure dimensions, fixing points and general Power arrangement are shown in Fault FIGURE 1 opposite: Space is provided in the bottom of the enclosure for 2x 7AH batteries. Enclosure cover is fixed to the back box with 2x hex M4 screws. -
Page 6: Pcb Mounting In A 4200 / 4400 Panel
2.3 PCB Mounting in a 4200 / 4400 Panel The card may be fitted to the chassis using 4x M3 screws. Refer to Figure 3 opposite. Screws marked must be securely fixed to provide an earth connection for 4-Way Relay EMC purposes. -
Page 7: Wiring
2.6 Wiring All electrical wiring installation work should be carried The unit is designed for easy wiring installation. out in accordance with the code of practice applicable “Plug-in” terminal blocks are provided for all connections to the in the country of installation.To maintain electrical integrity of the SELV wiring on the DC Power and unit. -
Page 8: Dc Power And Serial Communications
2.6.3 DC Power and Serial Communications A 24V DC power supply is required. For boxed versions, supplied complete with a power supply, DC Power is pre-wired. Refer to details above Connect the 24V DC supply feed input to the SUPPLY for the AC Power connections. -
Page 9: Programming And Configuration
3 Programming and Configuration To add a 4-way relay card in the configuration file firstly expand the panel tree and select the “Peripheral Bus” option. Note: The peripheral addresses are assigned in blocks. Addresses 50-65 are assigned to the 4-Way Sounder and addresses 66-81 are assigned to the 4-Way Relay. -
Page 10: Removing Devices
3.2 Removing Devices To remove a device, click on the button, select and highlight the address to be removed and then click the button to delete the 4-way relay card from the address. 3.3 Configuring the Output Circuits 3.3.1 Basic Details Click the button to show a list of the addresses and sub-addresses for... -
Page 11: Detailed Configuration
3.3.2 Detailed Configuration Detailed output configuration is shown in the ‘Point Details’ window for the selected address. For example: Option Description Default Device Location Text Enter the Device Location text to describe each relay circuit. If required, the Zone Number can also be changed. - Page 12 Doc Number: 680-133 Revision: Advanced Electronics Ltd Moorland Way, Cramlington, Northumberland, NE23 1WE UK Tel: +44 (0)1670 707 111 Fax: +44 (0)1670 707 222 Email: sales@advancedco.com Web: www.advancedco.com www.advancedco.com...
