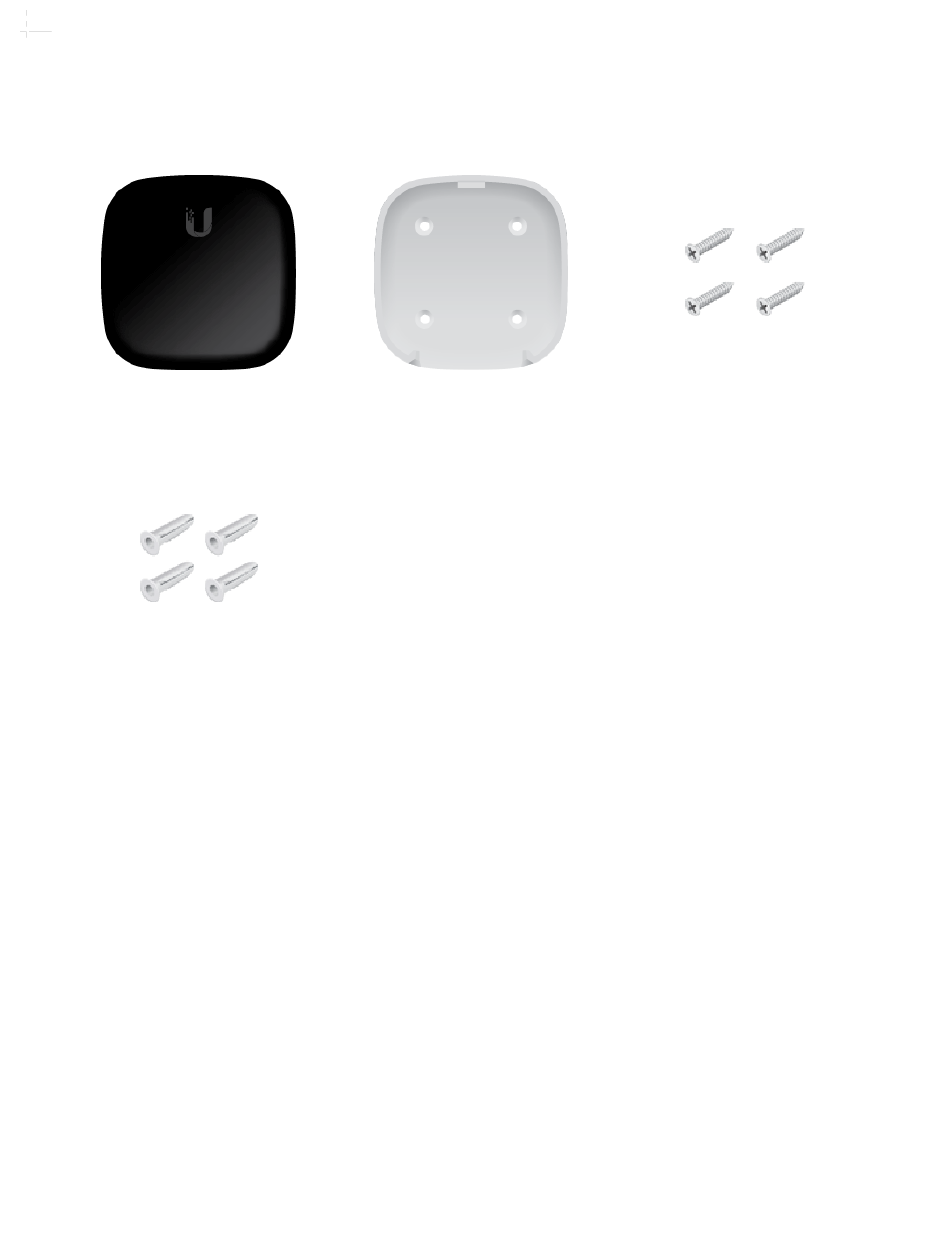

- Page 1 UF-AE Quick Start Guide Package Contents UFiber ActiveEthernet Wall Mount Bracket Screws (Qty. 4) Screw Anchors (Qty. 4) Installation Requirement The UF-AE requires an active fiber SFP module and does not support passive GPON SFP modules. Hardware Overview Ports...
- Page 2 UF-AE Quick Start Guide SFP Port The hot-swappable SFP port supports a 1 Gbps connection. (You can use an SFP+ module; however, the maximum speed is 1 Gbps.) Ethernet Port The RJ45 Ethernet port supports a 10/100/1000 connection. To power the device, the port also supports 802.3af active PoE or 24V passive PoE.
- Page 3 Signal LED UF-AE Quick Start Guide Optical signal present Loss of optical signal Amber Check the fiber cable for damage and ensure that it is properly connected on both ends. Power LED Power off White Power on Hardware Installation Wall Mounting...
- Page 4 UF-AE Quick Start Guide...
- Page 5 UF-AE Quick Start Guide...
- Page 6 UF-AE Quick Start Guide...
-
Page 7: Connecting Fiber
UF-AE Quick Start Guide Connecting Fiber The UF-AE requires an active fiber SFP module and does not support passive GPON SFP modules. Note: You can use an SFP+ module; however, the maximum speed is 1 Gbps. -
Page 8: Connecting Lan
UF-AE Quick Start Guide Connecting LAN... -
Page 9: Connecting Power
UF-AE Quick Start Guide Connecting Power Note: The airCube AC provides a 1 Gbps Ethernet connection and Wi-Fi connectivity with PoE passthrough, so it is the ideal complement to the device for CPE installations. -
Page 10: Specifications
UF-AE Quick Start Guide WARNING: The switch port must comply with the power specifications listed in this Quick Start Guide. Specifications UF-AE Dimensions 76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 1.04") Weight 68 g (2.40 oz) -
Page 11: Safety Notices
UF-AE UF-AE Quick Start Guide Networking Interfaces (1) 1 Gbps SFP Port (1) 10/100/1000 Mbps RJ45 Port Power Method 802.3af PoE: (Pins 1, 2+; 3, 6-) 24V Passive PoE: (Pins 4, 5+; 7, 8-) Power Supply 802.3af PoE or 24V Passive PoE Device* Max. -
Page 12: Limited Warranty
specified may result in improper operation, damage to the equipment or pose a fire hazard if UF-AE Quick Start Guide the limitations are not followed. 2. There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician. Limited Warranty ui.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes on an individual basis,... -
Page 13: Weee Compliance Statement
UF-AE Quick Start Guide WEEE Compliance Statement Declaration of Conformity Online Resources © 2021 Ubiquiti Inc. All rights reserved.
