Summary of Contents for Ubiquiti UF-AE

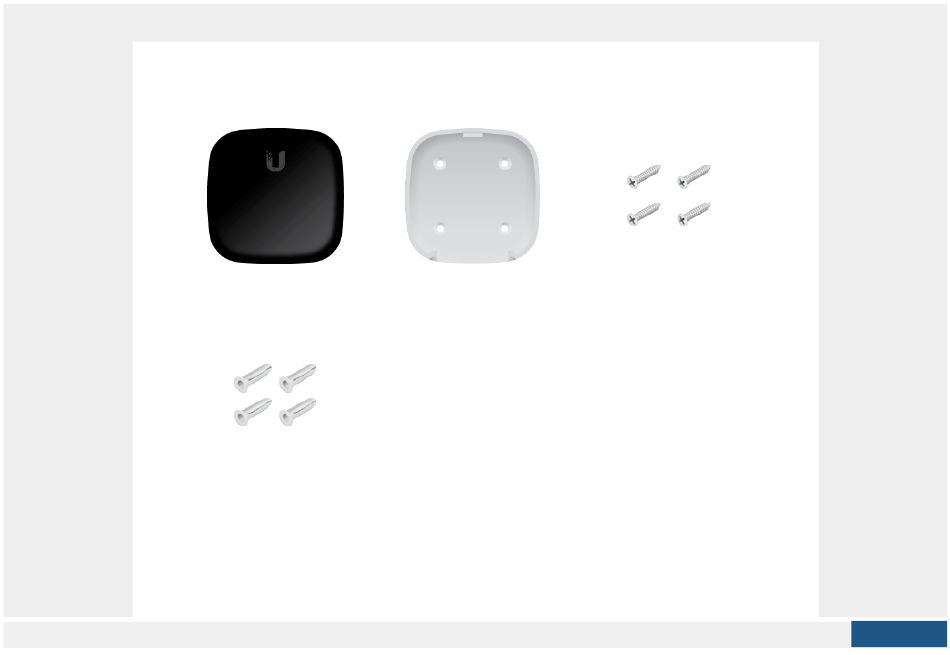

- Page 1 Package Contents UFiber ActiveEthernet Wall Mount Bracket Screws (Qty. 4) Screw Anchors (Qty. 4) Installation Requirement Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 2 The UF-AE requires an active fiber SFP module and does not support passive GPON SFP modules. Hardware Overview Ports Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 3 SFP Port The hot-swappable SFP port supports a 1 Gbps connection. (You can use an SFP+ module; however, the maximum speed is 1 Gbps.) Ethernet Port The RJ45 Ethernet port supports a 10/100/1000 connection. To power the device, the port also supports 802.3af active PoE or 24V passive PoE. Ethernet LED Ethernet connection down Amber...
- Page 4 Flashing indicates activity 1000 Mbps (1 Gbps) Ethernet connection up White Flashing indicates activity Signal LED Optical signal present Loss of optical signal Amber Check the fiber cable for damage and ensure that it is properly connected on both ends. Power LED Power off White...
- Page 5 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 6 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 7 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 8 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 9 Connecting Fiber The UF-AE requires an active fiber SFP module and does not support passive GPON SFP modules. Note: You can use an SFP+ module; however, the maximum speed is 1 Gbps. Create PDF in your applications with the Pdfcrowd...
- Page 10 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 11 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 12: Connecting Lan
Connecting LAN Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... -
Page 13: Connecting Power
Connecting Power Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... - Page 14 Note: The airCube AC provides a 1 Gbps Ethernet connection and Wi-Fi connectivity with PoE passthrough, so it is the ideal complement to the device for CPE installations. WARNING: The switch port must comply with the power specifications listed in this Quick Start Guide.
-
Page 15: Specifications
Specifications UF-AE Dimensions 76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 1.04") Weight 68 g (2.40 oz) Networking Interfaces (1) 1 Gbps SFP Port (1) 10/100/1000 Mbps RJ45 Port Power Method 802.3af PoE: (Pins 1, 2+; 3, 6-) 24V Passive PoE: (Pins 4, 5+;... -
Page 16: Safety Notices
UF-AE Max. Power Consumption 1.5W Supported Voltage Range 16 to 57V LEDs (1) Ethernet (1) Optical Signal (1) Power Operating Temperature -40 to 60° C (-40 to 140° F) Operating Humidity 10 to 90% Noncondensing ESD/EMP Protection ± 12kV Contact/Air... -
Page 17: Electrical Safety Information
WARNING: CLASS 1 LASER PRODUCT - Do not look into the ends of the fiber optic cable or SFP modules while converters are powered. Electrical Safety Information 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. -
Page 18: Declaration Of Conformity
against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. - Page 19 © 2020 Ubiquiti Inc. All rights reserved. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
