XES-2T6
Premanaged Gigabit Ethernet Switch
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XES-2T6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Swisson XES-2T6

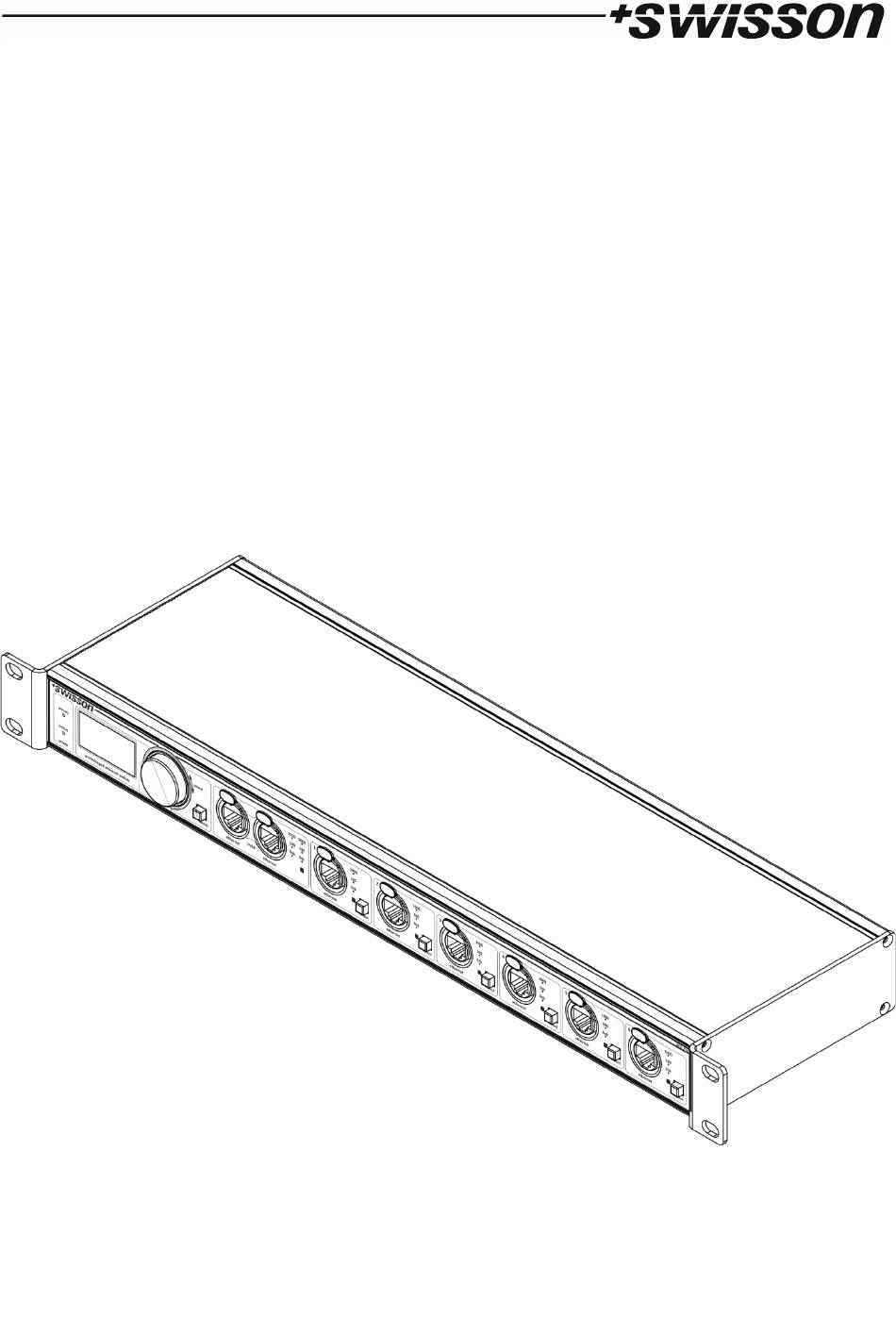

  • Page 1 XES-2T6 Premanaged Gigabit Ethernet Switch User Manual...
  • Page 2 UM_XES-2T6-D0-LEN-V01-02 2020-10-28...
  • Page 3: Table Of Contents

    Index Index ....................................3 Introduction ..................................4 Unpacking ..................................5 Safety Information ................................5 Device Overview ................................7 Settings and Menu ................................10 Screen Saver ..................................15 Firmware Updates ................................15 Technical Data ................................. 16 Ordering Information ..............................17...
  • Page 4: Introduction

    Touring / festivals As a layer 2 switch, the XES-2T6 works with all protocols that operate on top of the Ethernet protocol. However, there are some protocols which are based on the lower layers of Ethernet but are not fully Ethernet compliant. Such protocols may not work with...
  • Page 5: Unpacking

    It is essential that you read and understand this manual before operating the device and that you follow the instructions given below closely when you set up, connect and use the XES-2T6. Do not use the device in any way or for any purpose not described in this user manual.
  • Page 6 • Do not expose the device to rain or moisture. • Do not operate the device if any cover or component is missing, damaged or deformed. • Refer any service operation not described in this manual to Swisson. • Provide unrestricted airflow around the device.
  • Page 7: Device Overview

    Device Overview 1. Status LED for primary PSU. 2. Status LED for backup PSU. 3. OLED display. 4. Encoder knob. 5. Cancel button. 6. Neutrik etherCON Cat 5e RJ45 connector for Gigabit Ethernet trunk port 1. 7. Neutrik etherCON Cat 5e RJ45 connector for Gigabit Ethernet trunk port 2. 8.
  • Page 8 • No matter what the AC mains power voltage is, the current drawn by all the devices that draw AC mains power from one of the power outlets of an XES-2T6 must not exceed a total of 19.8 amperes. That is 19.8 amperes for the primary PSU mains loop through output and another 19.8 amperes that may be drawn from the backup PSU mains loop...
  • Page 9 VLAN ID of the packet’s tag. If an untagged packet arrives at an inter switch port of the XES-2T6, the packet will be tagged with the XES-2T6 default VLAN ID, 1, and then it will be treated as if the packet had reached the inter switch port with the VLAN ID 1 attached to it.
  • Page 10: Settings And Menu

    One of the two trunk ports (6) or (7) may also be used to connect the XES-2T6 to a non-aggregated Ethernet port, if the other of the two aggregated trunk ports is left unconnected.
  • Page 11 Home Screen The home screen displays the title XES-2T6, the area below is arranged into 6 cells. Each cell shows the number of its associated numbered Ethernet port (see page 7, item 11). The small text next to the port number is either “INTER SW.”...
  • Page 12 Group” using the encoder knob and push [OK] to add a new group. The XES-2T6 supports up to 30 groups. When a total of 30 groups is present the “> Add Group” menu item disappears until one of the groups has been removed.
  • Page 13 Then push [OK] to apply the edited number or press [Cancel] to discard the changes. Changing the Group Colour Choose “Colour” and press [OK] to change the group colour. A selection of colours will appear. The currently config- ured colour of the group is marked with a bullet point on the left. While this menu is shown on the OLED display, all the group colour LEDs (item (12d) on page 7) light in the currently highlighted colour.
  • Page 14 Please refer to the section Screen Saver on page 15 for more details about the behaviour of the screen saver. Device Information The following information about the device is available under Home > Menu > Device Settings > Device Information. Model The device model is reported as “XES-2T6”. Boot Software The full version number of the boot software. Firmware The full version number of the firmware.
  • Page 15: Screen Saver

    Firmware Updates Firmware updates will be provided on the product page on the Swisson website. For updating the firmware, a PC with Windows (Vista or later) and a USB A to B cable (USB printer cable) is required. Please refer to the separate documen-...
  • Page 16: Technical Data

    Technical Data Ambient temperature ..............-30°C…50°C (-22°F…122°F) AC power ..................100 - 240 V nominal, 50/60 Hz Typical power consumption ............10 W Ethernet (all ports) ............... 1000BASE-T and 10BASE-T / 100BASE-TX, auto negoti- ating, auto MDI-X Ethernet ports ................6 + 2 Ethernet switch type ..............
  • Page 17: Ordering Information

    Ordering Information 10 42 20 XES-2T6 Premanaged Gigabit Ethernet switch, rack mountable...
  • Page 20 The information in this documentation is supplied without warranty of any kind, either directly or indirectly, and is subject to change without prior written notice. Swisson, its employees or appointed representatives will not be held responsible for any damages to software, hard- ware, or data, arising as a direct or indirect result of the product(s) mentioned herein.
