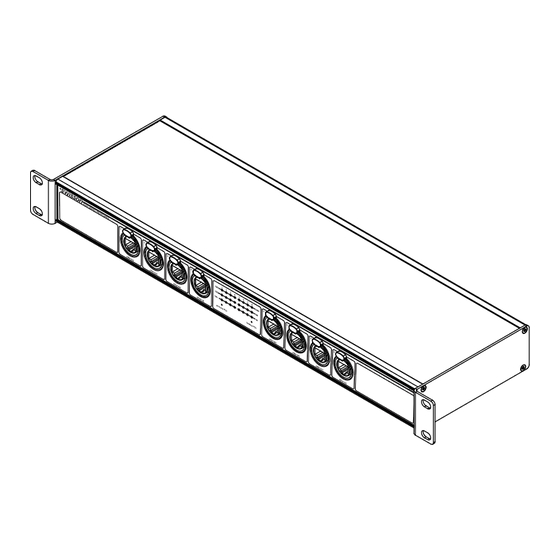

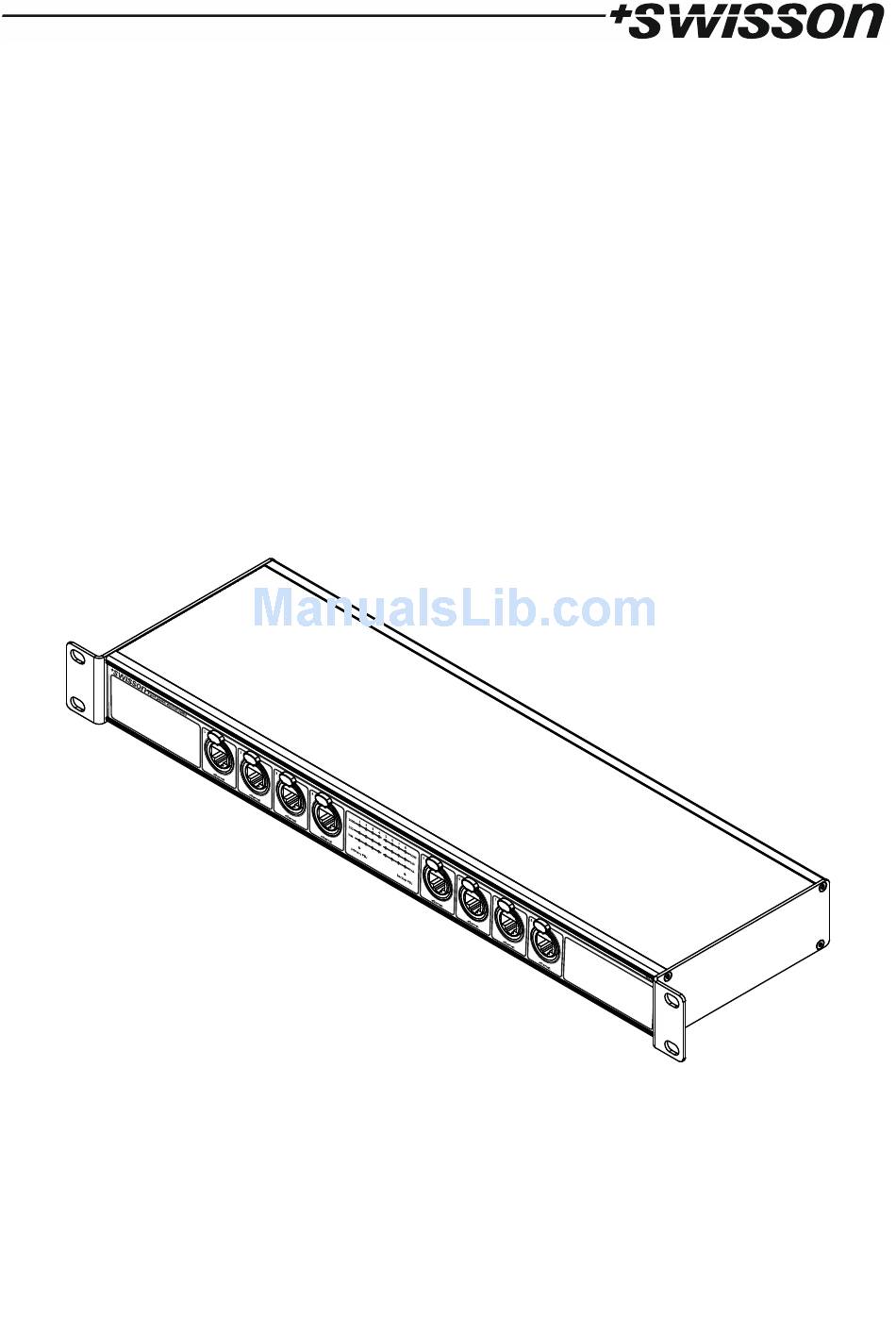

- Page 1 XES-8G 8-Port Gigabit Ethernet Switch User Manual...
- Page 2 UM_XES-8G-D0-LEN-V01-00-DRAFT.DOCX 2017-02-13...
-
Page 3: Table Of Contents
Index Index ..................................3 Introduction ................................4 Unpacking ................................... 5 Safety Information ..............................5 Device Overview ................................. 7 Differentiated Services (DiffServ) Based QoS ....................... 8 Unlimited Broadcast Traffic ............................9 Ready to Forward Data Anytime ..........................9 Technical Data ................................10 Ordering Information .............................. -
Page 4: Introduction
Touring / Festivals As a layer 2 switch, the XES-8G works with all protocols that operate on top of the Ethernet protocol. However, there are some protocols which are based on the lower layers of Ethernet but are not fully Ethernet compliant. Such protocols may not work with... -
Page 5: Unpacking
It is essential that you read and understand this manual before operating the device and that you follow the instructions given below closely when you set up, connect and use the XES-8G. Do not use the device in any way or for any purpose not described in this user manual. - Page 6 Do not expose the device to rain or moisture. Do not operate the device if any cover or component is missing, damaged or deformed. Refer any service operation not described in this manual to Swisson. Provide unrestricted airflow around the device.
-
Page 7: Device Overview
XES- 8G. Consult a qualified electrician, if you have any doubts about the proper installation. A blue Neutrik powerCON NAC3FCA cable mount connector must be used to supply power at the XES-8G’s power input socket. -
Page 8: Differentiated Services (Diffserv) Based Qos
• No matter what the AC mains power voltage is, the current drawn by all the devices that draw AC mains power from one of the power outlets of an XES-8G must not exceed a total of 19.8 amperes. That is 19.8 amperes for the primary PSU mains loop through output and another 19.8 amperes that may be drawn from the backup PSU mains loop... -
Page 9: Unlimited Broadcast Traffic
Ready to Forward Data Anytime Some network protocols like Art-Net allow updates to be sent out only sporadically. Therefore, the XES-8G does not enter a sleep mode even if no network traffic is observed at all. If an update is sent after a while of silence, the XES-... -
Page 10: Technical Data
Technical Data Ambient temperature ............... -30°C…55°C (-22°F…131°F) AC power .................. 100 - 240 V nominal, 50/60 Hz Typical power consumption ............6.5 W Ethernet (all ports) ..............1000BASE-T and 10BASE-T / 100BASE-TX, auto negoti- ating, auto MDI-X Ethernet ports ................8 Ethernet switch type .............. -
Page 11: Ordering Information
Ordering Information 10 42 18 XES-8G 8-port Gigabit Ethernet switch, rack mountable...
