Summary of Contents for Labgear HDM 2SP4K
- Page 1 HDM 2SP4K 2 way 4K HDMI splitter User Guide Supports: Full 3D Remote control via IR back channel Ultra HD 4K x 2K resolutions ® ULTRAHD...
- Page 2 Introduction: Your Labgear 2 way splitter splits the signal from a single HDMI source input to two HDMI display outputs simultaneously. The splitter supports full Ultra HD 4k x 2k (3840 x 2160) and dual stream 3D. The HD input device can either be controlled at source or remotely from any of the display locations using an IR receiver* with an HDMI break in adaptor and an IR emitter.
-
Page 3: Front Panel

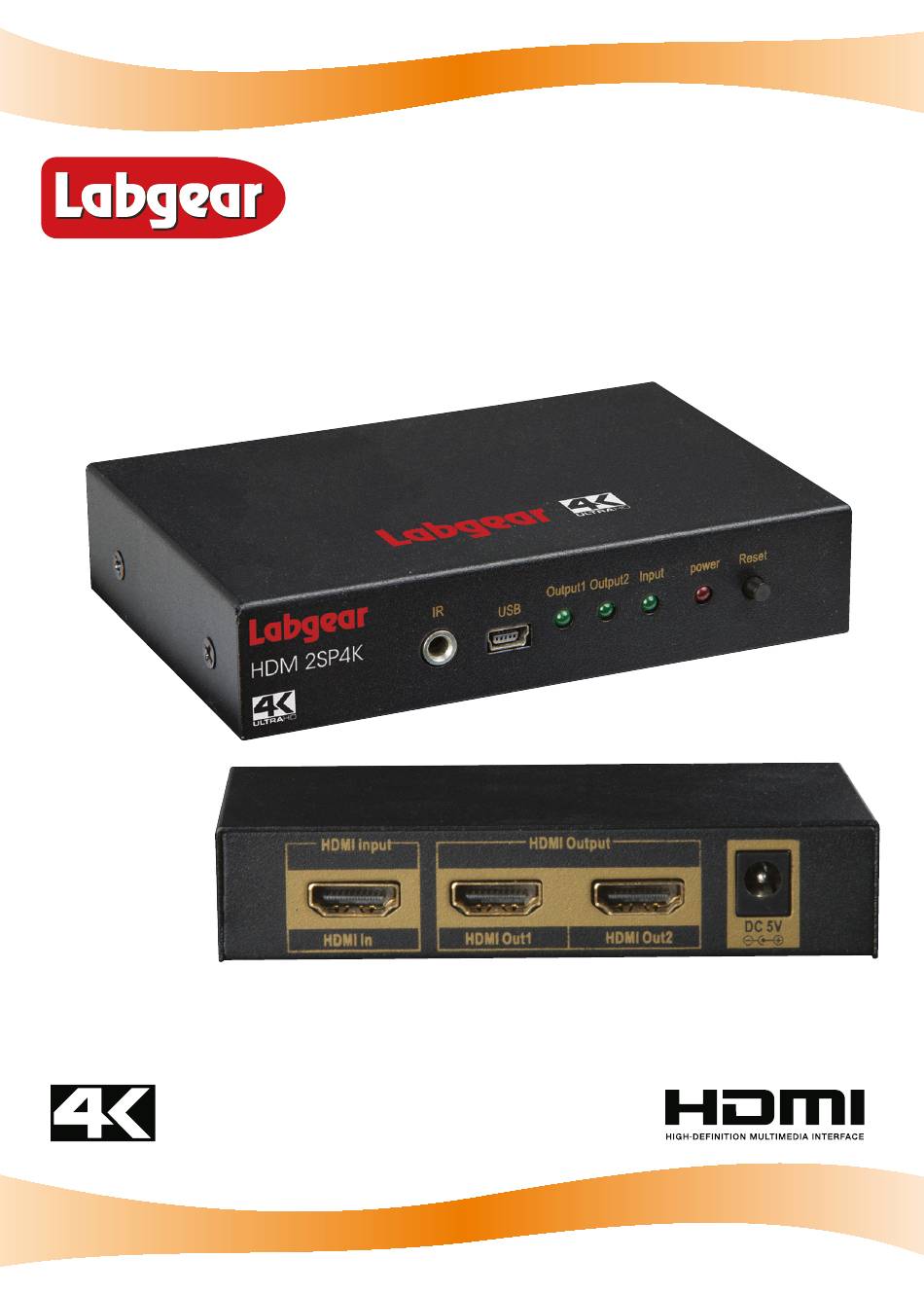

Front Panel Output1 Output2 Input Power Reset HDM 2SP4K Œ IR Output Œ Ž ‘ USB Input Ž HDMI Output LEDs HDMI Input LED Power LED ‘ Reset Button Rear Panel Power Supply HD Source e.g. - Page 4 Operation: 1. Use a 4k compatible HDMI lead (not more than 7m long) to connect the HD signal source (e.g. Blu-ray player, PS3, HD satellite box) to the HDMI input socket on the splitter. 2. Use two 4k compatible HDMI leads (not more than 7m long) to connect the two HD display devices (e.g.
- Page 5 Speci cations: Input Port 1x HDMI(Female connector) Output Port 2x HDMI(Female connector), 1 x IR Channel Input Lead Max Length for 4k - 7m, for 1080p - 20m Output Lead Max Length for 4k - 7m, for 1080p - 15m Bandwidth 10.2Gbps Output Resolution...
- Page 6 Technical Support For further information, please contact: Customer Careline: 08457 573 479 Local rate: UK Only www.labgear.co.uk Waste electrical and electronic products must not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority for recycling advice.
