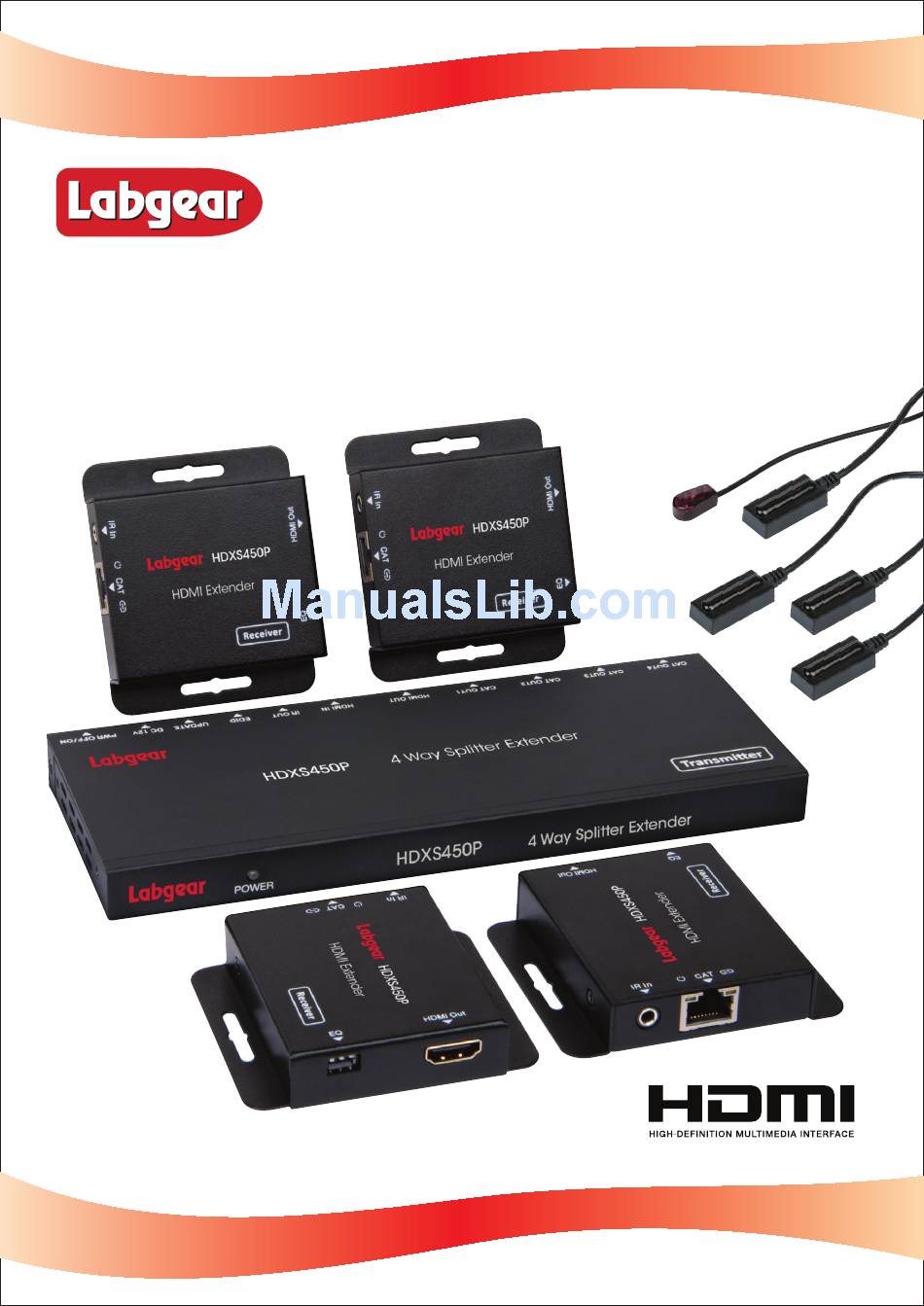

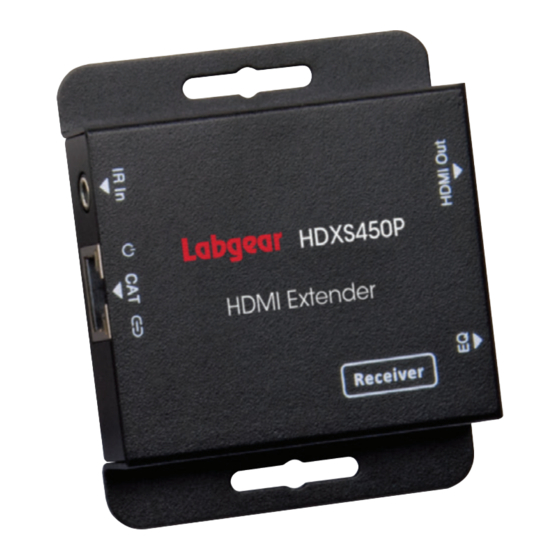

- Page 1 HDXS450P HDMI 50m 4 Way Splitter Extender Kit with POE over CAT 5e/6/7 User Guide ®...
- Page 2 General Safety • To prevent re or shock hazard, do not expose any part of this device to rain or moisture. • This product is for indoor use only • Do not expose the product to extreme heat • Do not disassemble any of the units in this kit they contain no user serviceable parts. Refer servicing to quali ed personnel only.
-
Page 3: Speci Cations
Speci cations Splitter/Transmitter Receivers Max.Pixel Clock: 165 MHz Max. Video Resolution: up to 1080p@60Hz Power Consumption 8W max Power Supply DC 12V �� 2.5A ESD Protection ± 8kV (air-gap discharge) Human Body Model ± 4kV (contact discharge) Operating Temperature 0°C ~ 40°C Storage Temperature 20°C ~ 60°C Relative Humidity... - Page 4 Typical Splitter Extender System Setup 1. Connect a source such as an HD Blu-ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI input (TX 4) on the Splitter/Transmitter unit. 2. Connect a display such as an HDTV or HD Projector to the HDMI output (RX-2) on the Receiving unit. 3.
- Page 5 IR Receiver and Blaster Connections 4x IR Receiver Cables 1x IR Blaster Cable IR Cable Pin Assignment IR Blaster IR Receiver Sensor To control the source AV device (Blu-ray player or DVD player, etc) from the display location using a remote control: 1.
- Page 6 EDID Control Under normal circumstances, a source device (digital and analog) will require information about a connected device/display to assess what resolutions and features are available. The source can then adjust its output to send only resolutions and features that are compatible with the attached device/display. This information is called EDID (Extended Display Information Data) and a source device can only accept and read one EDID from a connected device/display.
-
Page 7: Troubleshooting
Receiver Equaliser distance adjustment If you see ickering or blinking image on the display, adjust the EQ switch to improve the cable skew. MAX stands for the strongest HDMI signal level for the longest possible transmission length while MIN stands for the weakest HDMI signal level for short transmission length. -
Page 8: Technical Support
Technical Support For further information, please contact: Customer Careline: 08457 573 479 Local rate: UK Only www.labgear.co.uk Waste electrical and electronic products must not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority for recycling advice.
