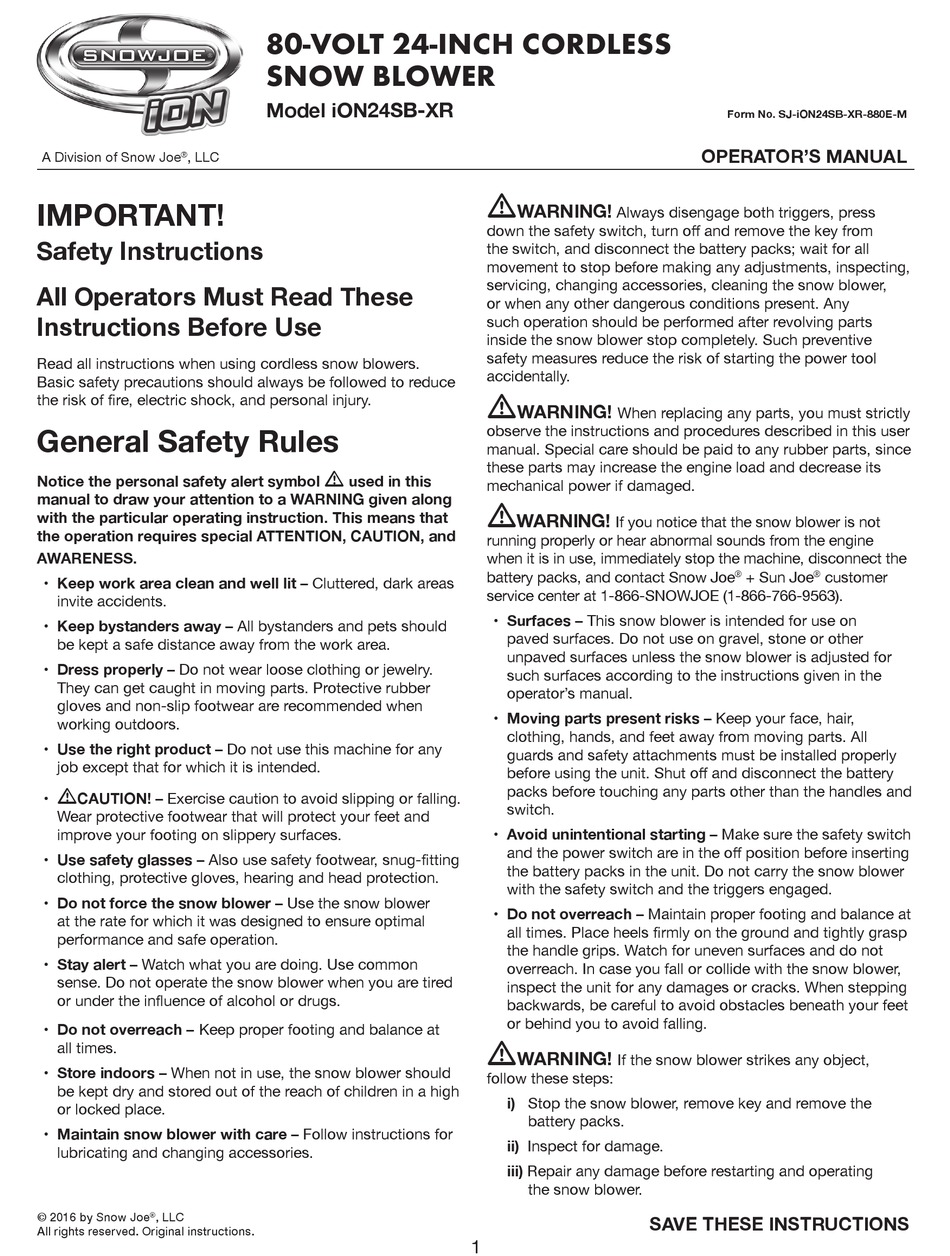

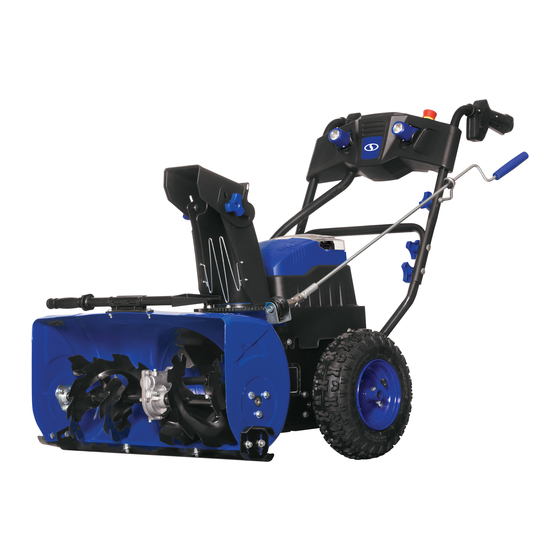

SNOWJOE iON24SB-XR Operator's Manual

80-volt 24-inch cordless snow blower

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

A Division of Snow Joe

, LLC

IMPORTANT!

Safety Instructions

All Operators Must Read These

Instructions Before Use

Read all instructions when using cordless snow blowers.

Basic safety precautions should always be followed to reduce

the risk of fire, electric shock, and personal injury.

General Safety Rules

Notice the personal safety alert symbol

manual to draw your attention to a WARNING given along

with the particular operating instruction. This means that

the operation requires special ATTENTION, CAUTION, and

AWARENESS.

• Keep work area clean and well lit – Cluttered, dark areas

invite accidents.

• Keep bystanders away – All bystanders and pets should

be kept a safe distance away from the work area.

• Dress properly – Do not wear loose clothing or jewelry.

They can get caught in moving parts. Protective rubber

gloves and non-slip footwear are recommended when

working outdoors.

• Use the right product – Do not use this machine for any

job except that for which it is intended.

CAUTION! – Exercise caution to avoid slipping or falling.

•

Wear protective footwear that will protect your feet and

improve your footing on slippery surfaces.

• Use safety glasses – Also use safety footwear, snug-fitting

clothing, protective gloves, hearing and head protection.

• Do not force the snow blower – Use the snow blower

at the rate for which it was designed to ensure optimal

performance and safe operation.

• Stay alert – Watch what you are doing. Use common

sense. Do not operate the snow blower when you are tired

or under the influence of alcohol or drugs.

• Do not overreach – Keep proper footing and balance at

all times.

• Store indoors – When not in use, the snow blower should

be kept dry and stored out of the reach of children in a high

or locked place.

• Maintain snow blower with care – Follow instructions for

lubricating and changing accessories.

, LLC

80-VOLT 24-INCH CORDLESS

SNOW BLOWER

Model iON24SB-XR

used in this

WARNING!

Always disengage both triggers, press

down the safety switch, turn off and remove the key from

the switch, and disconnect the battery packs; wait for all

movement to stop before making any adjustments, inspecting,

servicing, changing accessories, cleaning the snow blower,

or when any other dangerous conditions present. Any

such operation should be performed after revolving parts

inside the snow blower stop completely. Such preventive

safety measures reduce the risk of starting the power tool

accidentally.

WARNING!

When replacing any parts, you must strictly

observe the instructions and procedures described in this user

manual. Special care should be paid to any rubber parts, since

these parts may increase the engine load and decrease its

mechanical power if damaged.

WARNING!

If you notice that the snow blower is not

running properly or hear abnormal sounds from the engine

when it is in use, immediately stop the machine, disconnect the

battery packs, and contact Snow Joe

service center at 1-866-SNOWJOE (1-866-766-9563).

• Surfaces – This snow blower is intended for use on

paved surfaces. Do not use on gravel, stone or other

unpaved surfaces unless the snow blower is adjusted for

such surfaces according to the instructions given in the

operator's manual.

• Moving parts present risks – Keep your face, hair,

clothing, hands, and feet away from moving parts. All

guards and safety attachments must be installed properly

before using the unit. Shut off and disconnect the battery

packs before touching any parts other than the handles and

switch.

• Avoid unintentional starting – Make sure the safety switch

and the power switch are in the off position before inserting

the battery packs in the unit. Do not carry the snow blower

with the safety switch and the triggers engaged.

• Do not overreach – Maintain proper footing and balance at

all times. Place heels firmly on the ground and tightly grasp

the handle grips. Watch for uneven surfaces and do not

overreach. In case you fall or collide with the snow blower,

inspect the unit for any damages or cracks. When stepping

backwards, be careful to avoid obstacles beneath your feet

or behind you to avoid falling.

WARNING!

If the snow blower strikes any object,

follow these steps:

i) Stop the snow blower, remove key and remove the

battery packs.

ii) Inspect for damage.

iii) Repair any damage before restarting and operating

the snow blower.

SAVE THESE INSTRUCTIONS

Form No. SJ-iON24SB-XR-880E-M

OPERATOR'S MANUAL

+ Sun Joe

customer

Table of Contents

Need help?

Do you have a question about the iON24SB-XR and is the answer not in the manual?

Questions and answers

Summary of Contents for SNOWJOE iON24SB-XR

Page 1 ® ® • Keep work area clean and well lit – Cluttered, dark areas service center at 1-866-SNOWJOE (1-866-766-9563). invite accidents. • Surfaces – This snow blower is intended for use on • Keep bystanders away – All bystanders and pets should paved surfaces.
Page 2: Battery + Charger Safety Instructions
® ® 1-866-SNOWJOE (1-866-766-9563) for assistance. • Avoid dangerous environments – Do not charge the • Battery chemicals cause serious burns – Never let a battery pack in rain, snow or in damp or wet locations.
Page 3: Information About The Battery
® ® ® 1. The battery packs supplied with your cordless snow customer service center at 1-866-SNOWJOE blower are only partially charged. The battery packs have (1-866-766-9563). to be charged completely before you use the tool for the 3. Electrical plugs must match the outlet. Never modify first time.
Page 4: Additional Safety Instructions
Snow Joe + Sun Joe customer ® ® ® service center at 1-866-SNOWJOE (1-866-766-9563) for Snow Blowers assistance. • Noise control – When using the snow blower, respect WARNING! Rotating impeller can cause serious injury. the local laws and regulations regarding noise control and Never attempt to unclog or clean unit while auger is running.
Page 5: Electrical Safety
• Skid shoes – Adjust skid shoes to clear gravel or crushed rock surfaces safely. • Prevent unauthorized use – Never leave snow blower unattended with key in. Always stop the motor, remove the key and battery packs to prevent unauthorized use. • Check all controls frequently –...
Page 6: Safety Symbols
Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand WARNING! Do not expose the and follow all instructions in the unit to rain or wet conditions.
Page 7: Technical Data
Know Your Cordless Snow Blower Read the owner’s manual and safety rules carefully before operating your cordless snow blower. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
Page 8: Carton Contents
+ Sun Joe customer service center at ® ® 1-866-SNOWJOE (1-866-766-9563). NOTE: Do not discard the shipping carton and packaging material until you are ready to use the electric snow thrower. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations or save the packaging for long-term product storage.
Page 9 Discharge Chute Assembly 2. Remove the cotter pin from the chute control head (Fig. 3). 1. Place the discharge chute assembly onto the gear plate, Fig. 3 aligning the 4 holes in the gear plate, and push down until the chute is flush and flat against the housing (Fig. 6). Fig.
Page 10: Battery Pack Operation
Chute Clean-Out Tool 4. Make certain the entire bottom surface of skid shoe is against the ground to avoid uneven wear on the skid The chute clean-out tool is fastened to the top of the auger shoes. housing with a mounting clip (Fig. 9). 5.
Page 11: Charging The Battery Packs
+ Sun Joe customer service center at ® ® 1-866-SNOWJOE (1-866-766-9563) for assistance. Fig. 11 6. When charging is complete, remove the battery from the charger by pulling the push lock button and sliding the battery backward to unlock it from the charger (Fig. 13).
Page 12: Controls & Features
Lithium-Ion Charging Status Fig. 15 LED Lights button Battery Pack Red Charger Charging Temperature Indicator Light Status Too hot Flashing Not charging Normal range Continuous Normal charging Too cold Flashing Not charging Controls + Features WARNING! AVOID INJURY. Read and understand the entire safety section before proceeding.
Page 13 To clear the discharge chute: Fig. 17 1. Release both the auger trigger and the drive trigger. 2. Press the safety switch down and turn the key to OFF position. Remove the key. STOP 3. Wait 10 seconds and make sure impeller blades have stopped rotating.
Page 14: Emergency Stop
Starting the Machine Always orient the discharge chute in the opposite direction from where the operator, bystanders, surrounding vehicles, or IMPORTANT! Disengage safety switch and release both windows are located. triggers before turning power switch to ON position. Scraper Blade 1.
Page 15 To Engage Auger 2. Squeeze drive trigger against the left-handle and the snow blower will move. Release it and drive motion will stop NOTE: Auger trigger should be engaged before drive trigger (Fig. 24). when throwing snow. 1. To engage the auger, press the safety button then squeeze Fig.
Page 16: Stopping The Machine
Auger trigger 2. Engage drive trigger without engaging auger trigger. (Right-handle) Maintenance To order genuine replacement parts or accessories for the Snow Joe iON24SB-XR cordless snow blower, please visit ® snowjoe.com or contact the Snow Joe + Sun Joe customer ®...
Page 17: Check Tire Pressure
3. Use only mild soap on a damp cloth to clean the battery pack and charger, keeping away from all electrical Fig. 27 contacts. Certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia.
Page 18 Call the Snow Joe + Sun Joe customer service ® ® center at 1-866-SNOWJOE (1-866-766-9563) for assistance. Occasionally a foreign object may enter the auger/impeller Battery housing and jam the auger, breaking the shear bolts which Screw + compartment secure the auger to the shaft.
Page 19 4. Disassemble the housing by removing the cotter pin from 7. Disassemble the auger and impeller by removing the nuts the chute control head and 6 housing bolts (3 on each and bolts from the side of the auger housing (Fig. 36). side) then remove the chute crank (Fig.
Page 20: Replacing Drive Belt
Replacing Impeller Fig. 41 1. To uninstall the impeller, repeat steps 1 to 7 (Figs. 30 – 36). Open motor cover 2. Disassemble the worn impeller from the impeller shaft by removing the 2 spring pins (Fig. 39). Fig. 39 Spring pin Impeller 3.
Page 21: Auger Gearcase
2. Remove the nuts and bolts from each side of the tire axle, 5. Remove the drive belt (Fig. 47). as shown (Fig. 44). Fig. 47 Tire Fig. 44 Nut + bolt Drive belt 6. Roll the new drive belt onto the gear assembly then 3.
Page 22: Battery Caution + Disposal Information
As with other battery pack types, permanent capacity loss can result if the pack If your Snow Joe iON24SB-XR cordless snow blower requires ® is stored for long periods of time at high temperatures service or maintenance, please call the Snow Joe ®...
Page 23: Federal Communications Commission (Fcc)
iCHRG40-DPC Federal Communications Commission (FCC) WARNING! Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Class B device: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
Page 24 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at snowjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ®...
Page 25 NOTES...
Page 26 NOTES...
Page 27 Service Department at 1-866-SNOWJOE (1-866-766-9563), by This Warranty is only valid if the Machine is used and maintained e-mailing us at help@snowjoe.com or by mailing in your yellow in accordance with the instructions, warnings and safeguards registration card. Failure to register your product purchase will not contained in the owner’s manual.
Page 28 WARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known [to the State of California] to cause cancer, birth defects, or other reproductive harm. Some examples of these chemicals are: • lead from lead-based paints, •...
