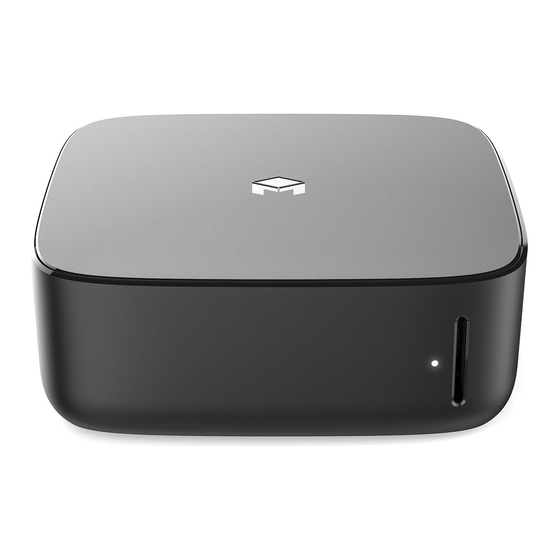

Photo storage & management device
Table of Contents

Advertisement

Available languages

Available languages

OWNER'S MANUAL
& INSTALLATION INSTRUCTIONS
MODEL 217
(217A / 217B / 217C / 217D / 217E)
PHOTO STORAGE & MANAGEMENT DEVICE
217-ENG-FR-DE-REV01
www.getmonument.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 217 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Monument 217 Series

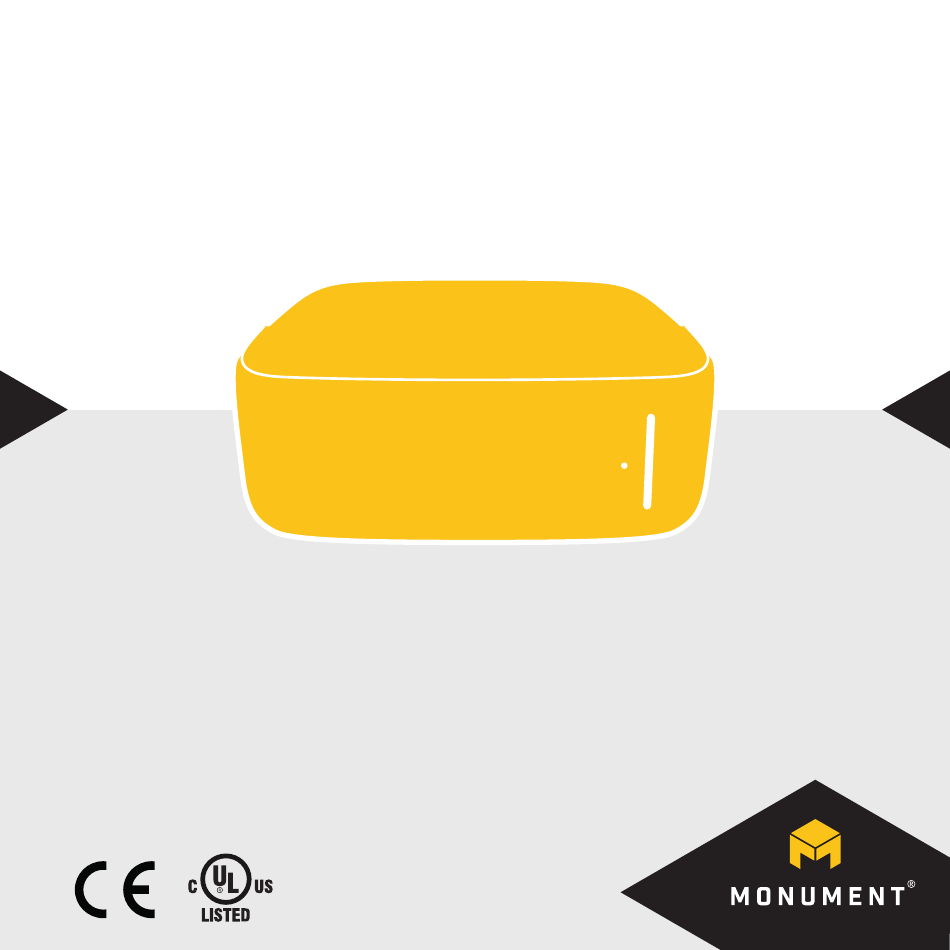

  • Page 1 OWNER’S MANUAL & INSTALLATION INSTRUCTIONS MODEL 217 (217A / 217B / 217C / 217D / 217E) PHOTO STORAGE & MANAGEMENT DEVICE 217-ENG-FR-DE-REV01 www.getmonument.com...
  • Page 2: Warranty Restrictions

    FULL 1-YEAR WARRANTY If this product fails due to a defect in material or workmanship within one year from the date of purchase, Monument Labs will at its option repair or replace it free of charge. Shipping costs are not covered.
  • Page 3: Electrical Requirements

    ELECTRICAL REQUIREMENTS The included power supply can operate between 100-240 V AC, and provides 5 V DC power to the device with sufficient power to simultaneously operate two USB-based external portable drives (not included). The power provided for each drive is limited to 500 mA.
  • Page 4: Safety Requirements

    3. Do not use the device if the power supply has been damaged. 4. Do not use a power supply other than the one provided by Monument Labs. 5. Do not insert foreign objects into the device.
  • Page 5 SAFETY REQUIREMENTS 9. Do not store anything other than a maximum of two external portable drives in the drive storage bay. 10. Do not move or relocate the device unless all external portable drives in the drive bay are disconnected and removed first per instructions in the OPERATION section.
  • Page 6: Operation

    5. Turn the device on by plugging in the power. The device will power on in less than a minute and the light in front will start blinking blue. 6. Install the Monument app on your smartphone or tablet. Go to www.getmonument.com/apps to find the right app for your mobile device.
  • Page 7 3. All of the new content will be analyzed and organized by the device. LED INDICATOR Your Monument device has an indicator light in front. It allows you to check its status at a quick glance. Solid White: Idle, functioning normally.
  • Page 8: Normal Operation

    OPERATION NORMAL OPERATION 1. SD cards can be plugged in and removed while the light in the front is white. 2. The device can be powered down by disconnecting the power when the light is solid white. 3. New external portable drives can be added either when the device is powered on, or when off.
  • Page 9: Product Information

    40mm (3/2”) Height x 83mm (3-1/4”) Width x 120mm (4-3/4”) Depth LEGAL By using your Monument device, you agree to our Terms of Use and Privacy Policy, use limitations, and liability limitations. Please visit www.getmonument.com/terms to review our terms. Additional information about product safety, regulations, and legal notices can be found at www.getmonument.com/legal.
  • Page 10: Troubleshooting

    TROUBLESHOOTING If the device is not functioning as expected, please check the front light: Red: Firmware or hardware error. Visit www.getmonument.com/trouble- shooting. Blinking Blue: The device requires user attention. Follow the instructions on the mobile app. No Light: Check if the power supply is connected to a wall outlet and to the device.
  • Page 11 . g e t m o n u m e n t . c o m 321 N Clark St., Suite 2550 Chicago, IL 60654 Copyright © 2018 Monument Labs, Inc.
  • Page 12: Manuel Du Propriétaire

    MANUEL DU PROPRIÉTAIRE & INSTRUCTIONS D’INSTALLATION MODÈLE 217 (217A / 217B / 217C / 217D / 217E) DISPOSITIF DE GESTION DE STOCKAGE ET DE GESTION DE PHOTOS 217-ENG-FR-DE-REV01 www.getmonument.com...
  • Page 13: Garantie

    Si ce produit tombe en panne en raison d’un défaut de matériel ou de fabrication dans un délai d’un an à compter de la date d’achat, Monument Labs le réparera ou le remplacera gratuitement à sa seule discrétion. Les frais de port ne sont pas couverts.
  • Page 14: Exigences Électriques

    EXIGENCES ÉLECTRIQUES L’alimentation incluse peut fonctionner entre 100 et 240 V CA et fournit une alimentation de 5 V CC à l’appareil avec une puissance suffisante pour faire fonctionner simultanément deux lecteurs portables externes USB (non inclus). La puissance fournie pour chaque variateur est limitée à 500 mA. Si votre lecteur externe portatif nécessite plus de puissance, vous devrez l’alimenter de l’extérieur selon les instructions et les recommandations du fabricant.
  • Page 15: Exigences De Sécurité

    3. N’utilisez pas l’appareil si l’alimentation électrique a été endommagée. 4. N’utilisez pas une source d’alimentation autre que celle fournie par Monument Labs. 5. N’insérez pas d’objets étrangers dans l’appareil. 6. N’utilisez pas l’appareil s’il fonctionne mal ou s’il a été endommagé. Renvoyez l’appareil au fabricant pour tout examen, réparations électriques ou...
  • Page 16 EXIGENCES DE SÉCURITÉ 9. Ne stockez rien d’autre qu’un maximum de deux lecteurs portables externes dans le compartiment du disque. 10. Ne déplacez pas l’appareil à moins que tous les lecteurs portables externes du compartiment du disque soient déconnectés et retirés, conformément aux instructions de la section FONCTIONNEMENT.
  • Page 17: Configuration Initiale

    5. Allumez l’appareil en branchant l’alimentation. L’appareil s’allume en moins d’une minute et la lumière à l’avant commence à clignoter en bleu. 6. Installez l’application Monument sur votre smartphone ou tablette. Rendez-vous sur www.getmonument.com/apps pour trouver l’application dédiée pour votre appareil mobile. Installez et lancez l’application, et suivez...
  • Page 18 FONCTIONNEMENT STOCKAGE DE VOS PHOTOS SUR MONUMENT 1. Les photos de votre smartphone ou de votre tablette peuvent être automatiquement transférées lorsque vous commencez à utiliser les applications Monument. 2. Insérez la carte SD de votre appareil photo numérique pour importer automatiquement toutes vos données.
  • Page 19: Voyant Led

    FONCTIONNEMENT VOYANT LED Votre appareil Monument dispose d’un voyant lumineux à l’avant. Il est ainsi facile de vérifier l’état en un coup d’œil. Blanc fixe : Inactif, fonctionne normalement. Blanc clignotant : Traitement du contenu. Bleu clignotant : Action de l’utilisateur requise, veuillez vérifier votre application mobile.
  • Page 20: Fonctionnement Normal

    FONCTIONNEMENT FONCTIONNEMENT NORMAL 1. Les cartes SD peuvent être branchées et retirées lorsque la lumière à l’avant est blanche. 2. L’appareil peut être mis hors tension en coupant l’alimentation lorsque le voyant est blanc fixe. 3. De nouveaux lecteurs portables externes peuvent être ajoutés lorsque l’appareil est allumé...
  • Page 21: Informations Sur Le Produit

    40mm (3/2”) Hauteur x 83mm (3-1 /4”) Largeur x 120mm (4-3/4”) Profondeur LÉGAL En utilisant votre appareil Monument, vous acceptez nos conditions d’utilisation et notre politique de confidentialité, les limitations d’utilisation et les limitations de responsabilité. Veuillez visiter www.getmonument.com/terms pour consulter nos conditions.
  • Page 22: Dépannage

    DÉPANNAGE Si l’appareil ne fonctionne pas comme prévu, vérifiez le voyant avant : Rouge : erreur de micro logiciel ou de matériel. Visitez www.getmonument.com/troubleshooting. Bleu clignotant : L’appareil nécessite l’attention de l’utilisateur. Suivez les instructions sur l’application mobile. Aucun voyant : Vérifiez si l’alimentation électrique est connectée à une prise murale et à...
  • Page 23 . g e t m o n u m e n t . c o m 321 N Clark St., Suite 2550 Chicago, IL 60654 Copyright © 2018 Monument Labs, Inc.
  • Page 24 BEDIENUNGS- & INSTALLATIONSANLEITUNG MODELL 217 (217A / 217B / 217C / 217D / 217E) FOTOSPEICHER & VERWALTUNGSGERÄT 217-DE-FR-REV01 www.getmonument.com...
  • Page 25 GARANTIE KOMPLETTE 1-JAHR-GARANTIE Wenn dieses Produkt innerhalb eines Jahres nach dem Kaufdatum aufgrund eines Material- oder Herstellungsfehlers versagt, wird Monument Labs es nach eigenem Ermessen kostenlos reparieren oder ersetzen. Die Versandkosten werden damit nicht abgedeckt. GARANTIEBESCHRÄNKUNGEN In diesem Gerät befinden sich keine Teile, die vom Kunden gewartet werden können.
  • Page 26: Elektrische Anforderungen

    ELEKTRISCHE ANFORDERUNGEN Das mitgelieferte Netzteil kann zwischen 100-240 V AC betrieben werden und versorgt das Gerät mit 5 V Gleichstrom, um ausreichend Strom zu liefern, damit gleichzeitig zwei externe portable USB-basierte Laufwerke (nicht im Lieferumfang enthalten) betrieben werden können. Die für jeden Frequenzumrichter bereitgestellte Leistung ist auf 500 mA begrenzt.
  • Page 27: Wichtige Sicherheitsanweisungen

    Orten wie in der Nähe von Badewannen oder in einem feuchten Keller. 3. Verwenden Sie das Gerät nicht, wenn das Netzteil beschädigt wurde. 4. Verwenden Sie kein anderes als das von Monument Labs zur Verfügung gestellte Netzteil. 5. Führen Sie keine Fremdkörper in das Gerät ein.
  • Page 28 SICHERHEITSBESTIMMUNGEN 9. Lagern Sie nur maximal zwei externe tragbare Laufwerke im Laufwerksschacht. 10. Bewegen oder verschieben Sie das Gerät nicht, es sei denn, alle externen tragbaren Laufwerke im Laufwerkschacht wurden vorher getrennt und entfernt, wie im Abschnitt BEDIENUNG beschrieben. Stellen Sie das Gerät auf eine flache, ebene Fläche, die mindestens 61 cm (24 Zoll) von Wärmequellen wie Bereichen oder Raumheizungen entfernt ist.
  • Page 29: Bedienung

    Gerät schaltet sich in weniger als einer Minute ein und die Leuchtanzeige an der Vorderseite beginnt blau zu blinken. 6. Installieren Sie die Monument App auf Ihrem Smartphone oder Tablet. Unter www.getmonument.com/apps finden Sie die richtige App für Ihr Mobilgerät.
  • Page 30: Led-Anzeige

    3. Der gesamte neue Inhalt wird vom Gerät analysiert und organisiert. LED-ANZEIGE Ihr Monument-Gerät besitzt eine Leuchtanzeige an der Vorderseite. Es ermöglicht Ihnen, seinen Status auf einen Blick zu überprüfen. Weiß, gleichbleibend : Leerlauf, normaler Betrieb. Weiß, blinkend : Inhalt wird verarbeitet.
  • Page 31 BEDIENUNG NORMALE BEDIENUNG 1. SD-Karten können eingesteckt und entfernt werden, während das Licht an der Vorder seite weiß leuchtet. 2. Das Gerät kann ausgeschaltet werden, indem die Stromversorgung unterbrochen wird, wenn das Licht dauerhaft weiß leuchtet. 3. Neue externe tragbare Laufwerke können entweder beim Einschalten des Geräts oder beim Ausschalten verbunden werden.
  • Page 32: Spezifikationen

    Abmessungen für Laufwerkposition : 40mm (3/2 Zoll) Höhe x 83mm (3-1/4 Zoll) Breite x 120mm (4-3 / 4 Zoll) Tiefe RECHTLICH Indem Sie Ihr Monument-Gerät verwenden, stimmen Sie unseren Nutzungsbedingungen und Datenschutzrichtlinien, sowie den Nutzungsbeschränkungen und Haftungsbeschränkungen zu. Bitte besuchen Sie www.getmonument.com/terms, um unsere Bestimmungen zu überprüfen.
  • Page 33: Fehlerbehebung

    FEHLERBEHEBUNG Wenn das Gerät nicht wie erwartet funktioniert, überprüfen Sie bitte die Forntanzeige: Rot : Firmware- oder Hardwarefehler. Besuchen Sie www.getmonument.com/troubleshooting. Blau, blinkend : Das Gerät erfordert die Aufmerksamkeit des Benutzers. Befolgen Sie die Anweisungen in der mobilen App. Kein Licht : Überprüfen Sie, ob das Netzteil an eine Steckdose und an das Gerät angeschlossen ist.
  • Page 34 Behandlung von giftigen Substanzen beitragen. w w w . g e t m o n u m e n t . c o m 321 N Clark St., Suite 2550 Chicago, IL 60654 Copyright © 2018 Monument Labs, Inc.
