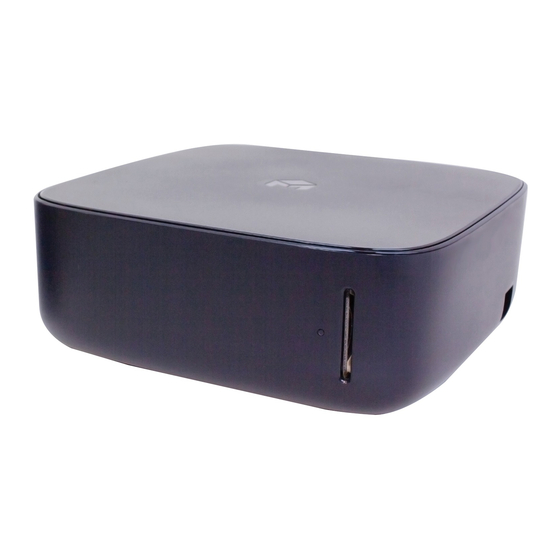

217 series. photo management device

Advertisement

OWNER'S MANUAL
& INSTALLATION INSTRUCTIONS
MODEL 217
MONUMENT PHOTO MANAGEMENT DEVICE
217-US-ENG-REV01
www.getmonument.com
(217A12 / 217B12 / 217C12 / 217D12 / 217E12)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 217A12 and is the answer not in the manual?

Questions and answers

Summary of Contents for Monument 217A12

  • Page 1 OWNER’S MANUAL & INSTALLATION INSTRUCTIONS MODEL 217 (217A12 / 217B12 / 217C12 / 217D12 / 217E12) MONUMENT PHOTO MANAGEMENT DEVICE 217-US-ENG-REV01 www.getmonument.com...
  • Page 2: Warranty Restrictions

    FULL 1-YEAR WARRANTY If this product fails due to a defect in material or workmanship within one year from the date of purchase, Monument Labs will at its option repair or replace it free of charge. Shipping costs are not covered.
  • Page 3: Electrical Requirements

    ELECTRICAL REQUIREMENTS In the United States, a 115 V, 60 Hz AC-only electrical supply is required. The included power supply can operate between 100-240 V AC, and provides 5 V DC power to the device with sufficient power to simultaneously operate two USB-based external portable drives (not included).
  • Page 4: Safety Requirements

    3. Do not use the device if the power supply has been damaged. 4. Do not use a power supply other than the one provided by Monument Labs. 5. Do not insert foreign objects into the device. 6. Do not use the device if it malfunctions or has been damaged. Return the device to the manufacturer for examination, electrical, or mechanical repairs.
  • Page 5 SAFETY REQUIREMENTS 9. Do not store anything other than a maximum of two external portable drives in the drive storage bay. 10. Do not move or relocate the device unless all external portable drives in the drive bay are disconnected and removed first per instructions in the OPERATION section. Place the device on a flat, level surface at least 24 inches (61 cm) away from heat sources such as ranges or space heaters.
  • Page 6: Operation

    5. Turn the device on by plugging in the power. The device will power on in less than a minute and the light in front will start blinking blue. 6. Install the Monument app on your smartphone or tablet. Go to www.getmonument.com/apps to find the right app for your mobile device. Install and...
  • Page 7 OPERATION STORING YOUR PHOTOS ON MONUMENT 1. Photos from your smartphone or tablet can be automatically transferred when you start using Monument apps. 2. Insert the SD card from your digital camera to automatically import all of your content. 3. All of the new content will be analyzed and organized by the device.
  • Page 8: Led Indicator

    OPERATION LED INDICATOR Your Monument device has an indicator light in front. It allows you to check its status at a quick glance. Solid White: Idle, functioning normally. Blinking White: Processing content. Blinking Blue: User action required, please check your mobile app.
  • Page 9: Normal Operation

    OPERATION NORMAL OPERATION 1. SD cards can be plugged in and removed while the light in the front is white. 2. The device can be powered down by disconnecting the power when the light is solid white. 3. New external portable drives can be added either when the device is powered on, or when off.
  • Page 10: Product Information

    20mm (3/4”) Height x 83mm (3-1/4”) Width x 120mm (4-3/4”) Depth LEGAL By using your Monument device, you agree to our Terms of Use and Privacy Policy, use limitations, and liability limitations. Please visit www.getmonument.com/terms to review our terms. Additional information about product safety, regulations, and legal notices can...
  • Page 11: Troubleshooting

    TROUBLESHOOTING If the device is not functioning as expected, please check the front light: Red: Firmware or hardware error. Visit www.getmonument.com/troubleshooting. Blinking Blue: The device requires user attention. Follow the instructions on the mobile app. No Light: Check if the power supply is connected to a wall outlet and to the device. For additional support visit www.getmonument.com/support.
  • Page 12 . g e t m on u m e n t . co m 605 N. Michigan Ave., 4th Floor Chicago, IL 60611 Copyright © 2016 Monument Labs, Inc.
