Paasche Airbrush HG-08A Instruction Manual

I NS T RUCTIO N M AN U A L

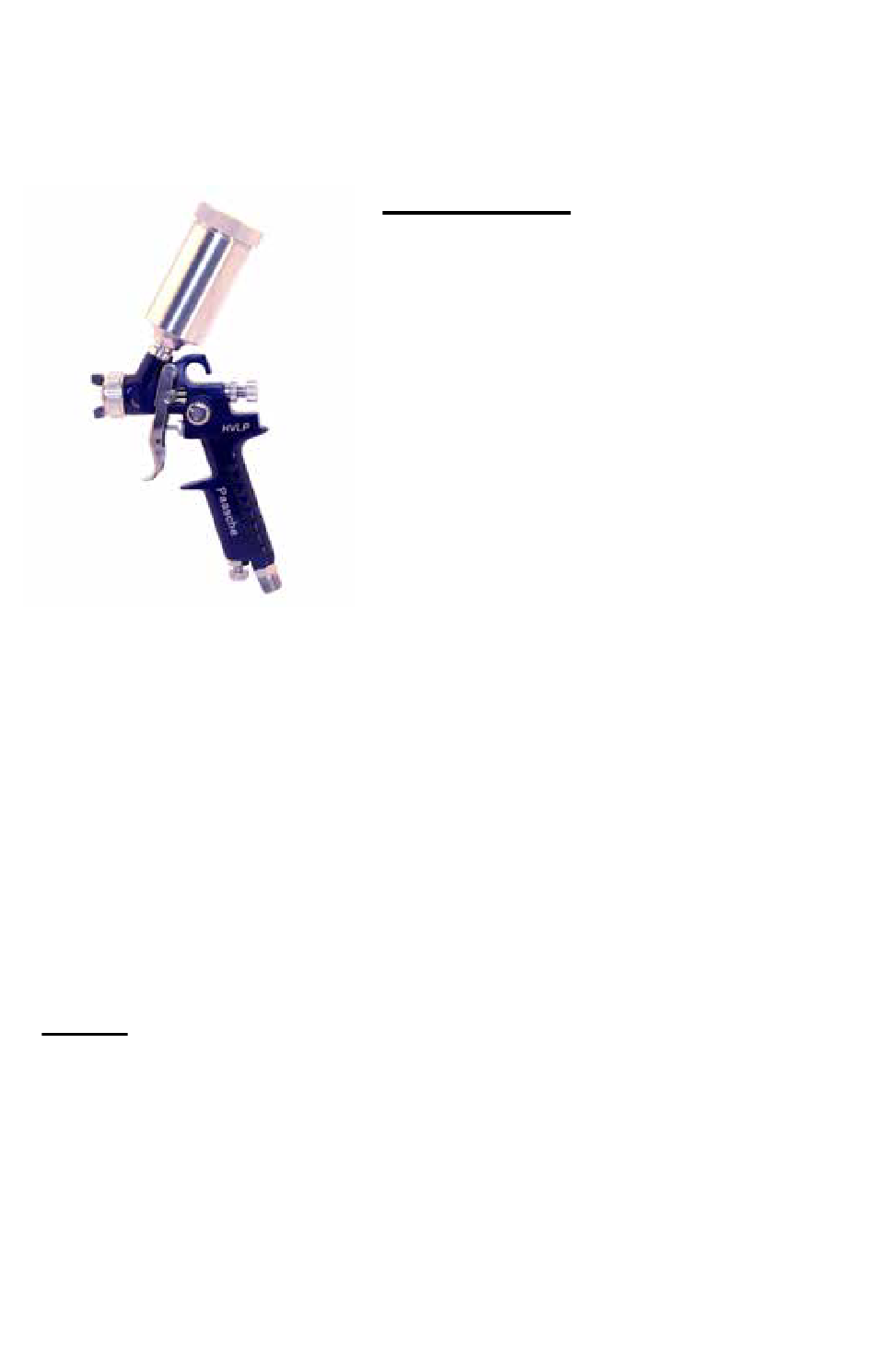

HG-08A HVLP SPRAY GUN

Specification:

Part Number:
Type:
Head Size:
Air Volume:
Air Pressure:
Air Inlet:
Cup size:
Spray Pattern:
Weight:
Finish:

Setup:

1. Blow out all airline hoses before connecting to the spray gun
to remove foreign particles.
2. Connect air hose to air inlet fitting.
3. Connect fluid cup or fluid hose to fluid inlet.
4. Tighten all hose connections securely.
5. Adjust air pressure to required amount at the regulator.
6. Adjust fluid volume by turning the fluid control knob.
7. The Fan pattern is controlled by turning the fan control Knob
8. Test spray on some cardboard or news paper for final
adjustment before spraying your project.

Description:

HG- Manual Spray Guns are for use
from Low to Medium Pressure with
Light to Medium. They will cover a
range of materials to include enamels,
latex, lacquers, acrylics etc. These
Models require 2 to 4 C.F.M. at 20-
40 lbs. Air Pressure depending on
thickness of Material being sprayed.
Tip and needle are made of Stainless
Steel and can handle water or solvent
based materials.
HG-08A
HVLP Gravity Feed
.8mm (Optional sizes .5mm & 1mm)
2-4 CFM
20-40 PSI
¼" NPT thread
3 oz (27SC) - (Optional 8oz (28SC)
1" to 7"
.90 Lbs
Blue / Silver
INSTRUCTION MANUAL HG-08A 11-5-2018
Paasche Airbrush Company
9511 58th Place
Kenosha, WI 53144
Ph: 773-867-9191 • Fax: 773-867-9198
Website: www.paascheairbrush.com
E-Mail: info@paascheairbrush.com
