Paasche Airbrush LXS-14 Instruction Manual

I NSTRUC TION M AN U AL

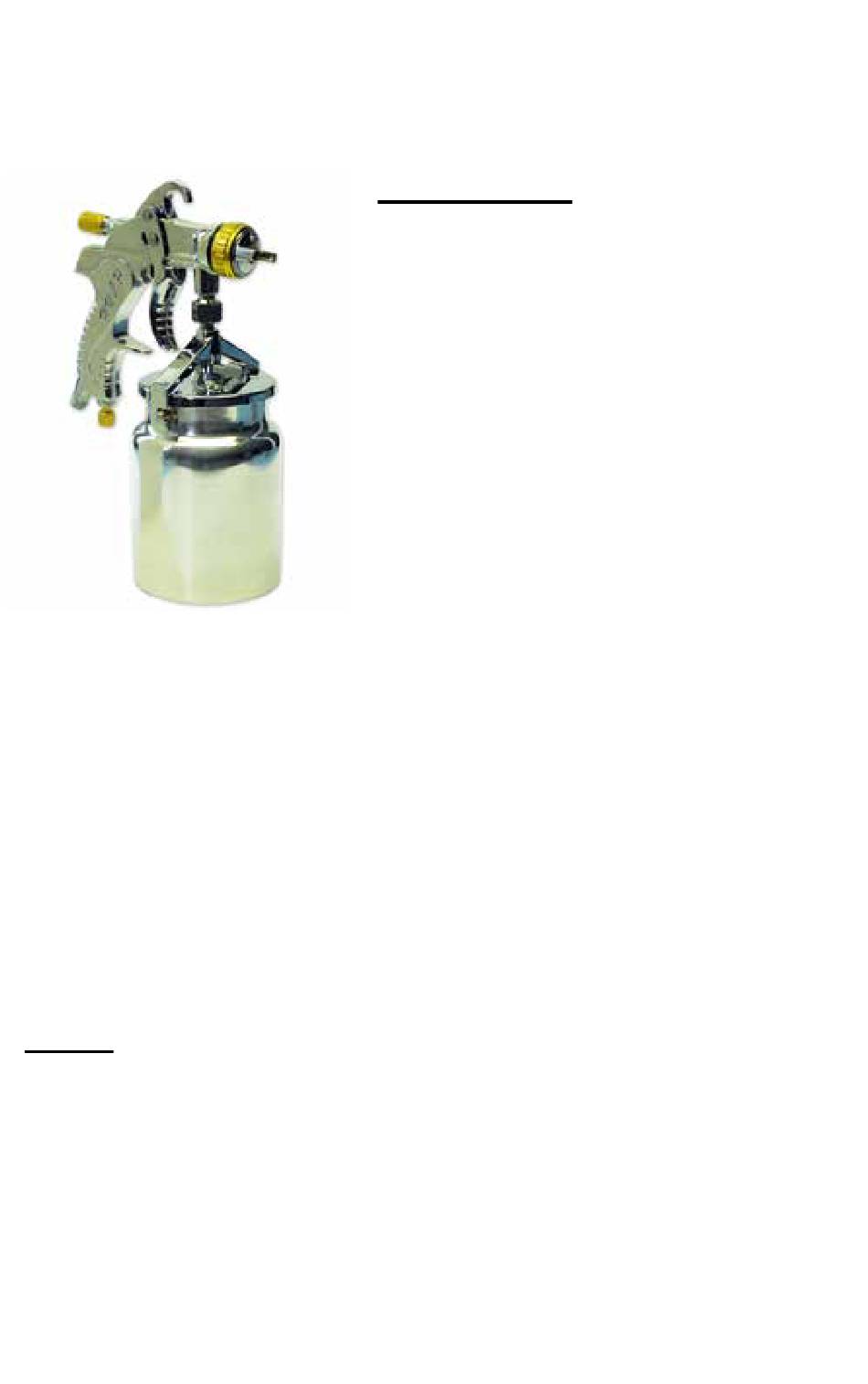

LXS HVLP SPRAY GUN
Specification:
Part Number:
Type:
Head Size:
Air Volume:
Air Pressure:
Air Inlet:
Cup size:
Spray Pattern:
Weight:
Finish:
Setup:
1. Blow out all airline hoses before connecting to the spray gun
to remove foreign particles.
2. Connect air hose to air inlet fitting.
3. Connect fluid cup or fluid hose to fluid inlet.
4. Tighten all hose connections securely.
5. Adjust air pressure to required amount at the regulator.
6. Adjust fluid volume by turning the fluid control knob.
7. The Fan pattern is controlled by turning the fan control Knob
8. Test spray on some cardboard or news paper for final
adjustment before spraying your project.
LXS-14
HVLP Siphon Feed
1.4mm (Optional sizes 1.7mm & 2.0mm)
6-10 CFM
30-43 PSI
¼" NPT thread
34 Ounce (1000ml)
1" to 12"
1.94 Lbs
Bright Chrome with Gold Anodized trim
INSTRUCTION MANUAL LXS 2-27-2017
Description:
LXS- Manual Spray Guns are for use
from Low to Medium Pressure with
Light to Heavy Fluids. They will cover
a range of materials to include Enam-
els, Latex, and Lacquers etc. These
Models require 6 to 10 C.F.M. at 30
to 43 lbs. Air Pressure depending on
Spray Head selected and Material
being sprayed. Tip and needle are
made of Stainless Steel and can han-
dle water or solvent based materials.
