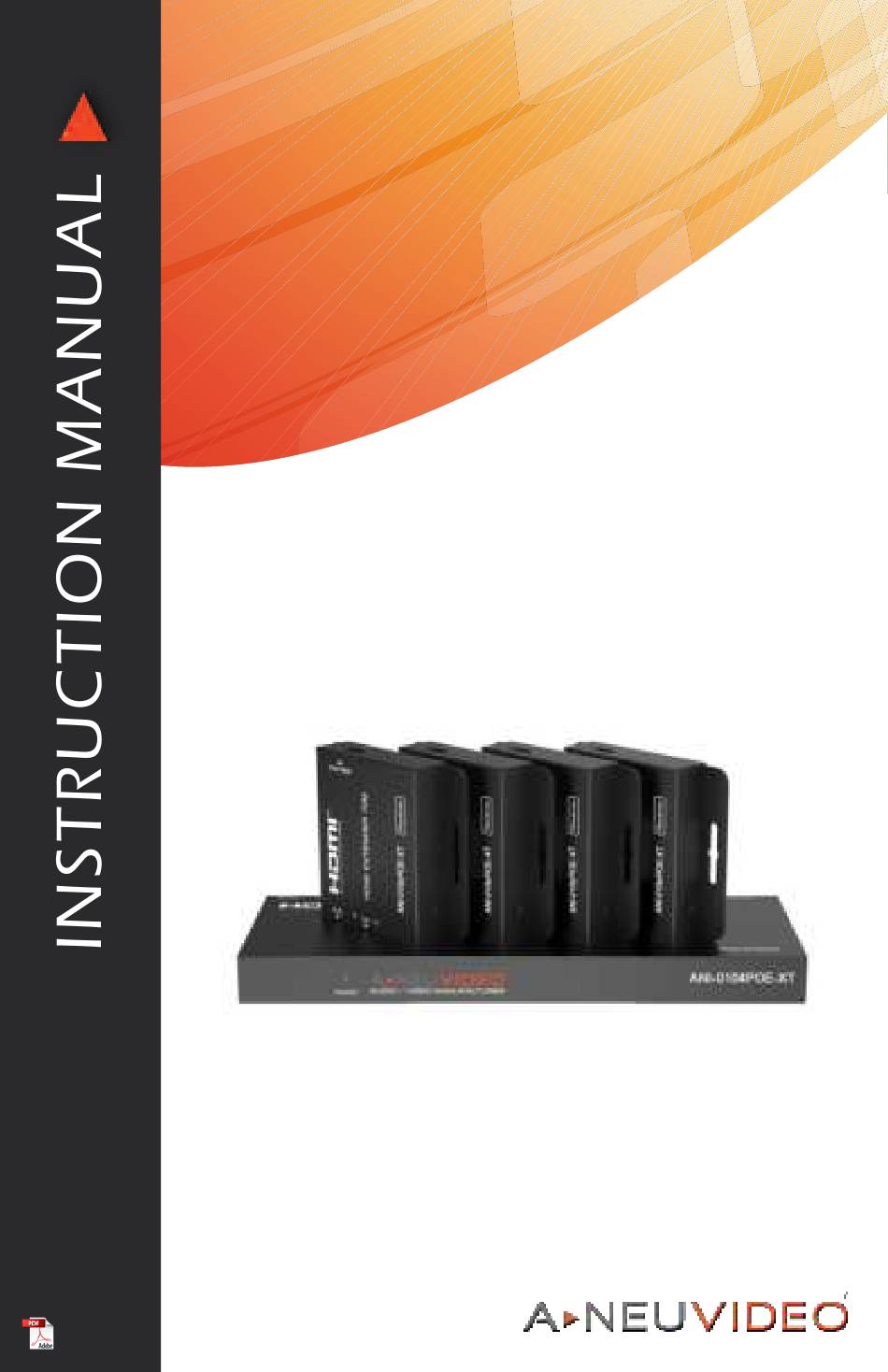

- Page 1 ANI-0104POE-XT 1x4 HDMI POE 1080/4K30 CAT6 Extender Splitter, IR Return, w/ 4x Receivers 230 ft (70M) AUTO SETUP A-NeuVideo.com Frisco, Texas 75036...
- Page 2 SAFETY INFORMATION 1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. 2. Follow all instructions printed on unit chassis for proper operation. 3.
- Page 3 NEUVIDEO SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. •...
-
Page 4: Table Of Contents
NEUVIDEO TABLE OF CONTENTS INTRODUCTION & CONTENTS .......................2 FEATURES............................3 SPECIFICATIONS........................4 OPERATION CONTROLS & FUNCTIONS..................5 IR PIN DEFINITION...........................7 EDID MODE............................8 CONNECTION DIAGRAM.........................9 INTRODUCTION This HDMI 1x4 Splitter can distribute (1) HDMI source signal to any (4) display devices. Supports video resolution up to 4K@30Hz 4:4:4. It is designed with (1) HDMI input, (1) HDMI loop output and (4) CAT outputs. -
Page 5: Features
FEATURES • HDMI 1.4 and HDCP 1.4 compliant • Video resolution up to 4K@30Hz (4:4:4) 8-bit • Support audio formats of LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio • Extend the signal transmission distance up to 131 ft (40M) at the resolution of 4K30 or 230 ft (70M) at 1080P@60Hz via a single CAT6 cable •... -
Page 6: Specifications
SPECIFICATIONS • HDMI Compliance: HDMI 1.4 • HDCP Compliance: HDCP 1.4 • Video Bandwidth: 297MHz/10.2Gbps • Video Resolution: 480i ~1080p50/60Hz, 4K30Hz (4:4:4) • Color Depth: 8-bit,10-bit,12-bit (1080p@60Hz); 8-bit (4K30Hz) • Color Space: RGB, YCbCr_4:4:4/4:2:2. YUV_4:2:0 • Audio Formats: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio •... -
Page 7: Operation Controls & Functions
OPERATION CONTROLS & FUNCTIONS Transmitter Panel When the Transmitter is powered on, the red power LED will illunminate. q POWER LED: w CAT OUT (1~4): Connect to the CAT port of the Receiver with a CAT6 cable. e POWER LED (GREEN): Transmitter supports one-way POC function. - Page 8 OPERATION CONTROLS & FUNCTIONS Receiver Panel HDMI signal output port. Connect to HDMI display device such as HDTV. q HDMI OUT: Connect to IR receiver cable, the IR signal will emit to the IR OUT port of the transmitter. w IR IN: e CAT CAT input port.
-
Page 9: Ir Pin Definition
IR Pin Definition Note: When the angle between the IR receiver and the remote control is ± 45°, the transmission distance is 0-15 ft (0-5M). When the angle between the IR receiver and the remote control is ± 90°, the transmission distance is 0-24 ft (0-8M). -
Page 10: Edid Mode
EDID Mode The defined EDID setting list of the product is shown as below: EDID MODE EDID DESCRIPTION 1080P, 2CH AUDIO 0000 1080P, DOLBY/DTS5.1 0001 1080P, HD AUDIO 0010 1080i, 2CH AUDIO 0011 1080i, HD AUDIO 0100 1080i, DOLBY/DTS5.1 0101 3D,1080P, 2CH AUDIO 0110 3D,1080P, DOLBY/DTS5.1... -
Page 11: Connection Diagram
CONNECTION DIAGRAM... - Page 12 THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
