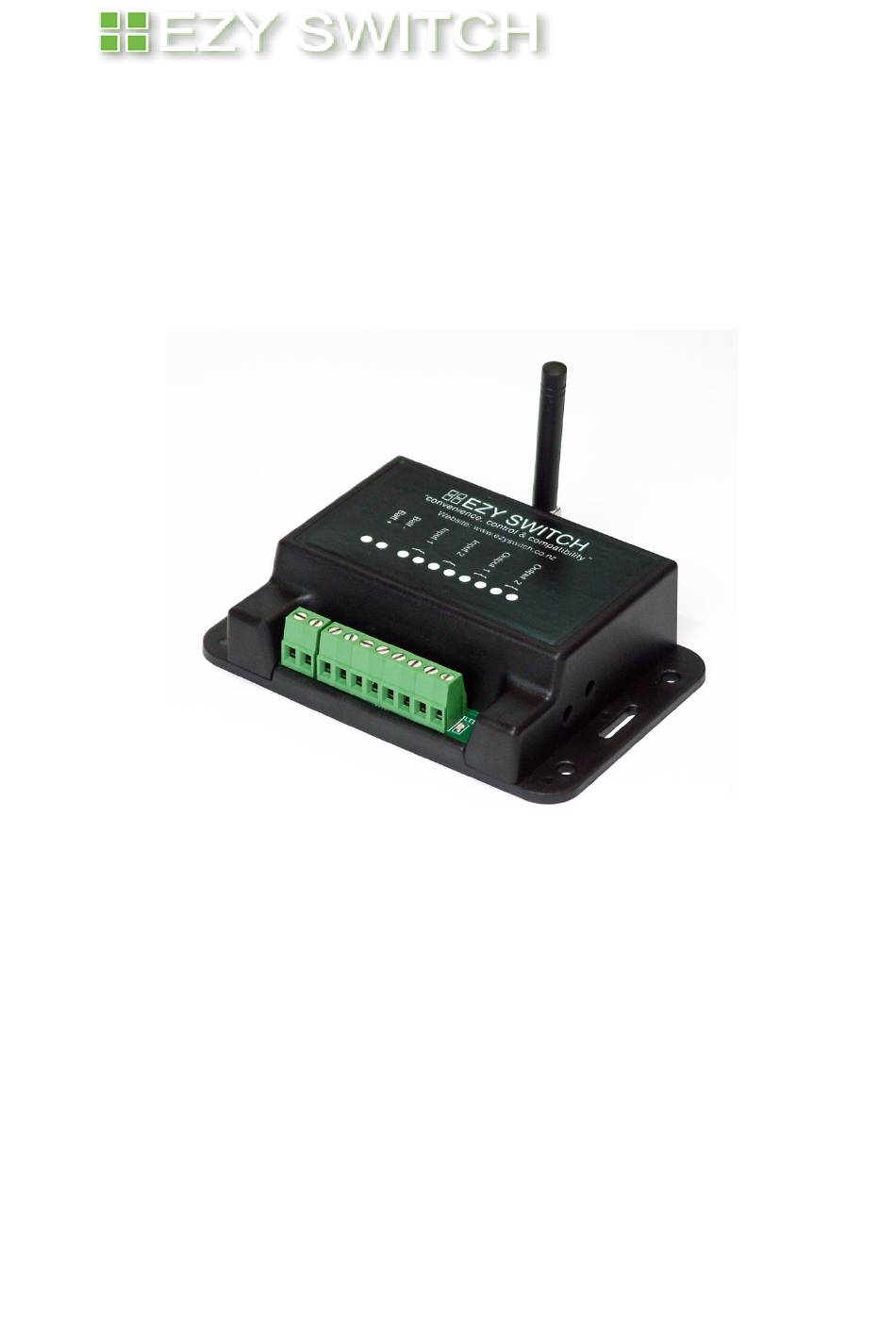

- Page 1 EZY SWITCH LIMITED SMS-T2 System Monitor Installation Manual...
-
Page 2: Table Of Contents
Table of Contents Features System / Connections Outputs Inputs COMMANDS Getting Started – Setting Up Initial Owner Adding a Master Removing a Master Adding an Administrator Removing the Administrator Get a list of all the Masters Turn programmed numbers look-up on or off Text all programmed numbers on or off Turn All Texts OFF and Disable Inputs Turn All Texts ON and Enable Inputs... -
Page 3: Features
Ezy Switch SMS-T2 Installation & Operation Manual Features - Model SMS-T2 • Receive text messages on your cell phone alerting you to potential problems anywhere in the world • Send commands to control lights, pumps, appliances, air conditioning, etc. via text message from your cell phone •... -
Page 4: System / Connections
Ezy Switch SMS-T2 Installation & Operation Manual System SIM Card SIM Card Ezy Switch Ltd Terminal 1 Signal LED Signal LED: If the LED flashes once every 1 second, this indicates the cellular network cannot be found (out of GSM coverage range). Remedy = Re-locate the device or use a longer aerial or signal booster. -
Page 5: Outputs
Ezy Switch SMS-T2 Installation & Operation Manual Outputs The SMS-T2 has two (2) Outputs. The Outputs are Relays rated at 3 A resistive @ 125VAC Relay 1 Connection Relay Internal Relay Terminals Relay 2 Connection Relay Internal Relay Terminals 9-10... -
Page 6: Inputs
Ezy Switch SMS-T2 Installation & Operation Manual Inputs The SMS-T2 has two (2) Inputs. Input 1 is a standard digital input and can be connected as per Fig 2a or Fig 2b The Analog input is a 0 to 5vdc input, connections shown in Fig 1... -
Page 7: Getting Started - Setting Up Initial Owner
Ezy Switch SMS-T2 Installation & Operation Manual !! IMPORTANT !! Setting up system for the first time: Please ensure the SIM card does NOT have a PIN number or is locked has been ACTIVATED with the network provider, insert into SIM slot on the back (see page 4) and power the unit up. -
Page 8: Commands
Ezy Switch SMS-T2 Installation & Operation Manual Commands Adding a User (Note: Setting up the first user page 7 must be done first) Add user +??XXXXXXXX Country Code page 7) Command: (see If the master is already in the list, the system responds with:... -
Page 9: Removing The Administrator
Command: (System default = On) If Text all is On the SMS-T2 will text all user that have been programmed into the unit with the reply to the command. If Text all is Off the SMS-T2 will only text the number that initiated the command with the reply. -
Page 10: Turn All Texts Off And Disable Inputs
Ezy Switch SMS-T2 Installation & Operation Manual Turn all Input Text’s OFF With alerts turned off the device will NOT text every time any Input changes but the Inputs are still active so you can send a “Input status” query at any time. -
Page 11: Naming Inputs/Outputs And Changing Names
Once the name has been changed, the particular Input or Output is always referred to by the new name (e.g. Alarm). For commands or status interrogation and the SMS-T2 will respond using the new name. Use table on page 23 to record your new Input and Output names. -
Page 12: Change Input To Normally Open Or Normally Closed
Ezy Switch SMS-T2 Installation & Operation Manual Change Input to Normally Open or Normally Closed Make INPUT NAME active open (or) closed Command: This command is used to define if the switch wired to the Input is normally open or normally closed. -
Page 13: Link An Input To An Output
Ezy Switch SMS-T2 Installation & Operation Manual Link an Input to an Output Link INPUT NAME to OUTPUT NAME Command: (Example: Link alarm to siren) The system responds with: The INPUT NAME has been linked to OUTPUT NAME To clear a link... -
Page 14: Programming The Input Reply Message
Ezy Switch SMS-T2 Installation & Operation Manual Programming the Input reply message. Input 1 can have a programmed reply message feature, if this feature is programmed then when the input is triggered (turned on) you will receive the programmed message. And when the input is turned off NO message will be sent... -
Page 15: Turn An Output On Or Off
Ezy Switch SMS-T2 Installation & Operation Manual Turn an Output ON or OFF Turn OUTPUT NAME on (or) off Command: (Example: Turn Generator on) If everything is fine, the system responds with: OUTPUT NAME has been turned off (or) on This command is used to turn on/off Outputs. -
Page 16: Make An Output Pulse On And Off
Ezy Switch SMS-T2 Installation & Operation Manual Make an Output pulse On and Off Make OUTPUT NAME pulse XX secs Command: This sets the output pulse time, XX can be between 1 and 99 seconds When the Output ON command is sent as follows:... -
Page 17: Turn Output Response On / Off
Ezy Switch SMS-T2 Installation & Operation Manual Turn Output response On / Off This command is used to turn the output response text On or Off. If the output response is turned off then a response text is not sent when outputs are turned on or off System default is ON (send response). -
Page 18: Link Battery Alarm To Output
Ezy Switch SMS-T2 Installation & Operation Manual Link the Battery Alarm to an Output Link battery alarm to OUTPUT NAME Command: The system responds with: The battery alarm has successfully been linked to OUTPUT NAME and the alarm has been reset... -
Page 19: Setting Tank Information
Ezy Switch SMS-T2 Installation & Operation Manual Calibrating the tank sensor The tank sensor must be calibrated so the unit knows the voltage swing from empty to full. There is two methods of calibration: Method-1 is 2 point = empty and full Method-2 is 5 point = empty, ¼, ½, ¾... -
Page 20: Clearing Linked Alarms
Ezy Switch SMS-T2 Installation & Operation Manual Set the tank volume Set xxxxx YYY Command: (where xxxxx = the total litreage of the tank) (where YYY can be litres or gallons) The system responds with: The tank volume has been set to xxxxx YYY... - Page 21 Ezy Switch SMS-T2 Installation & Operation manual Clearing linked alarms This command will remove any programmed link to an output. Command: Clear xxxx alarm link (xxxx can be the word low or high) The system responds with: The xxxx alarm output link has been removed...
-
Page 22: Get Firmware Version
Ezy Switch SMS-T2 Installation & Operation manual Get Firmware Version Command: The system responds with: SMS-T2 Ver X.X Get Signal Strenth Command: The system responds with: Currently the signal strength is XX %" Resetting the Unit Reboot Command: The system responds with: Module is not resetting... -
Page 23: Tank-Setup
Ezy Switch SMS-T2 Installation & Operation Manual SMS-T2 Connected To The Tank The SMS-T2 can be used with either a pressure sender monitoring the complete tank or just with a low and high level switch. To set-up send the following commands (bold):... - Page 24 SMS-2 instructing it to continue pumping. This refresh will be sent by the SMS-T2 every 10 minutes or until the high level has been reached. If the SMS-2 pump controller does not receive this refresh text after 16 minutes, it turns the pump off, the SMS-2 pump controller it will keep looking for a refresh message every 4 minutes.
- Page 25 Ezy Switch SMS-T2 Installation & Operation Manual...
-
Page 26: Warranty
Ezy Switch SMS-T2 Installation & Operation Manual CONDITIONS OF WARRANTY Penguin Electronics Ltd (the manufacturer) warrants that all of its products are free of defects. Any apparent fault will be rectified free of charge by Penguin Electronics Ltd for a... -
Page 27: Appendix One
Ezy Switch SMS-T2 Installation & Operation Manual Appendix One: Record Your Names for all Inputs and Outputs Active Input Default [Name] (Up to 20 characters ) Latched Linked Open Yes No Name Closed input1 input2 Output output1 output2 Detailed explanation of Input delays:... -
Page 28: Trouble Shooting Guide
Ezy Switch SMS-T2 Installation & Operation Manual Trouble Shooting Guide PROBLEM CAUSE POSSIBLE SOLUTION LED not flashing No power Check power supply LED fast flashes Cannot find the GSM network 1. Replace aerial with high gain (every 1 second) aerial and never slow 2. - Page 29 Ezy Switch SMS-T2 Installation & Operation Manual © All technologies, design and Intellectual property is owned by Penguin Electronics Ltd New Zealand Version 2.1...
