Connecting Interface To Display - Overhead door COUNTDOWN TIMER Installation Manual

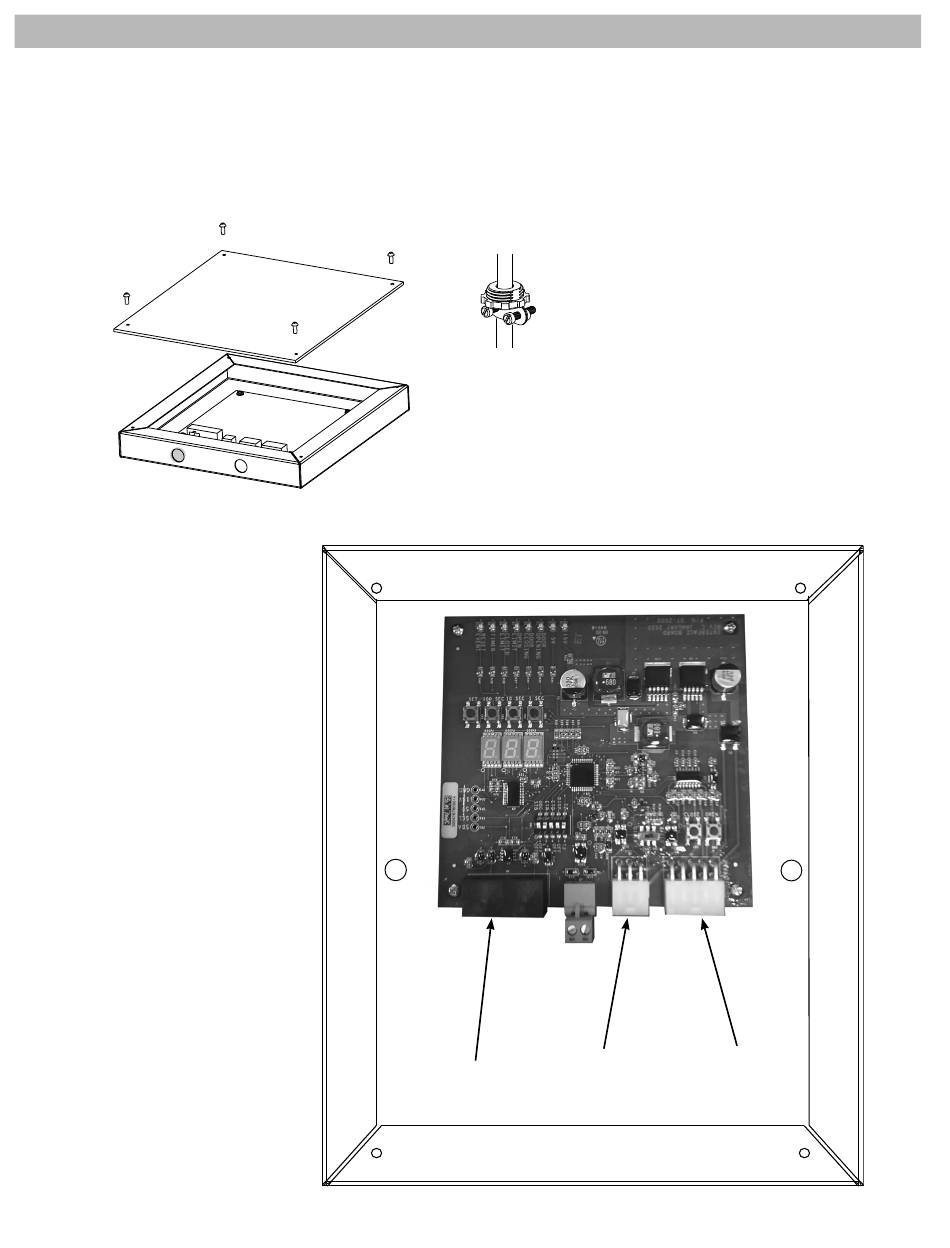

1. Install cord grip or conduit connector to interface junction box for CAT 5 cable(s).
2. Plug CAT5 cable into display and route cable to interface box.
3. Plug CAT5 cable into J4 connector on circuit board.
4. Plug CAT 5 cable from second display (if used) into J4 connector on circuit board.
Remove knockouts
10
CONNECT INTERFACE TO DISPLAY PANEL
Install 1/2in. NPT or other suitable
connector into enclosure. (Adhere
to local electrical code(s) and
regulations).
J4 J3
Interface
CAT 5
Cable
Display
2
Cables
J2 J1
Interface
Cable
