COUNTDOWN TIMER

INSTALLATION MANUAL

113047.00108, 07/2020

Table of Contents

Need help?

Do you have a question about the COUNTDOWN TIMER and is the answer not in the manual?

Questions and answers

Summary of Contents for Overhead door COUNTDOWN TIMER

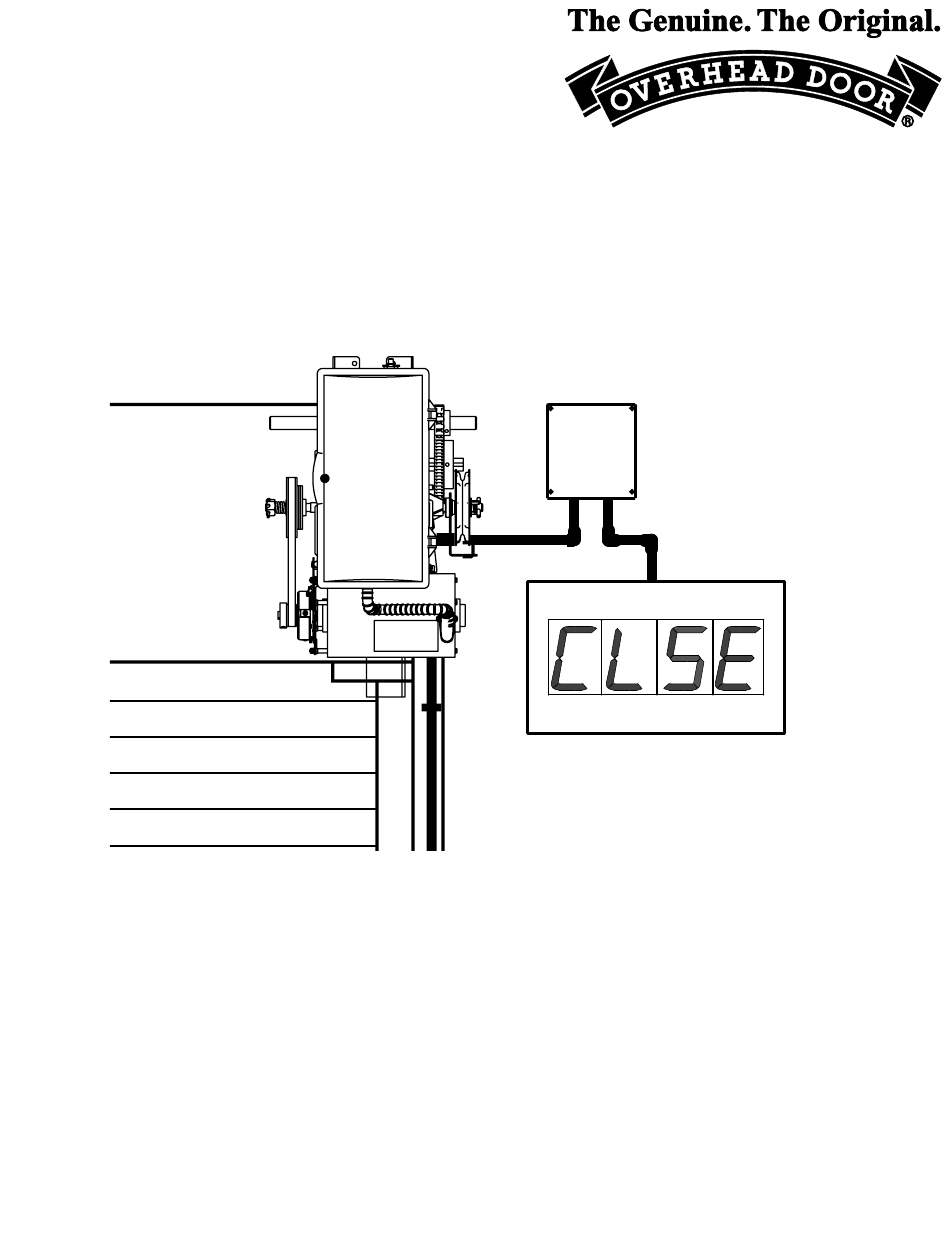

Page 1 COUNTDOWN TIMER INSTALLATION MANUAL 113047.00108, 07/2020...
Page 2: Table Of Contents
INDEX Important installation notes ........3 Safety Information ..........4-5 Assemble and install display ......6-7 Assemble and install interface ......7 Electrical Safety Information ........9 Connecting interface to display ......10 Connecting interface to opener ....11-13 Programming interface ......... 14 Interface LED signals and operations....15 Display functions and operation .......
Page 3: Important Installation Notes
• 111087.0006.S 575V 3ph kit. Opener will require an external receiver if using remote controls for countdown operation. DO NOT use internal receiver with this Countdown Timer Kit. If a monitored edge is used in conjunction with a monitored photocell, a Timer Close Module (TCM) part number OPABTCX.S or Edge Sensing Module (ESM) part number OPABESX.S is...
Page 4: Safety Information
SAFETY INFORMATION WARNING Motorized Doors are large, heavy objects that move with the help of springs under high tension and electric motors. Since moving objects, springs under tension, and electric motors can cause injury, your safety and the safety of others depend on you reading the information in this manual. If you have any questions or do not understand the information presented, call your nearest factory service representative.
Page 5 SAFETY INFORMATION AVERTISSEMENT Les portes basculantes sont de gros objets lourds qui fonctionnent à l’aide de ressorts soumis à une haute tension et de moteurs électriques. Dans la mesure où les objets en mouvement, les ressorts sous tension et les moteurs électriques peuvent entraîner des blessures, votre sécurité...
Page 6: Assemble And Install Display
INSTALLING DIGITAL DISPLAY HOUSING IMPORTANT NOTE: If display is to be mounted outdoors, use of RJ45 watertight connector must be used to prevent water intrusion into display box. See instructions next page. 1. Determine mounting location and method. 2. Remove rear panel. Orient enclosure with RJ45 connector at the top. 3.
Page 7: Assemble And Install Interface
OUTDOOR or DAMP AREA INSTALLATIONS When display is to be mounted outside or in damp locations, the watertight connector kit (included) must be used. Disassemble RJ45 watertight connector and install onto 25’ CAT5 cable as shown and reassemble connector. Apply a small bead of silicone sealant (included) around rear panel and mounting screws to seal out water from enclosure.
Page 8 THIS PAGE INTENTIONALLY LEFT BLANK...
Page 9: Electrical Safety Information
NE PAS METTRE SOUS TENSION TANT QUE L’INSTRUCTION N’EST PAS DONNÉE. WARNING All wiring to the operator must meet all local building codes. Overhead Door Corporation recommends that all work involving electrical circuits and line voltage wiring be performed by a qualified electrician.
Page 10: Connecting Interface To Display
CONNECT INTERFACE TO DISPLAY PANEL 1. Install cord grip or conduit connector to interface junction box for CAT 5 cable(s). 2. Plug CAT5 cable into display and route cable to interface box. 3. Plug CAT5 cable into J4 connector on circuit board. 4.
Page 11: Connecting Interface To Opener
Contact your local distributor for module installation. IMPORTANT NOTE: If using remote controls to operate opener, an external radio must be used to activate this countdown timer. 1. Install cord grip or conduit connector to interface junction box for control harnesses.
Page 12 CONNECT INTERFACE TO OPERATOR Install #4 forked terminal connectors to each wire and install them per chart below and wire diagram. IMPORTANT NOTE: Cables included with this kit are 4 feet long. If junctions box is more than 3 feet away from operator, additional wires and connections will be required to lengthen wires.
Page 13 MAIN CONTROL BOARD AUXILIARY 24V TRANSFORMER 1-BTN OPEN CLOSE STOP INTLK INTLK REVERSE REVERSE * SEE NOTE 1 DISPLAY INTERFACE BLUE/WHITE WHITE/BLUE INTERFACE CABLE 2 (6 CONDUCTOR) CAT5 CABLE Secondary Digital Display BLACK/WHITE CAT5 CABLE WHITE/BLACK RED/WHITE WHITE/RED DIGITAL DISPLAY * SEE NOTE 2 EXTERNAL RECEIVER RELAY...
Page 14: Programming Interface
OPEN LIMIT: Illuminated when door is on the UP limit. LED-6 = CLOSE LIMIT: Illuminates when door is on the DOWN limit. LED-7 = TIMER: Flashes when countdown timer is activated and counting. LED-8 = RESET EVENT: Flashes when a timer initiate input is activated. SECTION B: COUNTDOWN PROGRAMMING Section B of the interface is used to program the set time to close.
Page 15: Interface Led Signals And Operations
The door will remain open indefinitely until the STOP mode is terminated. This can be done by pressing the CLOSE button or a remote control button. This will re initiate the countdown timer sequence and the door will close once the sequence reaches zero.
Page 16: Display Functions And Operation
When in countdown mode, a series of numbers will be displayed showing the time (in seconds) remaining until door will operate. The countdown timer can be adjusted from 0 to 300 seconds. Message displayed if a wired STOP button is pressed while the door is opening, closing or during a coundown.
Page 17: Warranty
This warranty does not apply if the Accessory has been altered or repaired by any person not authorized by Overhead Door Corporation to do so, or if it has been damaged due to misuse, accident or failure to provide necessary maintenance. This warranty is made only to the original purchaser of the Accessory and is not transferable or assignable.
Page 18: Service Parts
SERVICE PARTS 113079.0001.S INTERFACE PCB. 113080.0001.S HARNESS KIT. 1 each, 6 wire/10 wire 113081.0001.S CONNECTOR KIT, CAT 5. Standard & Watertight included 113082.0001.S CABLE, CAT 5, 1FT. 113082.0002.S CABLE, CAT 5, 25FT. 113083.0001.S KIT, BRACKET 113084.0001.S SILICONE TUBE, LOCTITE...
Page 19 NOTES...
Page 20 The Overhead Door Corporation 1 Door Drive Mount Hope Ohio 44660 1-800-275-6187...
