UP-009 Quick Start Guide
Thank you for purchasing a Vilar IP Camera. The VS-IPC 1002 is a high
performance IP Camera. The camera provides many features such as steady
network connection, powerful customer management, compatibility and
security. You can use it simple and convenient.
This guide explains how to install this camera fast. For more details, please refer
to the [ UP-009 IP Camera User Manual.doc] on accessory CD.

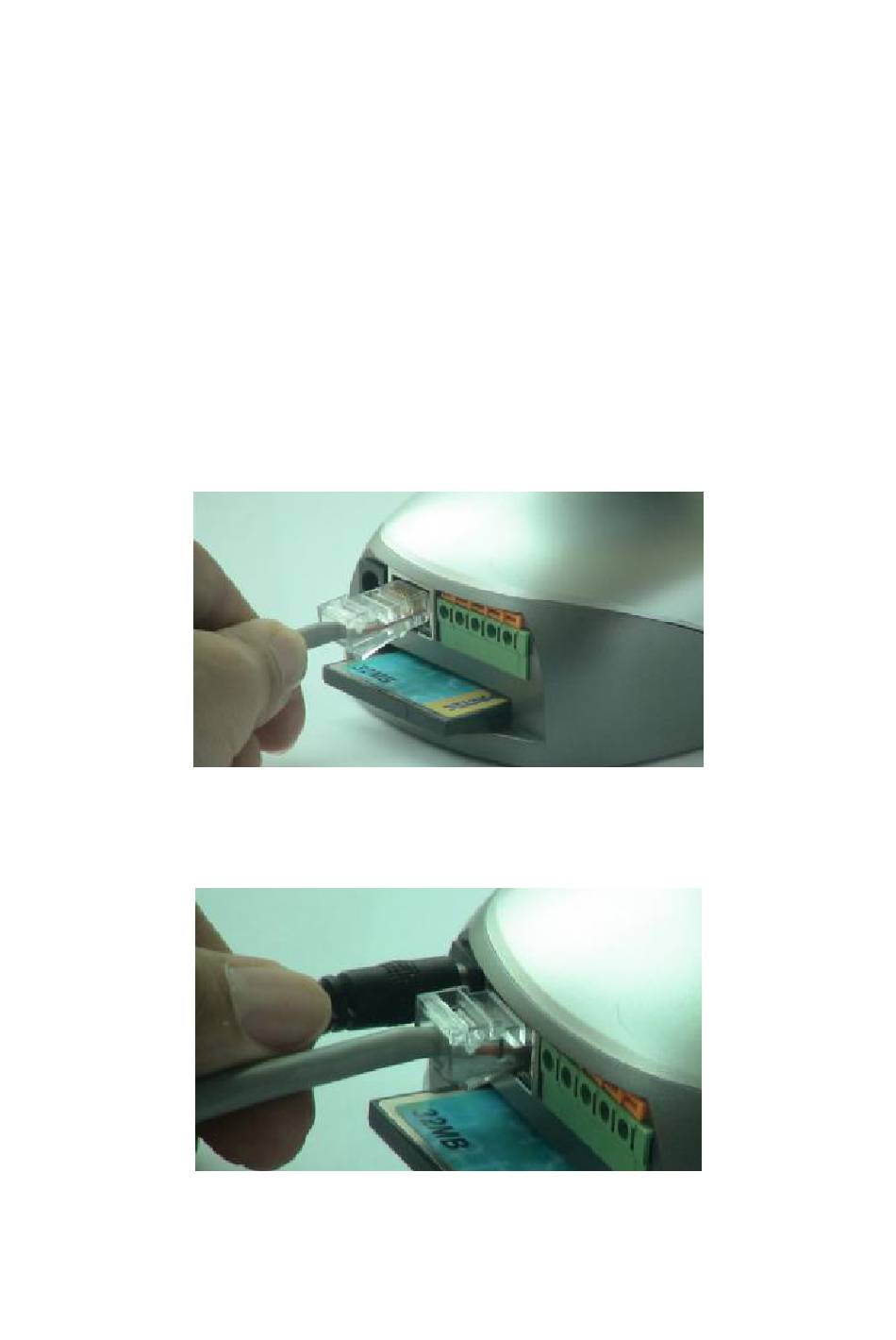

Connecting the LAN
Connect the network cable to the RJ45 network connection port.
Connect the power adapter to the IP Camera power socket and then insert the
plug into an available power outlet.
Start up your computer, and make sure it connects to the LAN successfully. Click
Start>Running, and enter "command" (for Windows 95/98/ME) or "cmd"
(for Windows2000/XP). Then select "OK" and enter "ipconfig", press enter.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the UP-009 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vilar UP-009

  • Page 1 UP-009 Quick Start Guide Thank you for purchasing a Vilar IP Camera. The VS-IPC 1002 is a high performance IP Camera. The camera provides many features such as steady network connection, powerful customer management, compatibility and security. You can use it simple and convenient.
  • Page 2 The basic setting of your network will be shown as follow: Please record the IP Address, Subnet Mask, and Default Gateway. You might use this information to set your device. Insert the accessory CD into the CD-ROM, copying the “VilarWizard_CN.exe” which is green software from the CD to your computer.
  • Page 3 This window shows us all the IP Cameras in your LAN. You can press the refresh button to get a new list. If there are many cameras in your LAN, you can look for your camera by checking camera’s “serial number”. The serial number is on the back cover of this guide.
  • Page 4 Subnet Mask:255.255.255.0 Default Gateway:10.0.8.1 IP Address:10.0.8.210 After that click [ok] and then enter the administrator’s username as “admin” and the administrator password as “123456”. Click “OK”, the system starting assign a new IP address for your IP camera.
  • Page 5 Click “OK” after you saw the successfully prompt. Then new IP address of your camera has been shown in the interface.
  • Page 6 Selecting this camera, and click “visit IPCam” option, the Internet explorer will connect your camera automatically. Above interface can be indicated means your IP camera is connect to network successfully. Also you can enter your camera IP address into the Internet explorer to access, such as http://10.0.8.210 Click the “User Zone”...
  • Page 7 Please fill in the administrator’s username as “admin” and the administrator password as “123456” to enter the website. When you enter the ActiveX mode at the first time, you might be prompted to install the ActiveX control. After you set the IE security option correctly, you will see the follow dialog box.
  • Page 8 3. Select [Custom Level]; 4. Setup as the following: a) Init and Run unmarked as safety ActiveX controls: Select [Alert]; b) downloading unsigned ActiveX controls: Select [Alert]; c) Run ActiveX controls and plug-in: Select [Enable]; Click [OK] to save it. In addition the IPCam also can be a “Trusted Sites”, the setting process as follow: 1.
  • Page 9: The Access From Internet

    The access from internet Sometimes you might need to visit your IP camera from internet. Such as you want to see your pets when you at office. You can control the home camera send the pets’ video to you by using internet. You have to do some configurations of your router before you visit your camera from internet.
  • Page 10 visit this domain name from internet, the DDN server will return to the correct IP address. To prevent a confusion caused by reusing the same IP address, the DNS have to stop use the domain name when the user is offline. The DDNS operating figure as follow: In order to use DDNS you have to apply a DDNS domain name first.
  • Page 11 Please attention that your LAN have to open the UDP port when you using DDNS. If you have any question, please contact your network administrator or the Vilar IP Camera customer’s center to get some help. Connecting internet via ADSL When you use router or other IP sharing device to connect internet via ADSL, the network framework is similar as your LAN.
  • Page 12 When your camera connecting internet via ADSL, you might need open PPPoE service. In that case the network configuration as follow: For open PPPoE function, please use network cable connects your camera to your PC network card directly, running “VilarWizard_CN.exe” or enter your camera’s IP address into IE to visit your camera.
  • Page 13 Furthermore select the “redial automatically” and “DNS service IP address provided by PPPoE Server”, and reboot system after click “OK”. Using network cable connect camera to ADSL. The ADSL connection is successful after 1-2 minutes, and then the LCD monitor will indicate the PPPoE status and IP address.
