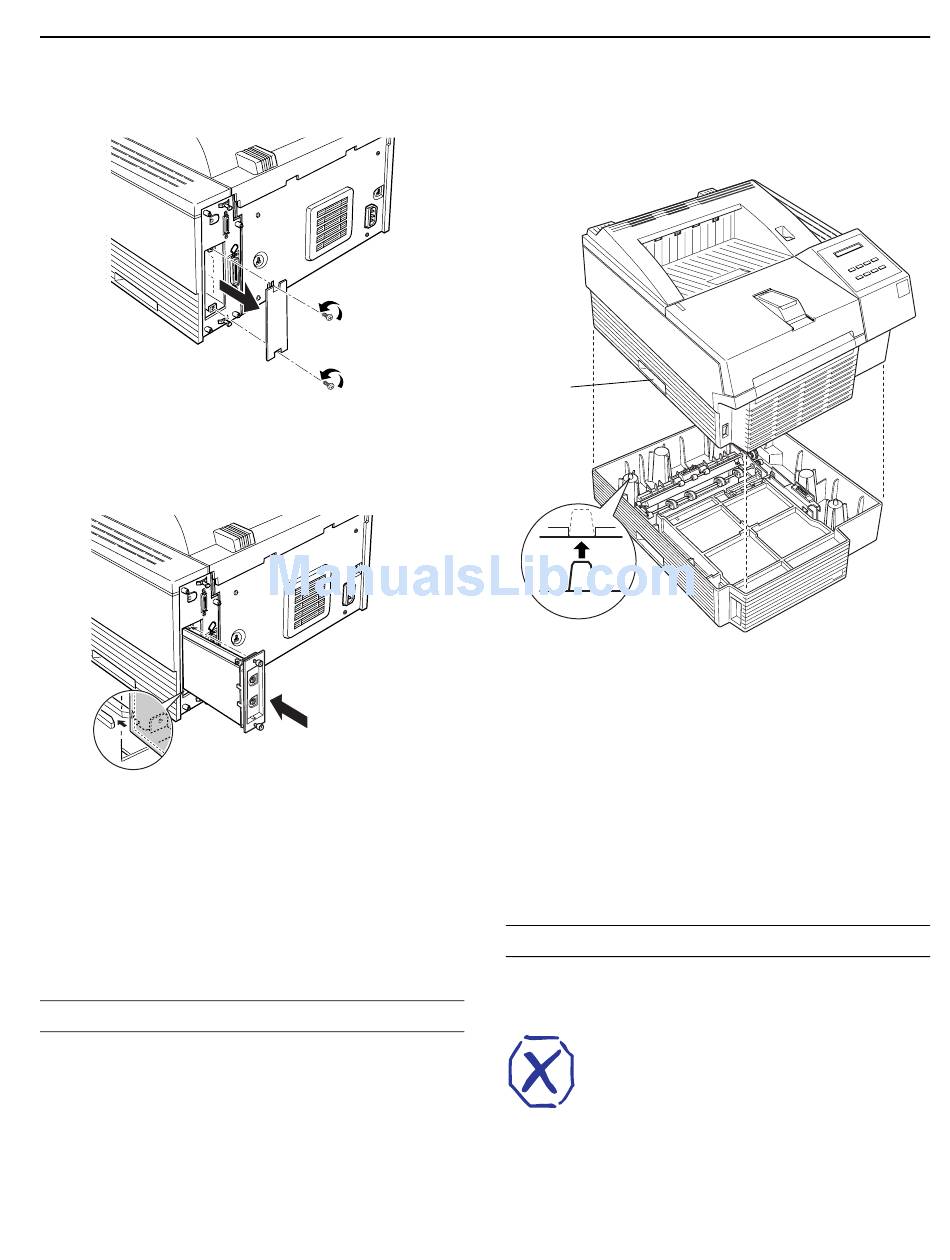

2. Remove the two screws securing the interface slot cover;
then remove the cover.
3. Position the optional interface card so its components face
the center of the back panel. Then align its top and bottom
grooves with the guide rails inside the printer and slide in
the card, pushing it firmly to lock it in place.
4. Secure the card with the two screws you removed earlier.
5. Connect the appropriate cable to the interface card.
6. Plug the power cord into an electrical outlet; then turn on
the printer.
To verify that the interface is working properly, print a
status sheet and make sure your interface is listed under
"Hardware Configurations."

Installing Lower Paper Cassettes

1. Turn off the printer and unplug the power cord from the
electrical outlet.
2. Disconnect any interface cables from the printer.
3. Place each lower paper cassette next to the printer so the
ridged front edges face the same way as the ridged front
edge of the printer. If you'll be installing two cassettes,
place one cassette on top of the other.
4. Grasp the printer by the recessed "handles." Lift it up and
then lower it over the cassette(s), aligning the holes in the
printer with the pins on the top cassette. Make sure the
printer rests on the cassette(s) evenly and securely.
handle
5. Connect the interface cable(s).
6. Make sure the printer's power switch is in the off position;
then plug the power cable into an electrical outlet.
7. Turn on the printer.
8. Now run the Windows printer driver to add the optional
paper cassette(s) to your available paper source list.
Note:
If you use the Remote Control Panel utility or SelecType to control your
printer, you need to select the optional paper cassette(s) only when you
are ready to print.

Installing Memory Modules

1. Turn off the printer and unplug the power cable from the
electrical outlet.
Warning:
To avoid electrical shock, do not access the printer's
controller board unless the printer is turned off and
unplugged from the electrical outlet.
2. Disconnect any interface cables from the printer.
3. Follow steps 2 and 3 on page 3 to remove the controller
board from the printer.
1/97
EPSON EPL-N1200
EPSON EPL-N1200 - 5
