Owner's Manual
Model No.
VM2400
VM2401
NOTE: This manual references models with a 120V blower and "B" type electric plug. This
manual is also valid for 220V Airsled systems sold with the respective, country-specific

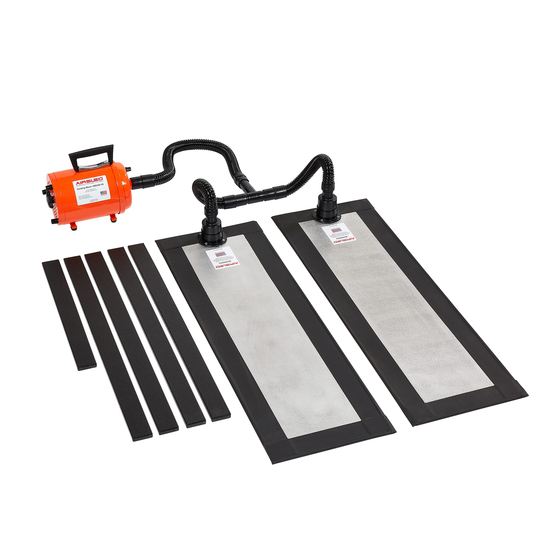

Vending Mover
Covers Vending Mover Models:
Description
Vending Mover
Vending Mover
electrical cord/plug sets.
Lift rating
Speed
(lbs.)
1,400
Single
Dual (DS)
1,400
Variable (VS)
Vacuum
Capability
No
Yes
Advertisement
Related Manuals for AIRSLED VM2400
Summary of Contents for AIRSLED VM2400
- Page 1 Single Dual (DS) VM2401 Vending Mover 1,400 Variable (VS) NOTE: This manual references models with a 120V blower and “B” type electric plug. This manual is also valid for 220V Airsled systems sold with the respective, country-specific electrical cord/plug sets.
- Page 2 These conditions include the following: ✓ Surface is level and free of incline and/or decline. DO NOT attempt using your Airsled system on inclines, declines, ramps or stairs. ✓ Surface is smooth and non-porous and free of debris. Porous surfaces such as carpeting requires use of Airsled’s Rough Surface Adapters (RSAs).
- Page 3 35” deep. If dealing with a load greater than 35” deep or require rotating the load 90 degrees to pass through a narrow opening, Airsled offers a set of 10” wide x 48” long Side Access air beams.
- Page 4 CONTROL AND MANEUVERABILITY • All Airsled systems have an air flow controller. See figure 6. By fully opening the controller, less air will flow into the air beams. This can help reduce the lift especially in situations where overhead clearance is limited (e.g., less than 2”).
- Page 5 GOING OVER POROUS SURFACES SUCH AS CARPETING All Airsled systems come with plastic Rough Surface Adapters (RSAs). The RSAs are 10” wide x 36” long and laid on top of the porous surface. The air beams MUST BE PLACED OVER THE RSAs in order for your system to perform properly.
- Page 6 Loose hose connections. Over time, the soft ends of the hoses may become stretched out causing them to lose their snug fit. You can temporarily wrap the male ends with tape to establish a tighter seal. We recommend that you replace the hoses which Airsled sells. 70 – A Aleph Dr.
- Page 7 Page 6 of 8 Exhibit 1: Parts Diagrams Models: VM2400 (including DS and VS models) Part No. Description PA01OF On/Off toggle switch HI/LO dual speed switch PA01DS On/Off variable speed dial PA01VS * not shown in diagram PA00CA Front end cap...
- Page 8 Page 7 of 8 LIMITED PRODUCT WARRANTY Airsled, Inc. (warrantor) uses the utmost care in the manufacturing of its products, and this is warranted to be free from defects in material and workmanship, subject to the following limitations, qualifications and conditions.
- Page 9 This warranty is intended to comply with Federal Legislation relating to the contents and terminology in all warranties and shall be construed in a manner of consistent therewith. 70 – A Aleph Dr. Support Email: airsled@airsled.com Toll Free Number: 1-800-AIRSLED (1-800-247-7533) Newark, DE 19702...
