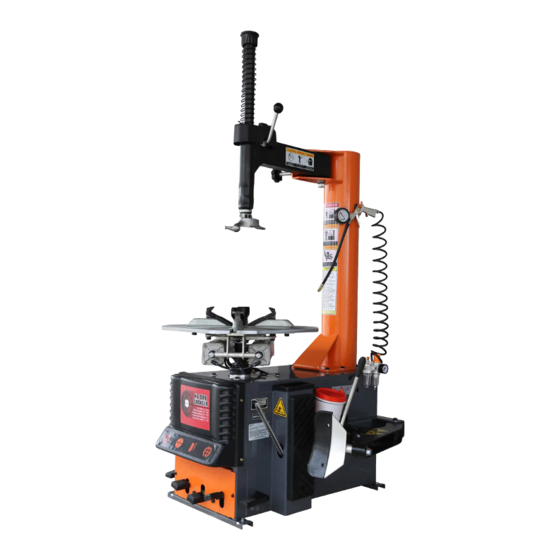

24” semi automatic tire changer
Hide thumbs Also See for TMG-TC24:
Table of Contents

Advertisement

Quick Links

24" SEMI AUTOMATIC TIRE CHANGER
•First, we should confirm the integrity of the product before installing and debugging, to ensure that the product has
not been changed.
•The manual is a part of the product, please put it in the place where you can find it at any time.
•In the installation process, if the warning signs are damaged, contact the manufacturer in time to replace the defect.
WARNING - Risk Of Explosion. This Equipment Has Internal Arcing Or Parking Parts Which Should Not Be Exposed To
Amenable Vapors.
Do Not Use Below Garage Floor or Grade Level.
ATTENTION - Risque d,explosion. Cet d quipement possdde un arc intdrieur ou des pidces de stationnement qui ne
doivent pas dtre exposes aux vapours inflammables.
Ne pas utiliser au-dessous du plancher de garage ou niveau de grade.
WWW.TMGINDUSTRIAL.COM
PRODUCT MANUAL
MODEL:TMG-TC24
TOLL FREE:1-877-761-2819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMG-TC24 and is the answer not in the manual?

Questions and answers

Related Manuals for TMG TMG-TC24

Summary of Contents for TMG TMG-TC24

  • Page 1 PRODUCT MANUAL 24” SEMI AUTOMATIC TIRE CHANGER MODEL:TMG-TC24 •First, we should confirm the integrity of the product before installing and debugging, to ensure that the product has not been changed. •The manual is a part of the product, please put it in the place where you can find it at any time.
  • Page 2 GROUNDING INSTRUCTIONS 1 All grounded, cord-connected tools In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current  to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug.

  • Page 3: Table Of Contents

    Directory 1 Overview........................1 1.1 Important note......................1 1.2 Qualified users......................1 1.3 Notes.......................... 1 1.4 Danger warning signs....................2 1.5 Noise standard......................3 1.6 Training........................3 2 Equipment description.................... 3 2.1 Product introduction....................3 2.2 Technical parameters....................3 2.3 Transport........................3 2.4 Figure and part name....................4 3 Installation and commissioning instructions...........

  • Page 4: Overview

    1 Overview 1.1 Important notes  Thank you for your purchase and use of this product. Please read the instruction carefully before installing and operating the tire, so as not to cause unnecessary damage.  Without the approval of the company, any user shall not change the parts and structure of the machine without permission.

  • Page 5: Danger Warning Signs

     Periodically check the oil mist, oil, if the oil level is low and need to unscrew the oil cup and then add. Oil mist using models for ISO Hg and viscosity for ISO vg32 oil mist special oil (such as: Esso Fedis k32, 1405, Mobil Vacouline, KLUBER32) ...

  • Page 6: Training

    1.6 Training We will be happy to help you in this regard, as we have to train the staff to operate and use the tire assembly machine. 2 Equipment description 2.1 Product introduction This semi-automatic tire changer is a half automatic, convenient and quick disassembly and installation of wheel size of 10”...
  • Page 7 2.4 Figure and part name C: inflatable gun E: hand wheel G: clamp I:changing head K: locking handle M:operating arm N: horizontal pendulum arm P:column Q: oil water separate R:tire pressing device S: tire pressure rubber T: crowbar U: tire-pressing pedal VI, V2: moving jaws pedal Y: turntable Z:reversing pedal of table!

  • Page 8: Installation And Commissioning Instructions

    3 Installation and commissioning instructions 3.1 Installation Preparation 3.1.1 Installation location installation The installation location of the machine must be in line with the standard of the  work.  The tire changer need to be installed in the main power supply and compressed air system.

  • Page 9: Precautions During Installation

    3.1.2 Installation equipment and tools Installation equipment and tools 3.1.3 Inspection products After receiving the product, please check the machine packaging,transport and wet damage phenomenon, if shipping damage or soaked by rain, please don't open the package, please contact the seller. Such as damage has been found in the packaging but still unpacked, missing pieces or some parts can not be used and accidental injury etc.,I will not bear any responsibility.
  • Page 10 the degree of tightness of the arm is not suitable, customers can adjust the tightness of the elastic nut (according to the customer's own work effect, can not adjust)  The fourth step: as shown in the figure 6-c, ensure the machine source and compressed air system is connected.

  • Page 11: Commissioning And Debugging

    3.3.2 Check the project table after installation Inspection item Remarks Whether the power supply voltage is consistent with the requirements of the Whether the components are installed correctly Whether the bolts, screws, nuts are tightened Note: Please fill in the inspection item list after the installation is finished. 3.4 Commissioning and debugging Commissioning ...
  • Page 12 Debugging Step 1: turn on the power and gas supply, step the pedal (Z), turntable (Y) should be clockwise. Raise the pedal (Z), the turntable (Y) should be anti-clockwise rotation. (If the turntable is opposite to the specified rotation direction, the position of the two lines in the three-phase plug should exchange position.) step 2(U), start the pressing-tire spade device (R);...

  • Page 13: Operation Declaration

    4 Operation declaration 4.1 Operating notes  Check the connection of air pipe is in place, ensure that no air leakage, ensure the operation space to meet the requirements, then start work.  Before any operation, the gas in the tire is needed to be released , and the balance block of the tire balancing device is removed.
  • Page 14 about 2-3cm, (Note: the pressing-tire spade is to be placed on the wheel rather than the rim).  As shown in Figure 9, step on the pedal (U) and start the tire pressing device. When the tire pressure shovel completed operation or the wheel edge goes away from the rim, release the pedal.
  • Page 15 clockwise, until the tire is completely removed from the wheel rim by the crowbar (T).(when the rotating wheel is running, the other parts of the body should be as far away as the moving parts, so as not to be injured). Figure 11 4.2.3 Tire mounting ...
  • Page 16 4.2.4 Air inflation  Note: the pneumatic operation of the tire must be very carefully, strictly according to the following instructions for operation, if the tire suddenly burst,  the design and structure of semi-auto tire changer is not able to protect the operator's personal safety (or anything in the vicinity of the machine.

  • Page 17: Maintenance, Storage And Scrap

    5 Maintenance, storage and scrap 5.1 Maintenance 5.1.1 Maintenance  Prohibit unauthorized personnel for maintenance operation. To extend the service life of the tire changer, maintenance should be performed according to the requirements of the manual. If the machine is not maintained regularly, the operation and reliability can not be guaranteed, and even cause danger to the operator or the people in the vicinity of the machine.
  • Page 18 opening or closure of the clamps(G), follow the following steps: first, unscrew the 4 screws on the side of the box, remove the left side protective plate on the tire changer. Second, in the pedal (VI, V2) system which controls the opening or closure of the clamps(G), unscrew silencer.

  • Page 19: Storage And Scrap

    5.2 Storage and scrap Storage  If you want a long time storage of machine, please disconnect all the energy supply, and lubricate the skidway of the clamps on the turntable to prevent oxidation. Scrap  In accordance with the law of the metal and nonmetal for scrap processing. In the specified place release the oil inside the machine.
  • Page 20 Working head can touch Lock plate adjustment is not Adjust or replace the locking the rim correct or faulty plate Working head screw loose Tighten screws The pedal is not located Return spring has trouble Replace return spring at work position. Muffler blockage To clean or replace the silencer Operating difficulties of...

  • Page 21: Assistant Data

    7 Assistant data Electrical circuit diagram Electrical Parts List Specifications and Name Qty. Remarks models AC 120V 60Hz Motor 12.5Amp Pedal HZ58-16 Exchange 16A 600V Switch Line: 3*2.08mm²(14AWG) Connection 3*2.08 ㎜² Line (14AWG) W W W . T M G I N D U S T R I A L . C O M P 2 1 / 3 7 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...

  • Page 22: Pneumatic Diagram

    7.2 Pneumatic diagram W W W . T M G I N D U S T R I A L . C O M P 2 2 / 3 7 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...

  • Page 23: Explosion Diagram

    7.3 Explosion diagram W W W . T M G I N D U S T R I A L . C O M P 2 3 / 3 7 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 24 PART# ITEM # DESCRIPTION 6201000 Body weld assembly 8803000 Swing arm assembly 6208000 Pedal assembly 6207000 Gearbox assembly 8514000 Bead breaker assembly 8806000 Rotate union assembly 6206000 Turntable assembly Bead breaker cylinder assembly 6205100 6201013 Side panel 6202007 Inflation gun 8801013 Air regulator assembly 6208007...
  • Page 25 PART # ITEM # DESCRIPTION PART# ITEM # DESCRIPTION 12-2 8803000 Swing arm weld 8803203 Knob 13-2 5753201 Mounting bar 8803005 Swing arm cover Arm locking handle weld 14-2 5753202 Mounting head 8803100 15-2 8803207 Shock absorber 8803103 Arm locking handle 16-2 8803206 Shock ring...
  • Page 26 PART# ITEM # DESCRIPTION PART# ITEM # DESCRIPTION 3-16 131000 Pedal mounting plate GB/T 889.1 Nut M10 3-17 GB/T 93 Spring washer 5 GB/T 91 Pin 2x32 3-18 GB/T 93 Spring washer 10 6208006 Spring 3-19 GB/T 889.1 Nut M5 6208011 Pedal 3-20...
  • Page 27 PART# ITEM # DESCRIPTION 6207001 Upper gearbox housing 6207003 Spindle 6207012 Bearing 6207006 Worm 6207011 Bearing 620700 Worm screw 6207010 Bearing 6207008 Seal cover 6207009 Oil seal 4-10 6207002 Lower gearbox housing 4-11 6207004 Belt pulley 4-12 6207005 Disk key 4-13 8503017 Washer...
  • Page 28 PART# ITEM # DESCRIPTION 8514300 Bead break arm weld 8514200 Bead break shoe weld GB/T 97.1 Washer 16 GB/T 889.1 Nut M16 8514307 Spacer 8514306 Handle cover 8808028 Spring GB/T 894.1 Seeder ring 34 W W W . T M G I N D U S T R I A L . C O M P 2 8 / 3 7 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 29 PART# ITEM # DESCRIPTION 8809001 Rotary union (inside) 8809003 O-ring 8809002 Rotary union (outside) 8809005 8809004 Union W W W . T M G I N D U S T R I A L . C O M P 2 9 / 3 7 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 30 PART# ITEM # DESCRIPTION 6204100 Turntable weld 6206400 Slide 6206600 Connecting plate 6206300 Cylinder bracket 6206003 Slide plate 6206011 Clamp 6206200 Turntable cap 6206201 Cylinder assembly GB/T 97.1 Washer 12 7-10 GB/T 93 Spring washer 12 7-11 GB/T 70.1 Screw M12x30 7-12 GB/T 5718 Bolt M12x90...
  • Page 31 ITEM# PART # DESCRIPTION 6205001 Cylinder body 8805025 Union GB/T 70.1 Screw M6x16 6205300 Cylinder housing 8805011 Spacer 6205005 O-ring 8805008 Y-ring 8805007 Seeder spacer 6205007 O-ring 8-10 GB/T 889.1 Nut M6 8-11 GB/T 889.1 Nut M16 8-12 6205008 Y-ring 8-13 6205006 Piston...
