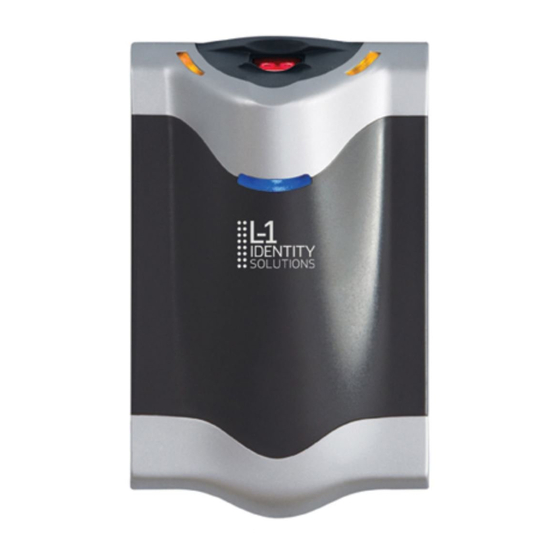

bioscrypt Veri Series Setup Manual

Hide thumbs Also See for Veri Series:

Advertisement

Quick Links

Download this manual
Appendix A – Notices
The Veri-Series product line has been tested for compliance with all applicable
international standards.
additionally printed on the labeling located on the rear panel of the product.
The power supply offered by Bioscrypt is CE and CSA approved and UL listed.
V-Flex
V-Prox
V-Pass
V-Smart
V-Station
FCC Information to Users
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
FCC Class B Digital Device or Peripheral - User's Notice (for all V-Station models only)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one of more of the following measures:
• Reorient or relocate the receiving antenna
Document #430-90003-16
The resulting approvals are listed below, and are
FCC, UL 294, CSA, CE
FCC, UL 294, CSA, CE
FCC, UL 294, CSA, CE
FCC, UL 294, CSA, CE
FCC, UL 294, CSA, CE
© Copyright 2005 Bioscrypt Inc. All Rights Reserved.
Page 1
