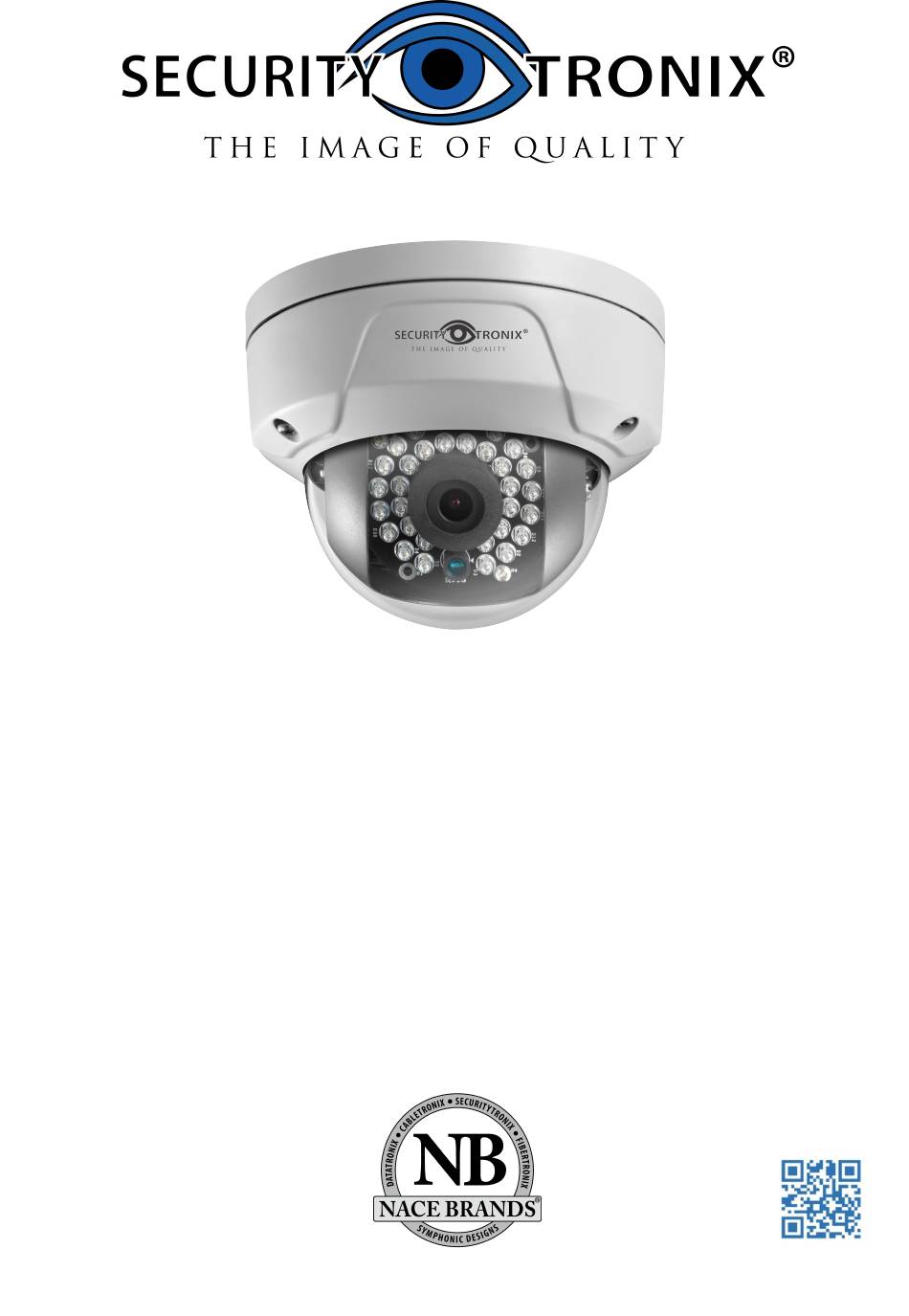

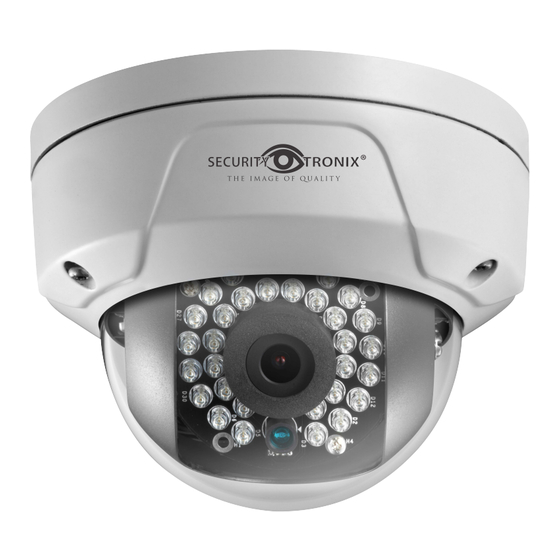

- Page 1 ST-IP2FD QUICK START GUIDE www.nacebrands.com www.securitytronix.com...
- Page 2 ST-IP2FD QUICK START GUIDE Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer. About This Document This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice. The updates will be added to the new version of this manual.
- Page 3 ST-IP2FD QUICK START GUIDE Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 4 ST-IP2FD QUICK START GUIDE 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
- Page 5 ST-IP2FD QUICK START GUIDE Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected.
- Page 6 ST-IP2FD QUICK START GUIDE ● Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard. ● Please make sure that the plug is firmly connected to the power socket. When the product is mounted on wall or ceiling, the device shall be firmly fixed.
- Page 7 ST-IP2FD QUICK START GUIDE ● Do not place the camera in extremely hot, cold (the operating temperature shall be-22F~+140F,or -40°F ~ 140°F if the camera model has an “H” in its suffix), dusty or damp locations, and do not expose it to high electromagnetic radiation. ●...
- Page 8 ST-IP2FD QUICK START GUIDE Table of Contents 1 Appearance Description ..............8 2 Installation ..................10 3 Setting the Network Camera over the LAN ........15 4 Accessing via Web Browser ............20...
-
Page 9: Appearance Description
ST-IP2FD QUICK START GUIDE 1 Appearance Description Figure 1-1 Overview Table 1-1 Description Description Mounting Base Horizontal Stand Vertical Stand Bubble... - Page 10 ST-IP2FD QUICK START GUIDE Description Power/Network Cables IR LED Lens Black Liner Safety Rope Press RESET about 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, and port No., etc.
-
Page 11: Installation
ST-IP2FD QUICK START GUIDE 2 Installation Before you start: Make sure the device in the package is in good condition and all the assembly parts are included. Make sure all the related equipment is power-off during the installation. ... - Page 12 ST-IP2FD QUICK START GUIDE ● Make sure that there is no reflective surface too close to the camera lens. The IR light from the camera may reflect back into the lens causing reflection. ● The foam ring around the lens must be seated flush against the inner surface of the bubble to isolate the lens from the IR LEDS.
- Page 13 ST-IP2FD QUICK START GUIDE Figure 2-2 Remove the Bubble 3. Fix the mounting base on the ceiling with screws. Figure 2-3 Fix the Mounting Base...
- Page 14 ST-IP2FD QUICK START GUIDE If required, you can route cables through the side opening on the side of the mounting base. Side Opening Figure 2-4 Side Opening 4. Loosen the tilt lock screws, adjust the tilting position in a range of 65 degrees, and tighten the tilt lock screws.
- Page 15 ST-IP2FD QUICK START GUIDE As the lens has already been factory adjusted to the best focal position, you just need to adjust the panning position and tilting position to get the desired surveillance angle. 6. Reinstall the bubble and tighten the screws. Figure 2-6 Bubble Reinstallation...
-
Page 16: Setting The Network Camera Over The Lan
ST-IP2FD QUICK START GUIDE 3 Setting the Network Camera over the Purpose: To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your PC. Then, install the SADP or client software to search and change the IP of network camera. - Page 17 ST-IP2FD QUICK START GUIDE Use client software to list the online devices. Please refer to the user manual of client software for detailed information. 2. Change the IP address and subnet mask to the same subnet as of your PC. Refer to the following introductions to set IP address with SADP software: ...
- Page 18 ST-IP2FD QUICK START GUIDE Figure 3-2 Search Online Devices Device can be searched and displayed in the list 15 seconds after it goes online; it will be removed from the list 45 seconds after it goes offline. Search online devices manually: You can also click to refresh the online device list manually.
- Page 19 ST-IP2FD QUICK START GUIDE You can click on each column heading to order the information; you can click to show the device table and hide the network parameter panel on the right side, or click to show the network parameter panel. ...
- Page 20 ST-IP2FD QUICK START GUIDE Figure 3-4 Modify Network Parameters 3. Enter the IP address of network camera in the address field of the web browser to view the live video. The default IP address is “192.0.0.64”. The default user name is “admin”, and password is “12345”.
-
Page 21: Accessing Via Web Browser
ST-IP2FD QUICK START GUIDE 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 6.0 and above version, Apple Safari 5.02 and above version, Mozilla Firefox 3.5 and above version and... - Page 22 ST-IP2FD QUICK START GUIDE Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. You may have to close the web browser to finish the installation of the plug-in.
- Page 23 ST-IP2FD QUICK START GUIDE Figure 4-2 Download Plug-in Figure 4-3 Install Plug-in (1)
- Page 24 ST-IP2FD QUICK START GUIDE Figure 4-4 Install Plug-in (2) 6. Reopen the web browser after the installation of the plug-in and repeat steps 2-4 to login. For detailed instructions of further configuration, please refer to the user manual of network camera. If there are any questions, or requests, please contact our support department at 1-800-688-9282.
- Page 25 SECURITYTRONIX 2-Year Limited Fixed Camera Warranty Securitytronix. (the "Company") warrants to the Original Purchaser that the Fixed Camera is free from defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware to the Original Purchaser. During the warranty period, the Company agrees to repair or replace, at its sole option, without charge to Original Purchaser, any defective component in the Fixed Camera.
