Wet Sounds WS-MC-5 Owner's Manual

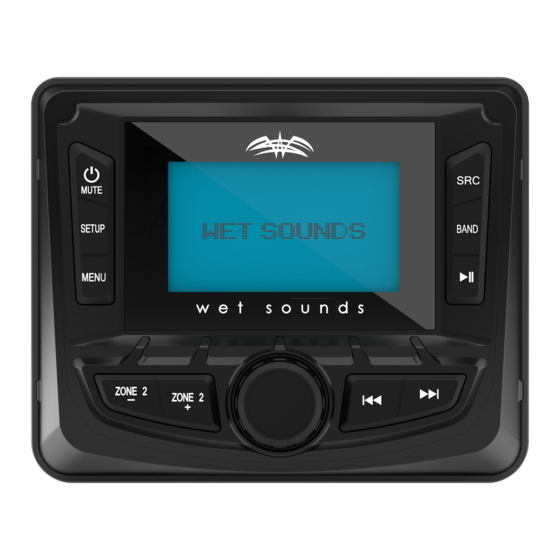

1 piece marine receiver
Hide thumbs

Advertisement

Quick Links

WS-MC-5
1 piece marine receiver
Owner's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the WS-MC-5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wet Sounds WS-MC-5

Summary of Contents for Wet Sounds WS-MC-5

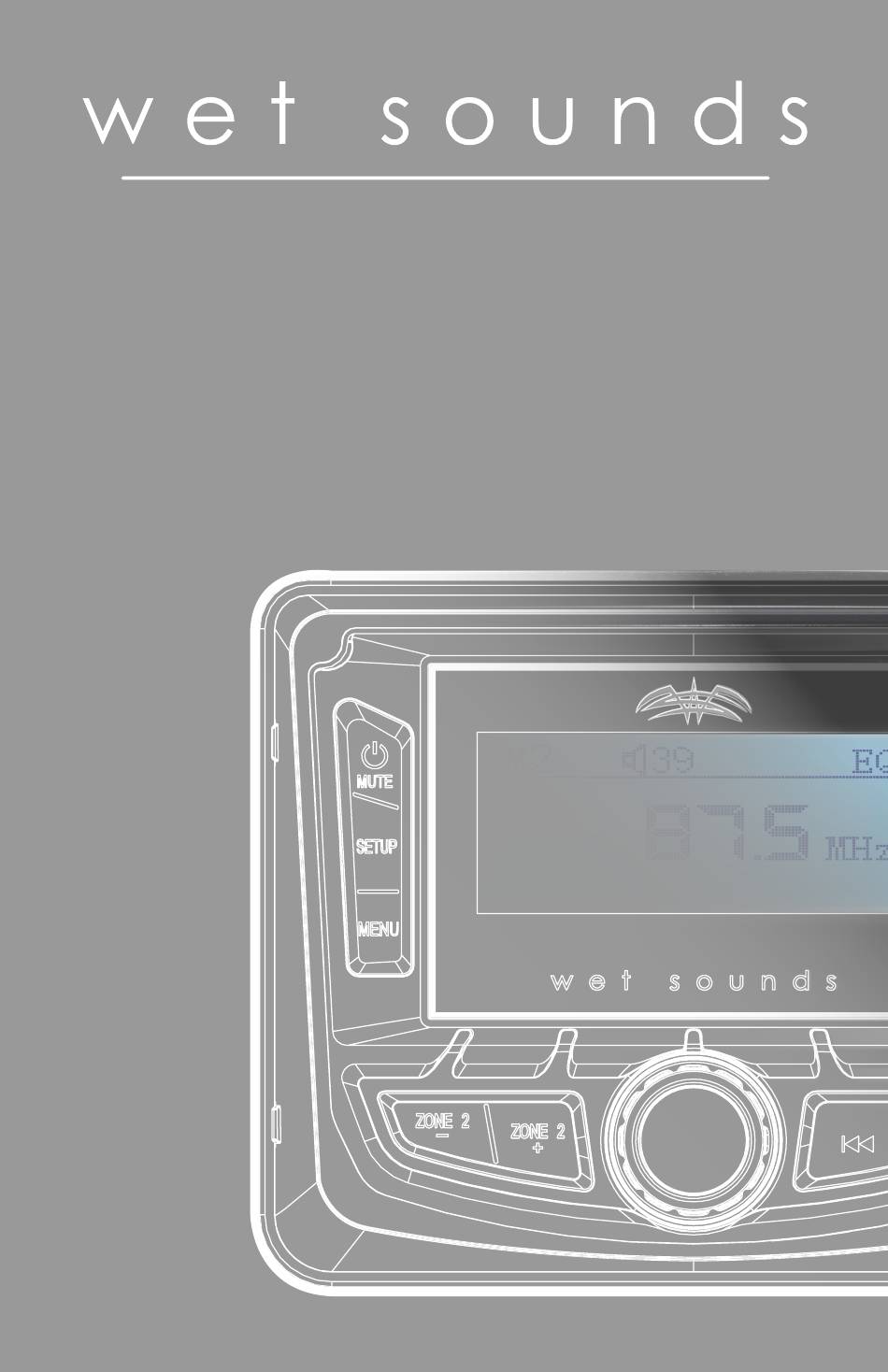

  • Page 1 WS-MC-5 1 piece marine receiver Owner’s Manual...
  • Page 2 Congratulations! Thank you for purchasing the Wet Sounds WS-MC-5 1 piece marine receiver. Wet Sounds products represent the ultimate in high performance audio. Wet Sounds products are specifically engineered to withstand rigorous marine environments.

  • Page 3: Table Of Contents

    Table of Content Please take a moment to look over this instruction manual before enjoying the product. Installation Specifications Features Controls Setup Source Warranty Manual details are subject to change over time. Please visit wetsounds.com for the latest updates to this manual.

  • Page 4: Installation Specifications

    Installation Specifications Product Dimensions 5.1” (129 mm) 2.9” (73 mm) 4.1” (105 mm) 3.1” (80 mm) 1.3” (34 mm) Included Hardware MC-5 Silicon Cover MC-5 Bezel Mounting Bracket Connector A Tapping Screws Flange Nut Dual Riser...
  • Page 5 Wiring Harness Diagram for WS-MC-5: Remote Front line out Rear line out Zone 2 out tower/subs Aux input Radio Ant. Wire Diagram for Connector A Wire Connector A: Pin No. Wire Color Wire Definition Pin No. Wire Color Wire Definition...

  • Page 6: Features

    Features Features Included • AM & FM • Bluetooth Streaming, Auxiliary, • Simple & Secure Bluetooth Pairing for Android & IOS (A2DP/AVRCP 1.4) • 2.7” LCD Display • Internal Power Amplifier 4x50W @ 2 Ohm Max Output • Front & Rear Preamp outputs with fading capability •...

  • Page 7: Controls

    WS-MC-5 Controls Controls allow you to navigate and access MC-5 features. navigate select Main Control Knob (MCK): This allows adjustment of main volume, as well as making selections when the SETUP and MENU features are being used. Rotate the MCK to highlight a feature, then depress the MCK to select the highlighted feature.
  • Page 8 Setup Menu Allows access to controls that affect all functions of the MC-5. Rotate the MCK until the desired function is highlighted, then depress the MCK for access. The functions available are: Audio Allows access to the following audio adjustments: Balance/ Fader: Allows adjustment of the Balance (Left/Right) and Fader (Front Rear) of the main outputs –...
  • Page 9 Day/ Night Mode Allows the ability to scroll through the display options of Day (white screen/black characters), Night (black screen/ white characters), or Auto. In Auto mode, the display is in Day mode until the vehicle’s lights are turned on, then the display goes into Night mode. Note –...
  • Page 10 Source (SRC) Allows access to three different sources: Radio Operation 1. Press SRC, then select the symbol to access the Radio. 2. To select between FM1/FM2/FM3/AM1/AM2, press the BAND button (#10). 3. Short Press the tunner seek up/down buttons (#7/#8) to automatically seek the next strongest station either up or down.

  • Page 11: Warranty

    This warranty gives you specific rights, and you may also have other rights which vary from state to state. What Wet Sounds, Inc. Will Do: Wet Sounds, Inc. will repair any part of your product that proves to be defective in materials or workmanship.
  • Page 12 877-938-7757 www.wetsounds.com 10621 S. Sam Houston PKWY W, Suite 100 Houston, Texas 77071 USA...
