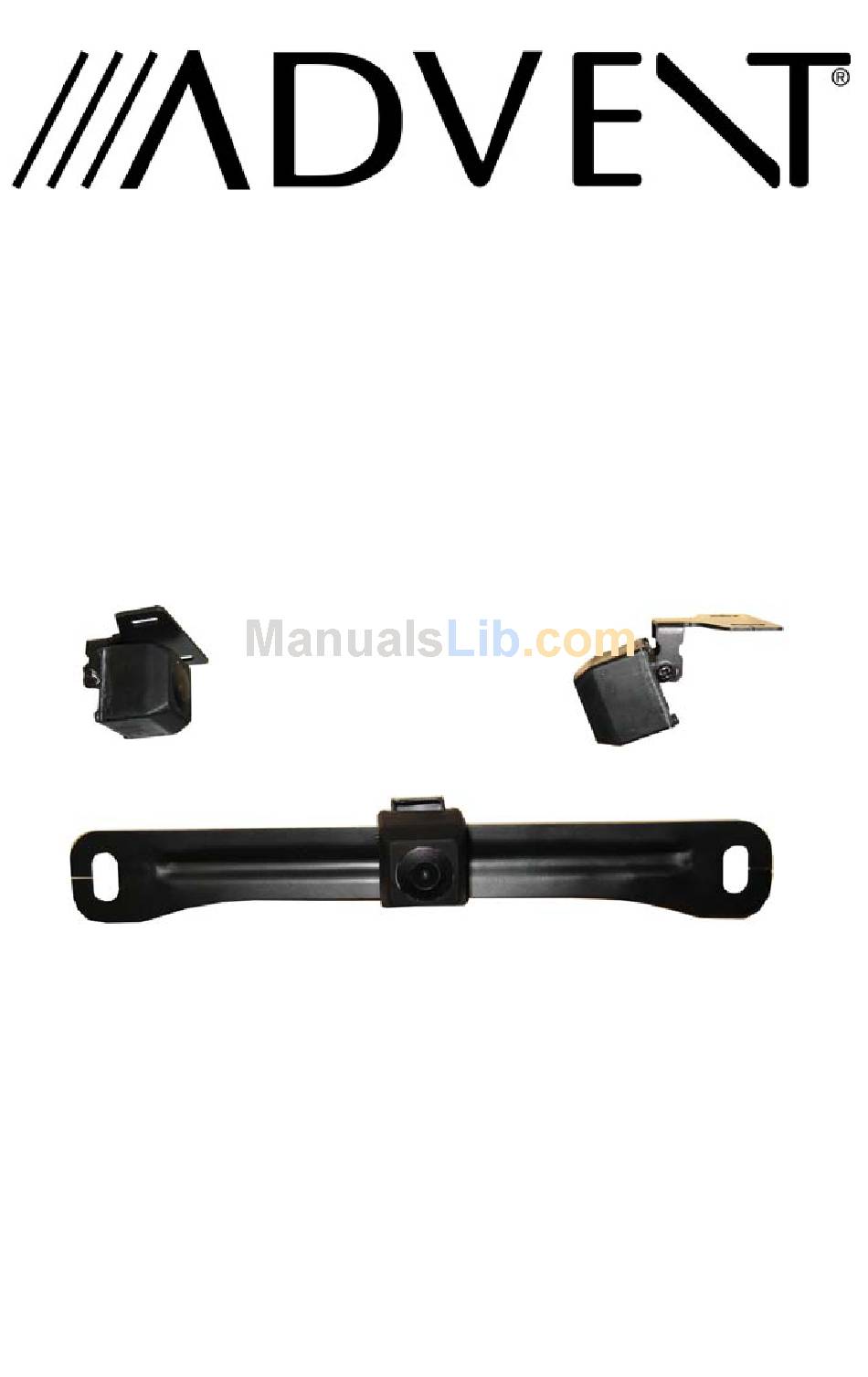

Wired License Plate / Rear Mounted
Features
•
Very Small Compact Camera
•
High Resolution, ¼ inch CMOS Color Camera
•
Waterproof Housing
•
160 Degree Wide View Angle
•
Selectable Image: Normal/Reverse
•
Multiple Camera Mounts including Behind License Plate – Does Not
Obstruct Plate
•
Adjustable Camera Angle
Model: CAM330
Camera
Installation Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Advent CAM330
Summary of Contents for Advent CAM330
- Page 1 High Resolution, ¼ inch CMOS Color Camera • Waterproof Housing • 160 Degree Wide View Angle • Selectable Image: Normal/Reverse • Multiple Camera Mounts including Behind License Plate – Does Not Obstruct Plate • Adjustable Camera Angle Model: CAM330 Camera Installation Manual...
-
Page 2: Table Of Contents
Table of Contents Warnings ...3 Product Description ...4 Packing List ...4 Camera Installation ...5 Camera Wiring Diagram...9 Specifications ...10 Troubleshooting ...10... -
Page 3: Warnings
Warnings The product is intended to assist in safe driving and to allow the driver to have a broader rear view while the vehicle is in reverse. You, as the driver, are solely responsible for the safe operation of your vehicle and the safety of your passengers according to local traffic regulations. -
Page 4: Product Description
This Wired Camera is compatible with most monitors/TFT screens and can be connected using a standard RCA connector. Packing List Parts Camera Power Cable & Adaptor Cable Mounting Screw CAM330 Bracket Manual Barcode # 30242390 30242160 30242010 30242060 30232020... -
Page 5: Camera Installation
Camera Installation License Plate Mounting Instructions 1. Remove the rear license plate. 2. Examine the vehicle to determine the best way to run the power wires to the reverse lights and the extension cable through the car. 3. The Camera can be mounted above or below the plate. (For surface mounting with the included bracket, see the next section.) Determine the mounting location that best suits your needs. - Page 6 that is not covered by the warranty. If drilling a hole, perform the following steps: Acquire a 5/8 inch drill bit, rust preventive, all of which can be purchased at a hardware store. Check behind the intended drilling location before drilling to verify that no wires or mechanisms can interfere with or be damaged during drilling.
- Page 7 sure that the mounting screws will not hit any wires or equipment inside the vehicle. 2. Attach the surface mounting bracket to the vehicle with the hardware included. 3. Route the camera wiring into the vehicle. The wire can be run through an existing grommet, behind a tail lamp, under the trunk molding, or if necessary, through a 5/8 inch hole drilled near the vehicle’s rear license plate.
- Page 8 4. Repeat the above steps for the red wire. Connecting the Video Signal 1. If used with an Advent LCD Monitor such as LCD4WM or LCDM42 the camera power and signal will be provided through a single cable to the monitor (supplied with the monitor).
-
Page 9: Camera Wiring Diagram
Camera Wiring Note: If used with an Advent LCD Monitor such as LCD4WM or LCDM42 the camera power and signal will be provided through a single cable to the monitor (supplied with the monitor). -
Page 10: Specifications
Specifications 1. Voltage: DC12V 2. Current: 50 mA 3. Signal System: NTSC 4. Image Sensor: ¼” CMOS Sensor 5. Horizontal Resolution: 480 lines 6. Viewing Angle: 160 degrees 7. Minimum Illumination: 0.7 Lux 8. Image Display: Selectable Normal/Reverse Image 9. Adjustable Viewing Angle 10. - Page 12 © 2008 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788...
