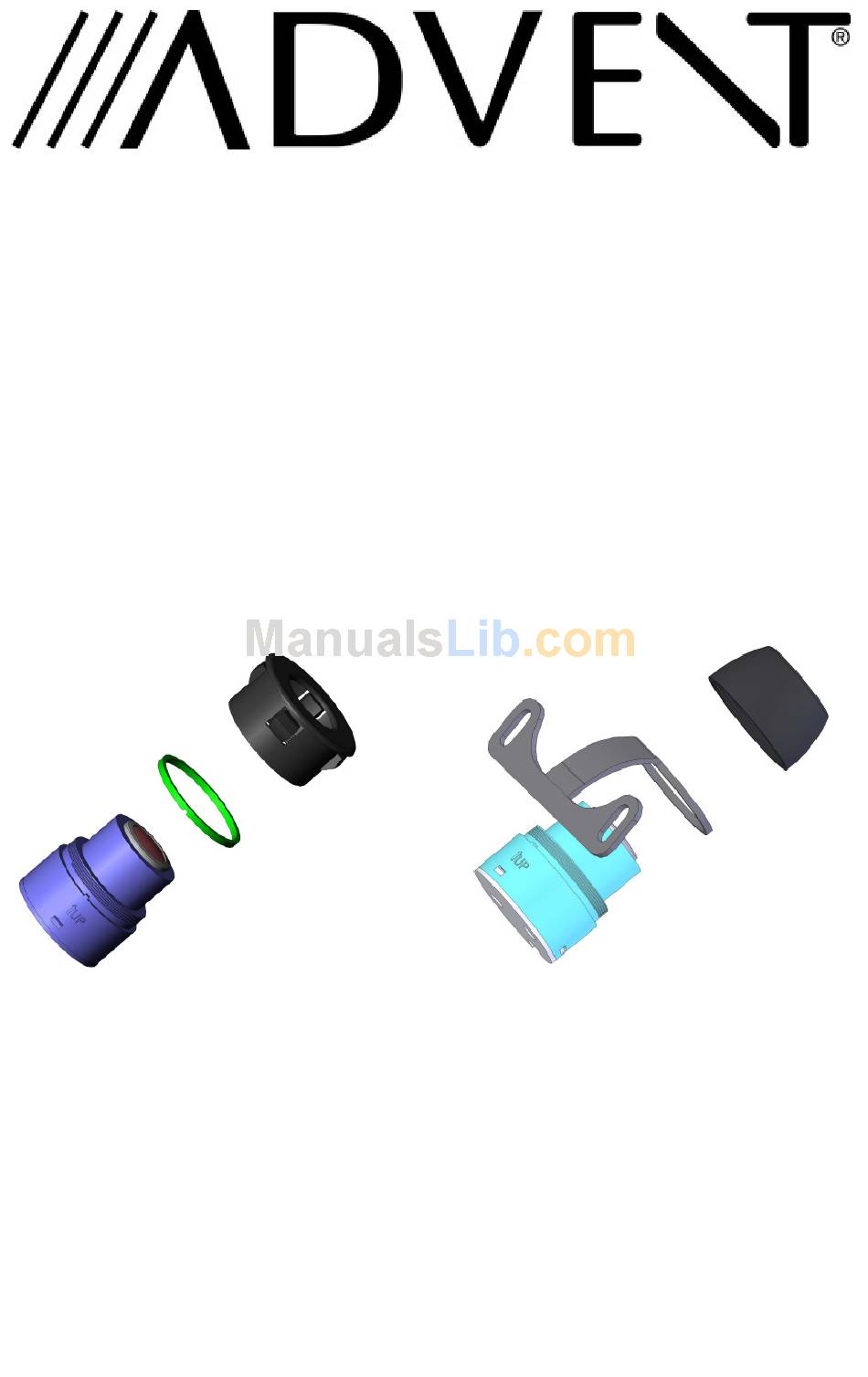

Advent CAM325 Installation Manual

Wired bumper or butterfly mounted camera
Hide thumbs

Advertisement

Table of Contents

Wired Bumper or Butterfly Mounted
Features
•
Very Small Compact Camera
•
High Resolution, ¼ inch CMOS Color Camera
•
Waterproof Housing
•
160 Degree Wide View Angle
•
Selectable Image: Normal/Reverse
•
Multiple Camera Mounts including Flush bumper mount and
adjustable butterfly mount.
•
DC12V – DC24V
Model: CAM325
Camera
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAM325 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advent CAM325

Summary of Contents for Advent CAM325

  • Page 1 High Resolution, ¼ inch CMOS Color Camera • Waterproof Housing • 160 Degree Wide View Angle • Selectable Image: Normal/Reverse • Multiple Camera Mounts including Flush bumper mount and adjustable butterfly mount. • DC12V – DC24V Model: CAM325 Camera Installation Manual...

  • Page 2: Table Of Contents

    Table of Contents Warnings ...3 Product Description ...4 Packing List ...4 Camera Installation ...5 Camera Wiring Diagram...8 Specifications ...9 Troubleshooting ...9...

  • Page 3: Warnings

    Warnings The product is intended to assist in safe driving and to allow the driver to have a broader rear view while the vehicle is in reverse. You, as the driver, are solely responsible for the safe operation of your vehicle and the safety of your passengers according to local traffic regulations.

  • Page 4: Product Description

    Product Description This new camera system gives you two mounting options for installing a backup camera onto the rear of your vehicle (surface butterfly mount and in bumper flush mount). This Wired Camera is compatible with most monitors/TFT screens and can be connected using a standard RCA connector.

  • Page 5: Camera Installation

    Camera Installation Butterfly Mounting Instructions 1. Assemble the camera – ensure that the top of the camera marked with an alignment arrow and the word “UP” is aligned with the notch in the metal bracket. 2. Decide on a suitable mounting position. 3.
  • Page 6 Drill a 5/8 inch hole at the selected location. Coat the edge of the hole with rust preventative. Route the camera cable through the grommet and then through the hole. Insert the grommet in the hole to keep water from entering the vehicle.
  • Page 7 4. Repeat the above steps for the red wire. Connecting the Video Signal 1. If used with an Advent LCD Monitor such as LCD4WM or LCDM42 the camera power and signal will be provided through a single cable to the monitor (supplied with the monitor).

  • Page 8: Camera Wiring Diagram

    To change back to reverse image view, reconnect the blue wires and secure with electrical tape. Camera Wiring Note: If used with an Advent LCD Monitor such as LCD4WM or LCDM42 the camera power and signal will be provided through a single cable to the monitor (supplied with the monitor).

  • Page 9: Specifications

    Specifications 1. Voltage: DC9v – DC24v 2. Current: 50 mA 3. Signal System: NTSC 4. Image Sensor: ¼” CMOS Sensor 5. Horizontal Resolution: 480 lines 6. Viewing Angle: 160 degrees 7. Minimum Illumination: 0.7 Lux 8. Image Display: Selectable Normal/Reverse Image 9.
  • Page 11 © 2008 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788...
