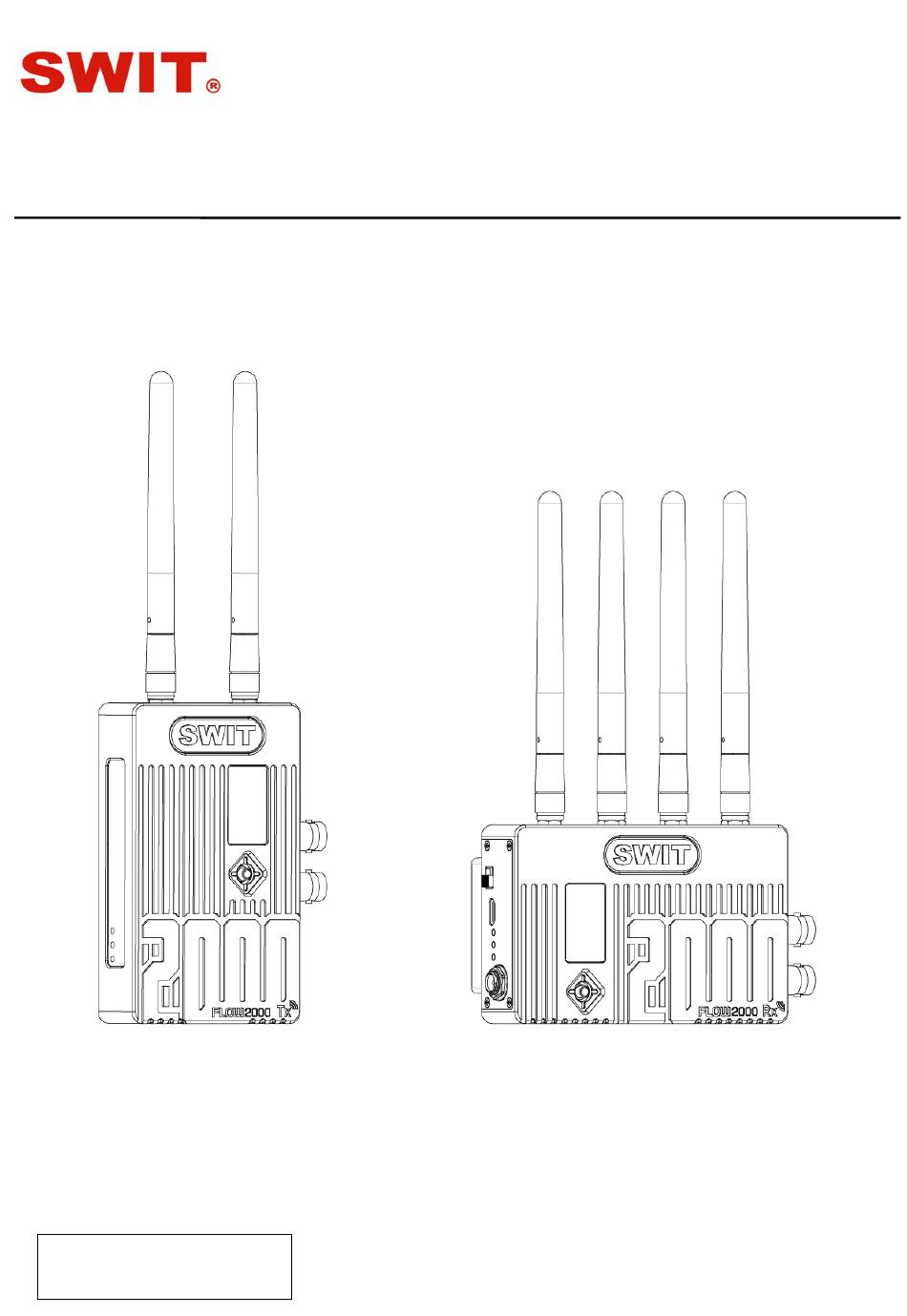

- Page 1 SWIT Electronics Co., Ltd. Ver：A User Manual Please read this user manual throughout before using...
- Page 2 1. All internal technologies of this product are protected, including device, software and trademark. Reproduction in whole or in part without written permission is prohibited. 2. All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners.
-
Page 3: Safety Precautions
Safety Precautions Please follow the safety precautions before using. The following conditions are not covered by warranty. 1. Unauthorized repairs or other Unauthorized operations. 2. Inappropriate placement including but not limited to lighting, fire, exposure to rain, water or gas. 3. -
Page 4: Product Introduction
FLOW2000 includes transmitter and receiver, adopts the latest encrypted transmission technology, and supports SDI and HDMI wirelessly transmitted in 600 meters scale (Line-of-Sight), 2 channels SDI/HDMI digital video transmission, auto pairing and OLED display. FLOW2000 is equipped with DC power connector, compact size, portable, and the receiving signal is very stable. -
Page 5: Appearance Instruction
⑼ USB：Micro USB, software upgrade interface ⑽ HDMI in： HDMI input (HDMI-A type connector) ⑾ Battery plate：”F” plates can be used. We recommend SWIT batteries like: S-8972, S-8970, S-8770,S-8975 compatible with SONY “L” series NP-F770/970. ⑿ SDI LOOP：SDI Loop out (BNC connector) ⒀... - Page 6 There is no recognizable video signal input Constant On The wireless network connection is normal Link Flash The wireless network connection is abnormal ⒀ Battery plate：”F” plates can be used. We recommend SWIT batteries like: S-8972, S-8970, S-8770, S-8975 compatible with SONY “L” series NP-F770/970.
-
Page 7: Oled Display
Device LED indicator Status Description Constant On Power connected and switched on Power Power disconnected and switched off FLOW2000 Constant On There is recognizable video signal input Video Receiver Flash There is no recognizable video signal input Constant On The wireless network connection is normal... -
Page 8: Setup Connection
6. Both transmitter and receiver support manual switching of frequency points. 5. Setup connection ⑴ Connect the SDI in/HDMI in interface of the FLOW2000 transmitter to the SDI out/HDMI out of the camera or video output device. ⑵ Connect the SDI out/HDMI out interface of the FLOW2000 receiver to the SDI in/HDMI in of the monitor or switch station. - Page 9 6. In one transmitter to multi-receivers mode, when “SLAV” mode receiver and transmitter are paired, the "HOST" mode receiver must be powered on. 7. The way to get the best effective of Wireless Transmission ⑴Set the antenna on both transmitter and receiver vertically straight up, no request to spread. If installed flat, still keep the antenna vertically straight up to extend transmission distance and stabilize transmission quality.
- Page 10 ⑵ Set the receiver as high as possible to avoid interference. ⑶ Avoid walls, trees and water to reduce signal attenuation.
-
Page 11: Troubleshooting
8. Trouble shooting If the receiver failed to output video correctly, the possible causes are as below; please find the solution from following chart： The receiving Possible causes Solution video transmitter receiver Check power connection and switch on powered on the transmitter and receiver The antennas are not installed properly Install the antennas properly and screw... -
Page 12: Specification
9. Specification Model FLOW2000T Transmitter FLOW2000R Receiver Input SDI×1、HDMI×1 Output SDI×1 HDMI×1、SDI×2 1080I （ 60∕59.94∕50） ∕1080PsF （24∕23.98） ∕720P （60∕59.94∕50)∕1080P Video format （60∕59.94∕50∕30∕29.97∕25∕24∕23.98） Wireless 5180~5220MHz and 5760~5820MHz frequency modulation mode OFDM Support 16QAM, 64QAM, QPSK, BPSK modulation mode transmission 600m（Line of sight） distance Power ≤8W... -
Page 13: Fcc Statement
FCC Statement Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
