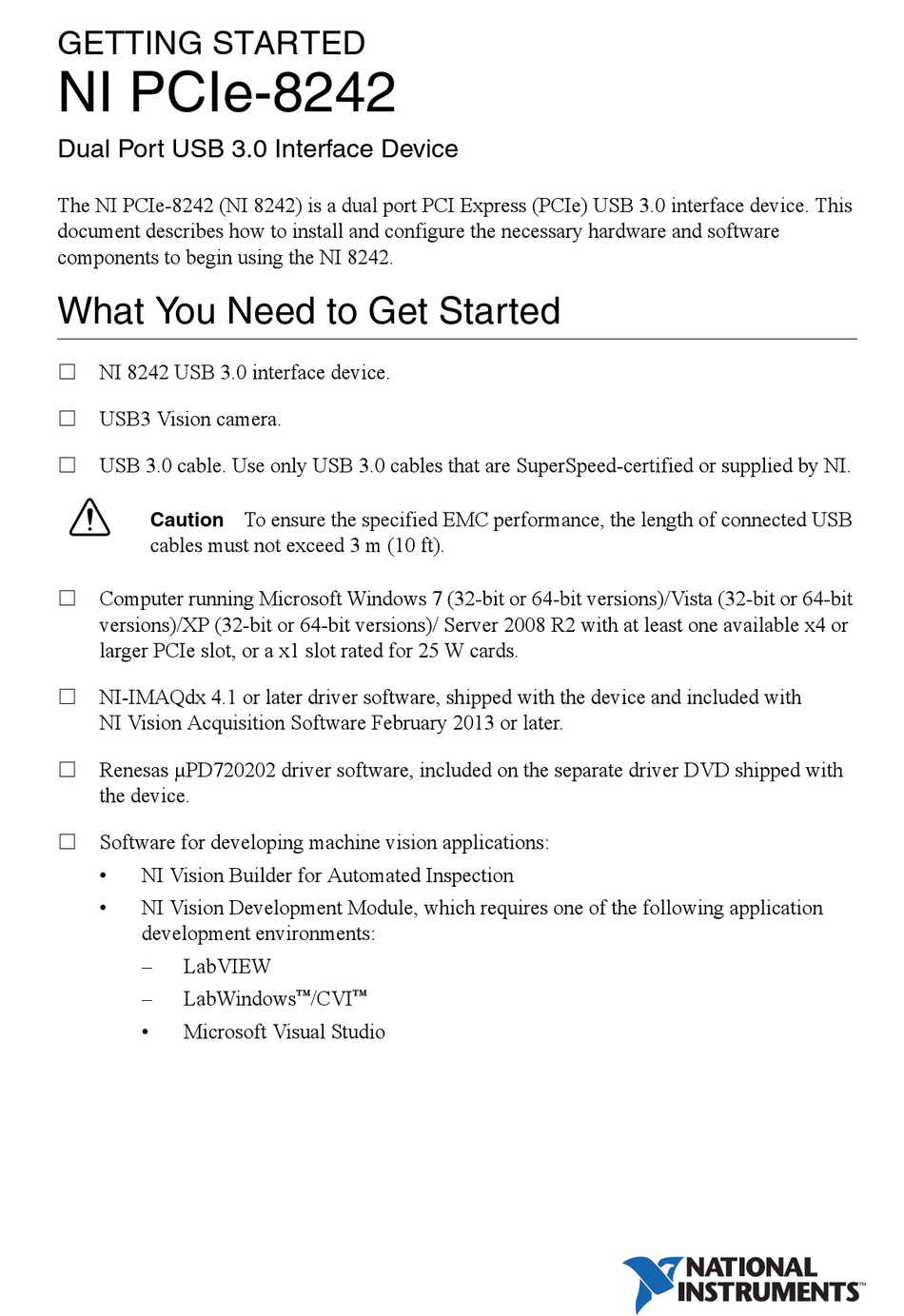

GETTING STARTED
NI PCIe-8242
Dual Port USB 3.0 Interface Device
The NI PCIe-8242 (NI 8242) is a dual port PCI Express (PCIe) USB 3.0 interface device. This
document describes how to install and configure the necessary hardware and software
components to begin using the NI 8242.
What You Need to Get Started
NI 8242 USB 3.0 interface device.
USB3 Vision camera.
USB 3.0 cable. Use only USB 3.0 cables that are SuperSpeed-certified or supplied by NI.
Caution
cables must not exceed 3 m (10 ft).
Computer running Microsoft Windows 7 (32-bit or 64-bit versions)/Vista (32-bit or 64-bit
versions)/XP (32-bit or 64-bit versions)/ Server 2008 R2 with at least one available x4 or
larger PCIe slot, or a x1 slot rated for 25 W cards.
NI-IMAQdx 4.1 or later driver software, shipped with the device and included with
NI Vision Acquisition Software February 2013 or later.
Renesas µPD720202 driver software, included on the separate driver DVD shipped with
the device.
Software for developing machine vision applications:
•
NI Vision Builder for Automated Inspection
•
NI Vision Development Module, which requires one of the following application
development environments:
–
LabVIEW
–
LabWindows
•
Microsoft Visual Studio
To ensure the specified EMC performance, the length of connected USB
™
/CVI
™
Advertisement
Table of Contents
Related Manuals for National Instruments PCIe-8242
Summary of Contents for National Instruments PCIe-8242
- Page 1 NI PCIe-8242 Dual Port USB 3.0 Interface Device The NI PCIe-8242 (NI 8242) is a dual port PCI Express (PCIe) USB 3.0 interface device. This document describes how to install and configure the necessary hardware and software components to begin using the NI 8242.
-
Page 2: Safety Information
You can compromise the safety protection if the hardware is damaged in any way. If the hardware is damaged, return it to National Instruments for repair. Clean the device and accessories by brushing off light dust with a soft, nonmetallic brush. - Page 3 Working voltage is the highest rms value of an AC or DC voltage that can occur across any particular insulation. MAINS is defined as a hazardous live electrical supply system that powers hardware. Suitably rated measuring circuits may be connected to the MAINS for measuring purposes. Getting Started with the NI PCIe-8242 | © National Instruments | 3...
-
Page 4: Electromagnetic Compatibility Guidelines
Furthermore, any modifications to the product not expressly approved by National Instruments could void your authority to operate it under your local regulatory rules. -
Page 5: Installing The Vision Development Module
To avoid such damage in handling the device, take the following precautions: Ground yourself using a grounding strap or by touching a grounded object, such as the computer chassis. Getting Started with the NI PCIe-8242 | © National Instruments | 5... - Page 6 Caution Remove the device from the package and inspect it for loose components or any other signs of damage. Notify National Instruments if the device appears damaged in any way. Do not install a damaged device in the computer. Store the NI 8242 in the antistatic package when not in use.
-
Page 7: Confirming The Device Is Recognized
(1.59 oz) Camera Interface..........2 USB 3.0 connectors USB 3.0 Interface Number of ports..........2 Interface ............USB 3.0 Speed ..............1.5 Mbps, 12 Mbps, 480 Mbps, 5 Gbps Getting Started with the NI PCIe-8242 | © National Instruments | 7... - Page 8 EN 61326-1 (IEC 61326-1): Class B emissions; Basic immunity • EN 55011 (CISPR 11): Group 1, Class B emissions • EN 55022 (CISPR 22): Class B emissions • EN 55024 (CISPR 24): Immunity 8 | ni.com | Getting Started with the NI PCIe-8242...
-
Page 9: Online Product Certification
WEEE recycling center. For more information about WEEE recycling centers, National Instruments WEEE initiatives, and compliance with WEEE Directive 2002/96/EC on Waste and Electronic Equipment, visit ni.com/environment/ weee Getting Started with the NI PCIe-8242 | © National Instruments | 9... -
Page 10: Worldwide Support And Services
National Instruments corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas, 78759-3504. National Instruments also has offices located around the world. For telephone support in the United States, create your service request at or dial ni.com/support... - Page 11 NI product. Refer to the Export Compliance Information at ni.com/legal/export-compliance for the National Instruments global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other import/export data. NI MAKES NO EXPRESS OR IMPLIED WARRANTIES AS TO THE ACCURACY OF THE INFORMATION CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS.
