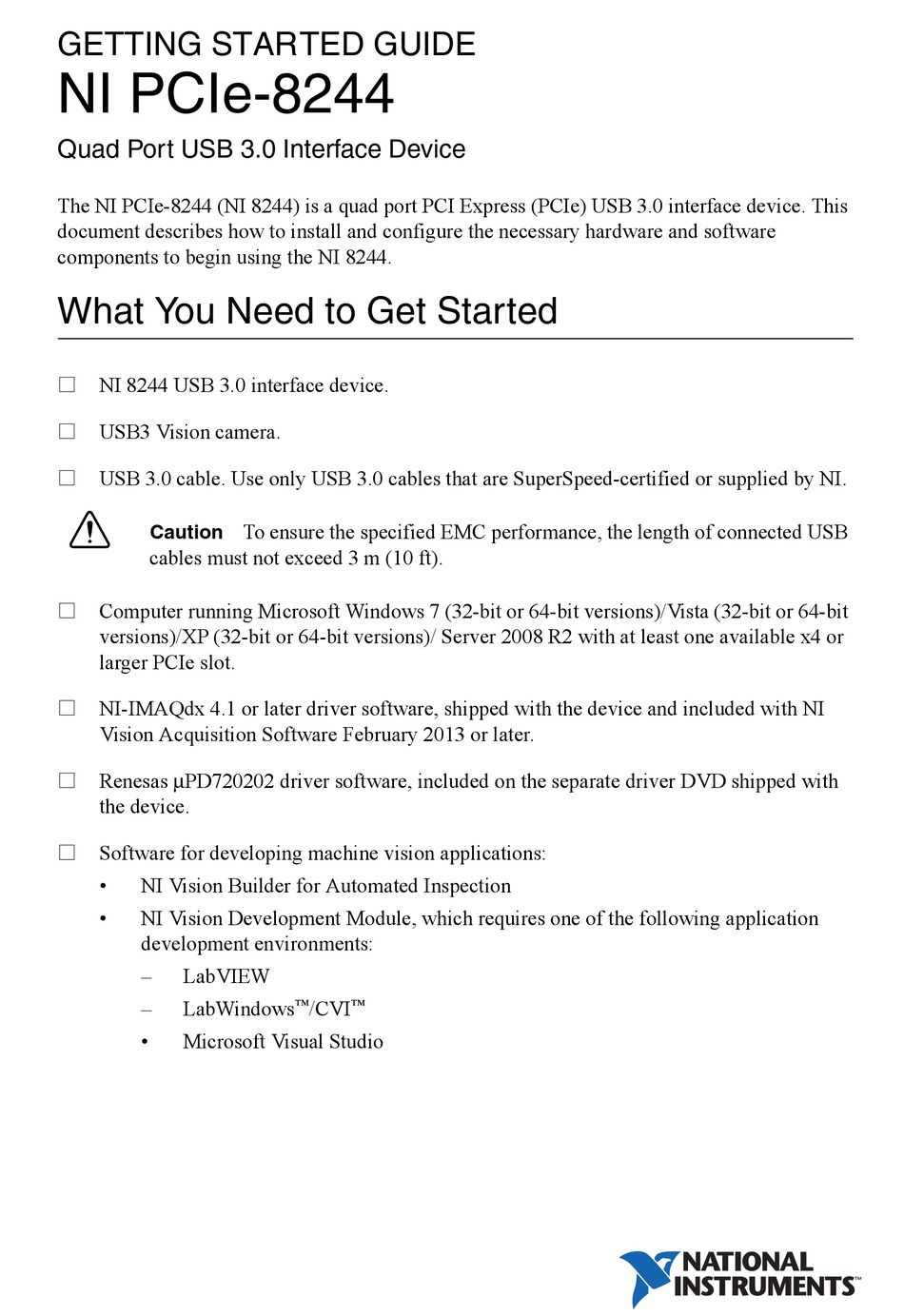

GETTING STARTED GUIDE
NI PCIe-8244
Quad Port USB 3.0 Interface Device
The NI PCIe-8244 (NI 8244) is a quad port PCI Express (PCIe) USB 3.0 interface device. This
document describes how to install and configure the necessary hardware and software
components to begin using the NI 8244.
What You Need to Get Started
NI 8244 USB 3.0 interface device.
USB3 Vision camera.
USB 3.0 cable. Use only USB 3.0 cables that are SuperSpeed-certified or supplied by NI.
Caution
cables must not exceed 3 m (10 ft).
Computer running Microsoft Windows 7 (32-bit or 64-bit versions)/Vista (32-bit or 64-bit
versions)/XP (32-bit or 64-bit versions)/ Server 2008 R2 with at least one available x4 or
larger PCIe slot.
NI-IMAQdx 4.1 or later driver software, shipped with the device and included with NI
Vision Acquisition Software February 2013 or later.
Renesas μPD720202 driver software, included on the separate driver DVD shipped with
the device.
Software for developing machine vision applications:
•
NI Vision Builder for Automated Inspection
•
NI Vision Development Module, which requires one of the following application
development environments:
–
LabVIEW
–
LabWindows
•
Microsoft Visual Studio
To ensure the specified EMC performance, the length of connected USB
™
™
/CVI
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for National Instruments PCIe-8244
Summary of Contents for National Instruments PCIe-8244
- Page 1 NI PCIe-8244 Quad Port USB 3.0 Interface Device The NI PCIe-8244 (NI 8244) is a quad port PCI Express (PCIe) USB 3.0 interface device. This document describes how to install and configure the necessary hardware and software components to begin using the NI 8244.
-
Page 2: Safety Information
You can compromise the safety protection if the hardware is damaged in any way. If the hardware is damaged, return it to National Instruments for repair. Clean the device and accessories by brushing off light dust with a soft, nonmetallic brush. - Page 3 Working voltage is the highest rms value of an AC or DC voltage that can occur across any particular insulation. MAINS is defined as a hazardous live electrical supply system that powers hardware. Suitably rated measuring circuits may be connected to the MAINS for measuring purposes. NI PCIe-8244 Getting Started Guide | © National Instruments | 3...
-
Page 4: Electromagnetic Compatibility Guidelines
Furthermore, any modifications to the product not expressly approved by National Instruments could void your authority to operate it under your local regulatory rules. -
Page 5: Installing The Vision Development Module
To avoid such damage in handling the device, take the following precautions: Ground yourself using a grounding strap or by touching a grounded object, such as the computer chassis. NI PCIe-8244 Getting Started Guide | © National Instruments | 5... - Page 6 Caution Remove the device from the package and inspect it for loose components or any other signs of damage. Notify National Instruments if the device appears damaged in any way. Do not install a damaged device in the computer. Store the NI 8244 in the antistatic package when not in use.
-
Page 7: Specifications
Speed ..............1.5 Mbps, 12 Mbps, 480 Mbps, 5 Gbps PCI Express Interface PCI Express compliance ........2.0 Native link width ..........x4 Up-plugging link width availability ....x8, x16 NI PCIe-8244 Getting Started Guide | © National Instruments | 7... -
Page 8: Power Requirements
EN 55011 (CISPR 11): Group 1, Class B emissions • EN 55022 (CISPR 22): Class B emissions • EN 55024 (CISPR 24): Immunity • AS/NZS CISPR 11: Group 1, Class B emissions • AS/NZS CISPR 22: Class B emissions 8 | ni.com | NI PCIe-8244 Getting Started Guide... -
Page 9: Online Product Certification
National Instruments WEEE initiatives, and compliance with WEEE Directive 2002/ 96/EC on Waste and Electronic Equipment, visit ni.com/environment/weee National Instruments (RoHS) National Instruments RoHS ni.com/ (For information about China RoHS compliance, environment/rohs_china go to ni.com/environment/rohs_china NI PCIe-8244 Getting Started Guide | © National Instruments | 9... -
Page 10: Worldwide Support And Services
National Instruments corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas, 78759-3504. National Instruments also has offices located around the world. For telephone support in the United States, create your service request at or dial ni.com/support... - Page 11 NI product. Refer to the Export Compliance Information at ni.com/legal/export-compliance for the National Instruments global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other import/export data. NI MAKES NO EXPRESS OR IMPLIED WARRANTIES AS TO THE ACCURACY OF THE INFORMATION CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS.
