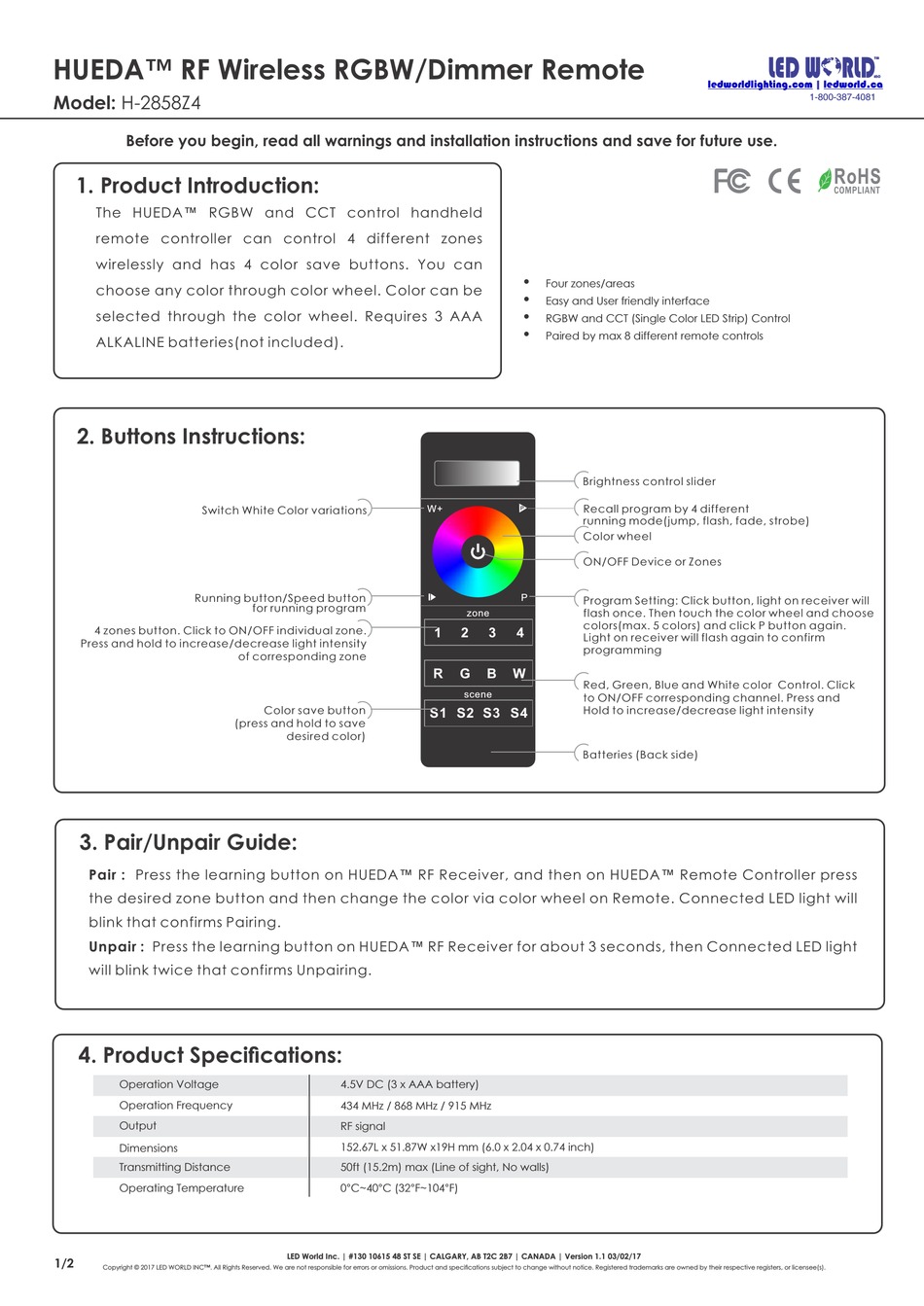

LED World HUEDA H-2858Z4 Quick Start Manual

HUEDA™ RF Wireless RGBW/Dimmer Remote
Model: H-2858Z4
Before you begin, read all warnings and installation instructions and save for future use.

1. Product Introduction:

The HUEDA™ RGBW and CCT control handheld
remote controller can control 4 different zones
wirelessly and has 4 color save buttons. You can
choose any color through color wheel. Color can be
selected through the color wheel. Requires 3 AAA
ALKALINE batteries(not included).

2. Buttons Instructions:

Switch White Color variations
Running button/Speed button
4 zones button. Click to ON/OFF individual zone.
Press and hold to increase/decrease light intensity

3. Pair/Unpair Guide:

Pair : Press the learning button on HUEDA™ RF Receiver, and then on HUEDA™ Remote Controller press
the desired zone button and then change the color via color wheel on Remote. Connected LED light will
blink that confirms Pairing.
Unpair : Press the learning button on HUEDA™ RF Receiver for about 3 seconds, then Connected LED light
will blink twice that confirms Unpairing.
4. Product Specications:
Operation Voltage
Operation Frequency
Output
Dimensions
Transmitting Distance
Operating Temperature
1/2
Copyright © 2017 LED WORLD INC™. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
for running program
of corresponding zone
Color save button
(press and hold to save
desired color)
4.5V DC (3 x AAA battery)
434 MHz / 868 MHz / 915 MHz
RF signal
152.67L x 51.87W x19H mm (6.0 x 2.04 x 0.74 inch)
50ft (15.2m) max (Line of sight, No walls)
0°C~40°C (32°F~104°F)
LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA | Version 1.1 03/02/17
Ÿ
Four zones/areas
Ÿ
Easy and User friendly interface
Ÿ
RGBW and CCT (Single Color LED Strip) Control
Ÿ
Paired by max 8 different remote controls
Brightness control slider
W+ Recall program by 4 different
P
running mode(jump, flash, fade, strobe)
Color wheel
ON/OFF Device or Zones
P
Program Setting: Click button, light on receiver will
flash once. Then touch the color wheel and choose
zone
colors(max. 5 colors) and click P button again.
1 2 3 4
Light on receiver will flash again to confirm
programming
R G B W
Red, Green, Blue and White color Control. Click
scene
to ON/OFF corresponding channel. Press and
Hold to increase/decrease light intensity
S1 S2 S3 S4
Batteries (Back side)
ledworldlighting.com ledworld.ca |
1-800-387-4081
