Pioneer VSX-D811S Service Manual

Hide thumbs Also See for VSX-D811S:

Advertisement

Quick Links

Download this manual

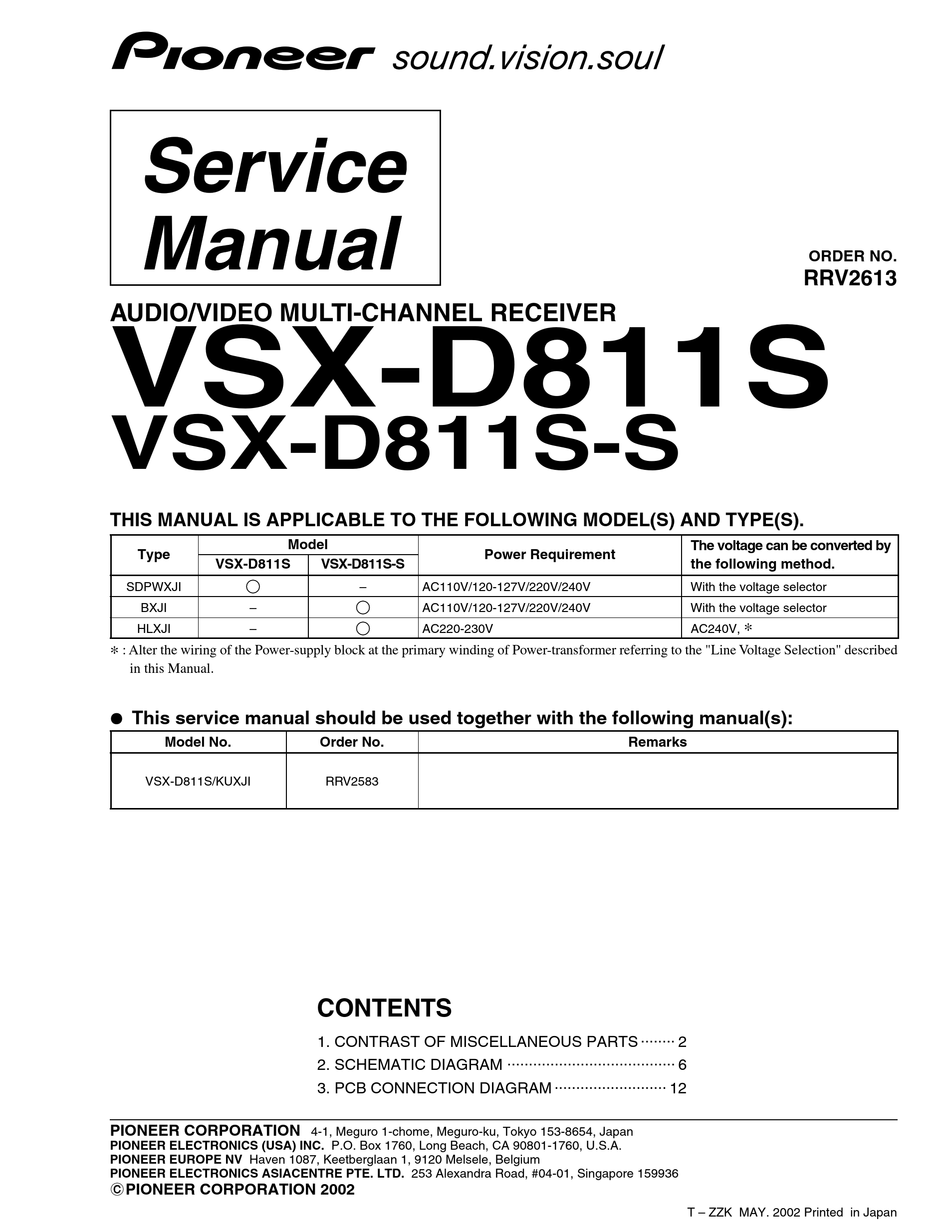

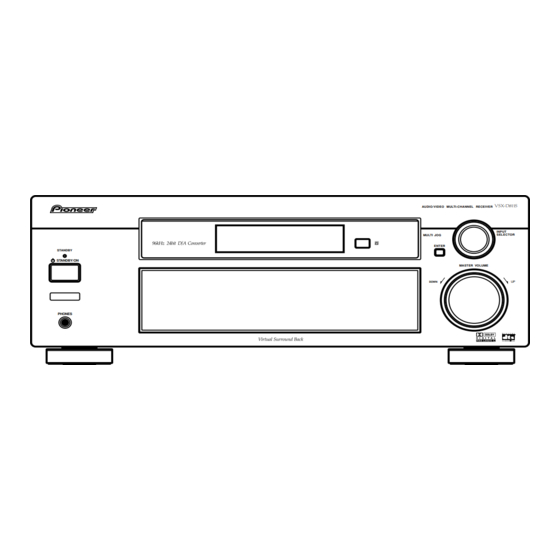

AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSX-D811S
VSX-D811S-S
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
Type
VSX-D811S
SDPWXJI
BXJI
–
HLXJI
–
∗
: Alter the wiring of the Power-supply block at the primary winding of Power-transformer referring to the "Line Voltage Selection" described
in this Manual.
¶ This service manual should be used together with the following manual(s):
Model No.
VSX-D811S/KUXJI
PIONEER CORPORATION
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2002
Power Requirement
VSX-D811S-S
–
AC110V/120-127V/220V/240V
AC110V/120-127V/220V/240V
AC220-230V
Order No.
RRV2583
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS ........ 2
2. SCHEMATIC DIAGRAM ....................................... 6
3. PCB CONNECTION DIAGRAM .......................... 12
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
RRV2613
The voltage can be converted by
the following method.
With the voltage selector
With the voltage selector
∗
AC240V,
Remarks
T – ZZK MAY. 2002 Printed in Japan
ORDER NO.
