MOD - 6271
Thank you for purchasing the MODWAY BED!
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions.
2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 35 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save tools that have been provided.
6. Please keep all fitting out of reach of children.

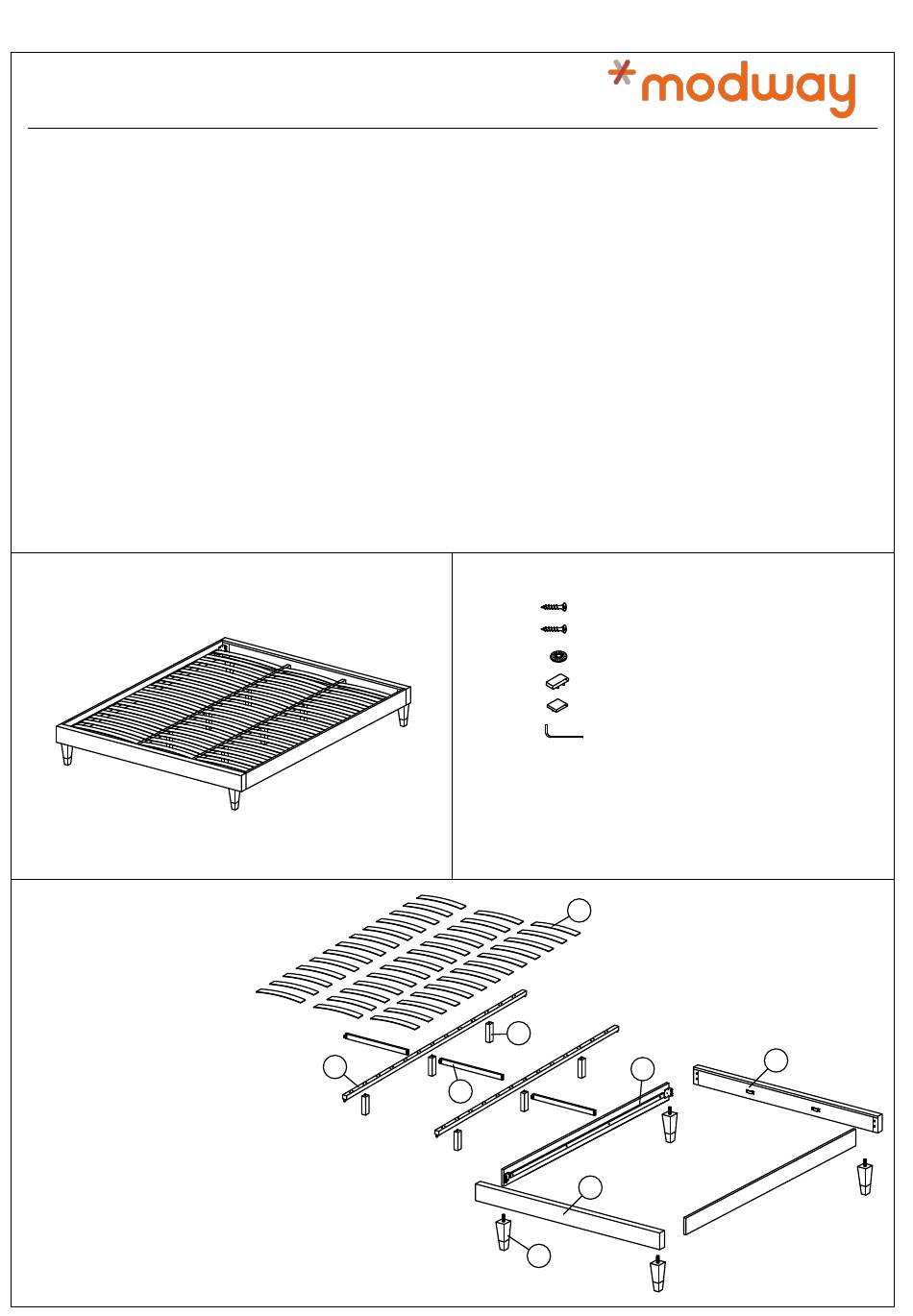

Component:
A.
HEADBOARD
B.
FOOTBOARD
C.
SIDE RAIL (L/R)
D.
CENTER RAIL
E.
CENTER RAIL LEG
F.
CENTER RAIL SUPPORT
G.
BED SLAT
H.
BED LEG
x 1
x 1
x 2
x 2
x 6
D
x 3
x 39
x 4
Hardware:
1
2
3
4
5
6
G
E
F
B
H
WOOD SCREW M4 x 20mm
WOOD SCREW M3.5 x 16mm
PVC BLACK WASHER
BED SLAT SIDE FITTER
BED SLAT CENTER FITTER
M5 ALLEN KEY (BALL SHAPE)
A
C
4 PCS
12 PCS
4 PCS
26 PCS
26 PCS
1 PC
01 of 05
Advertisement
Related Manuals for modway MOD-6271
Summary of Contents for modway MOD-6271
- Page 1 MOD - 6271 Thank you for purchasing the MODWAY BED! Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions. 2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 MOD - 6271 STEP 1 1.1 Insert and secure the Bed leg (H) to the Headboard (A) and Footboard (B) using hardware parts PVC Black Washer (3). 3. PVC BLACK WASHER x 4pcs 7. PROTECTIVE DISC (BLACK) x 4pcs STEP 2 2.1 Fasten Center Rail Leg (E) to Center Rail (D) attach by screwing the protruding nut into the corresponding holes.
- Page 3 MOD - 6271 STEP 3 3.1 Loosen the pre-inserted bolt on the Headboard (A) & Footboard (B) using hardware part Allen Key (6). M5 ALLEN KEY (BALL SHAPE) x 1pcs STEP 4 4.1 Attach the Side Rails (C) to the Headboard (A) & Footboard (B) using hardware part Allen Key (6).
- Page 4 MOD - 6271 STEP 5 5.1 Locate Center Rail (D) into the corresponding brackets inside of Headboard (A) and Footboard (B). 5.2 Insert and secure the Center Rail Support (F) to the Center Rail (D) & Side Rail (C) using hardware parts Wood Screw (2).
- Page 5 MOD - 6271 STEP 7 7.1 Insert the Slats (G) into the end Slat cap (4) & (5) and fix it to the corresponding holes on the Side Rail (C). Palm Palm STEP 7.2 STEP7.1 4. BED SLAT SIDE FITTER x 26pcs 5.
