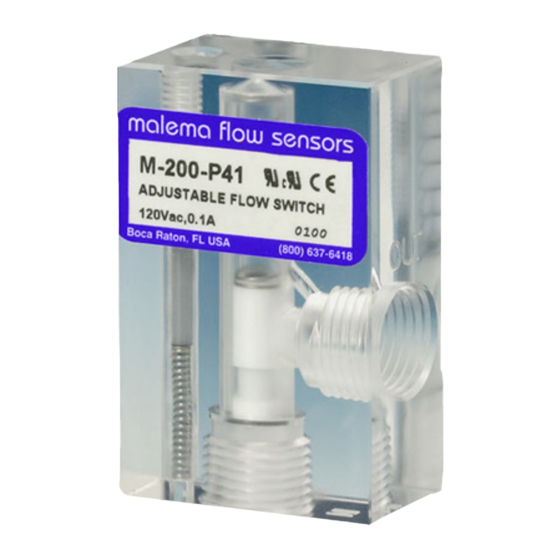

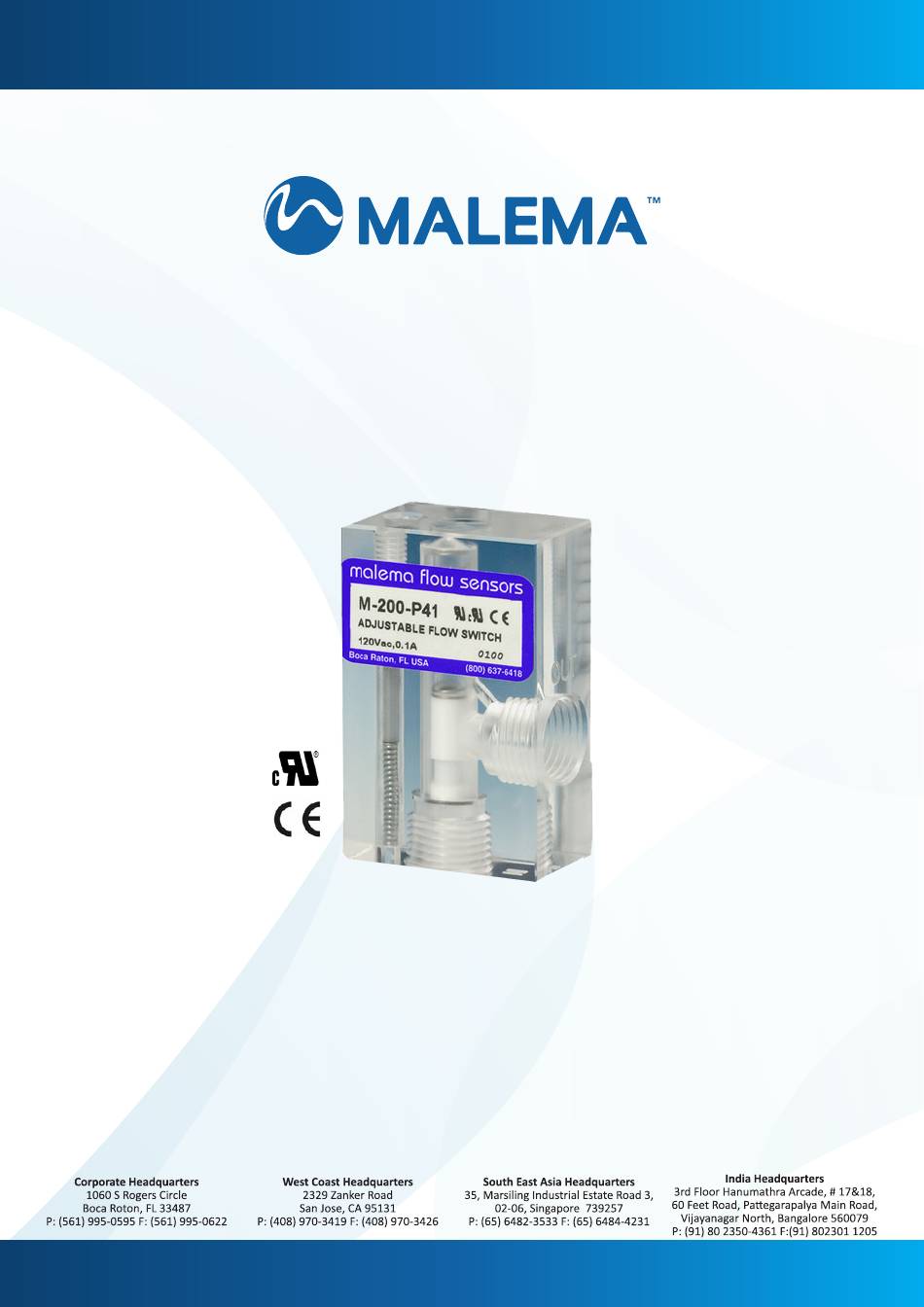

- Page 1 M-200 High flow, adjustable flow switch with right angle Flow Operating Instructions Quick Start Guide malema.com...
- Page 2 Table of Contents Introduction Operation Storage and Handling Installation Instruction Construction Specification Certification Dimensional drawings Flow Setting Ordering Information Warranty malema.com...
- Page 3 The M-200 Series comprises a Body, piston, and Retaining rings. Selecting a flow switch begins with selecting the body; this series is available in 316 Stainless Steel. The M-200 series contains one moving part (i.e. the piston) and two retaining rings that are in the fluid path.
- Page 4 ( replace the piston as shown in see page 3 figure 2. if the piston is replaced incorrectly, incorrect operation will result). 1. A magnet may be used to remove the magnetic piston. 2. PTFE end plugs (on PTFE models) should not be over tightened. malema.com...
- Page 5 No 24 to 18 AWG. 18” length, Polymeric UL Recognized Lead Wires ( Belden cable or special shielded cable is available ) SPST: 2 blue wires Lead Wires Color SPDT: Green - Common, Yellow - Normally Closed, Orange - Normally Open malema.com...
- Page 6 Certifications UL Recognised UL Recognised for Non Hazardous location – UL 138467 CE Compliance Malema flow switches meets CE compliance under LVD 2014/35/EU. RoHS and REACH can be obtained from Malema on request. and Cut-Away drawings Dimensional Illustrated is the M-200 model with 3/8” ports...
- Page 7 * Note: The M-200 Model with 3/4” ports is only available in Brass, PTFE and 316SS Illustrated is the M-200 Model with SAE8 ports. * Note: The M-200 Model with SAE8 ports is only available in Brass and 316 Stainless Steel malema.com...
- Page 8 Corporation. All other trademarks are property of their respective owners. Malema supplies this publication for informational purposes only. While every effort has been made to ensure accuracy, this publication is not intended to make performance claims or process recommendations. Malema does not warrant, guarantee, or assume any legal liability for the accuracy, completeness, timeliness, reliability, or usefulness of any information, product, or process described herein.
