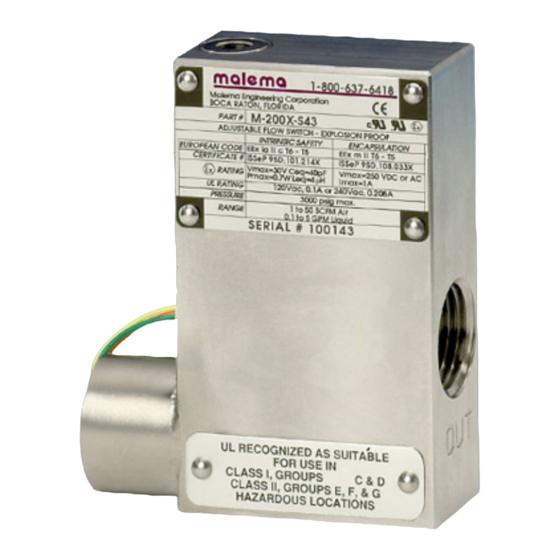

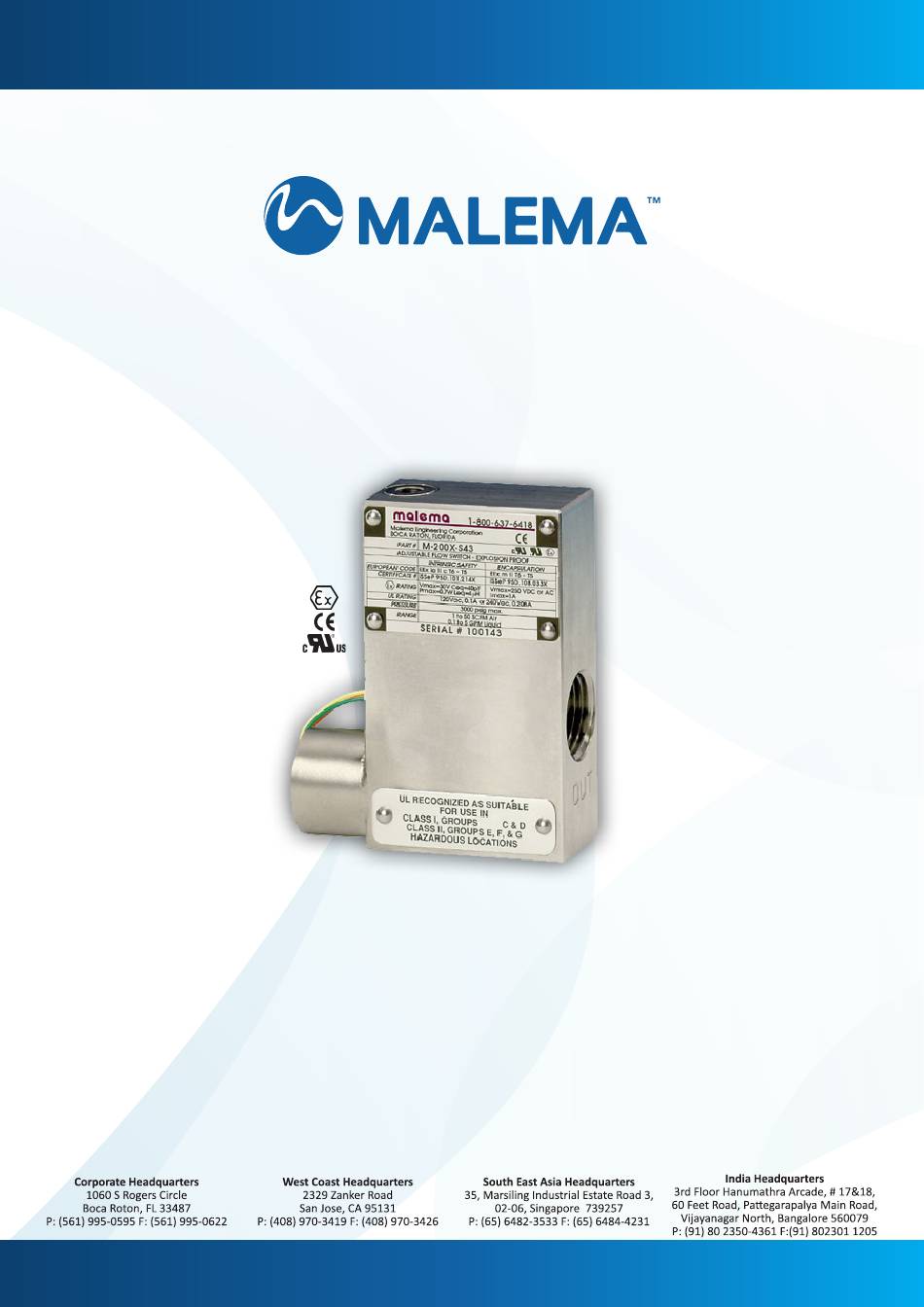

- Page 1 M-200X Explosion proof adjustable flow switch with right angle Flow Operating Instructions Quick Start Guide malema.com...
- Page 2 Table of Contents Introduction Operation Storage and Handling Installation Instruction Construction Specification Certification Dimensional drawings Flow Setting Information Ordering Information Warranty malema.com...
- Page 3 Introduction The M-200X Series flow switches are engineered and field tested for sensing increasing and decreasing flow rates of gases or liquids. Pressure variation effects are minimal. This series features such versatility, economy, and accuracy that they can be used in virtually any application requiring fool-proof inexpensive flow detection.
- Page 4 ( replace the piston as shown in see page 3 figure 2. if the piston is replaced incorrectly, incorrect operation will result). 1. A magnet may be used to remove the magnetic piston. 2. PTFE end plugs (on PTFE models) should not be over tightened. malema.com...
- Page 5 No 24 to 18 AWG. 18” length, Polymeric UL Recognized Lead Wires ( Belden cable or special shielded cable is available ) SPST: 2 blue wires Lead Wires Color SPDT: Green - Common, Yellow - Normally Closed, Orange - Normally Open malema.com...
- Page 6 Certifications CE Compliance Malema flow switches meets CE compliance under LVD 2014/35/EU. RoHS and REACH can be obtained from Malema on request.] UL Recognised 1. UL and Canadian UL Recognized for use in Class I (Groups C,D) and Class II (Groups E,F,G), all divisions, hazardous locations.
- Page 7 Cut Dimensional Drawings Illustrated is the M-200X model with 1/2” ports. Flow Setting Information This model is a adjustable flow switch. The flow set point is fixed at the factory and is field adjustable. Proper calibration of the set point requires the following information. When purchasing a flow switch, use the “Set Point Calibration” form on page i-vi or provide this information on the purchase order.
- Page 8 Corporation. All other trademarks are property of their respective owners. Malema supplies this publication for informational purposes only. While every effort has been made to ensure accuracy, this publication is not intended to make performance claims or pro- cess recommendations. Malema does not warrant, guarantee, or assume any legal liability for the accuracy, completeness, timeliness, reliability, or usefulness of any information, product, or process described herein.
