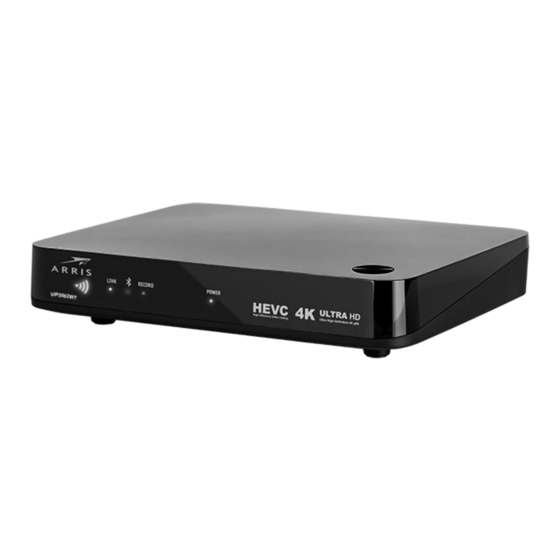

- Page 1 VIP5602WT Wireless IPTV Receiver Installation Guide...
- Page 2 This manual includes the manufacturer’s recommended safeguards and all the information needed to connect your receiver to both your in-home IP network and your entertainment system. The safety and installation information was developed and provided primarily by the receiver manufacturer, ARRIS Enterprises, LLC. VIP5602WT Wireless IPTV Receiver Installation Guide...
- Page 3 Allow for adequate ventilation around the wireless receiver to maintain normal operating temperature. Do not place it in a sealed enclosure without providing for adequate airflow. • Use only the power adapter and cord supplied to connect the VIP5602WT to your home AC power outlet. • Do not use outdoors.
-
Page 4: Table Of Contents
Troubleshooting ............10 VIP5602WT Wireless IPTV Receiver Installation Guide... -
Page 5: Introduction
Introduction Congratulations on receiving your ARRIS VIP5602WT Wireless IPTV Receiver. The VIP5602WT provides these extraordinary home entertainment features: • Wireless input via the Access Point lets you easily position or move your video entertainment system anywhere in your residence without network wires or cables •... -
Page 6: Overview
Blinking blue: Set top box pairing is pairing with the RCU Solid blue: RCU is paired with the wireless receiver RECORD No light: Not recording Solid red: Recording is in progress POWER No light: Wireless receiver is off Solid green: Wireless receiver is on VIP5602WT Wireless IPTV Receiver Installation Guide... -
Page 7: Rear Panel
Allows connectivity with USB 3.0 devices. BLUETOOTH Press and release to initiate Bluetooth remote control PAIRING unit pairing with wireless receiver. Hold the button for 10 seconds to unpair the Bluetooth remote control unit and the wireless receiver. VIP5602WT Wireless IPTV Receiver Installation Guide... -
Page 8: Wireless Connection
When three horizontal dots appear, the connection has been successful. 8. On the front panel of the VIP5602WT, two or more bars on the signal strength indicator should light green. You have now established a secure wireless connection between the Access Point and your VIP5602WT. -
Page 9: Connecting Your Tv Receiver
Connecting Your TV Receiver This section describes alternative methods for connecting the VIP5602WT to your home entertainment system. Instructions and diagrams are included for the following connections: • Digital Audio/Video • Component Video and Digital Audio • Composite Video and Stereo Audio Before you move or change components on your entertainment system, always disconnect power from the wireless receiver. - Page 10 OPTICAL connection for the audio. Common Cabling Examples The following cabling diagrams illustrate common sample audio/video (A/V) connections. When connecting other components to your TV Receiver, refer to the other component installation manuals for additional connection information. VIP5602WT Wireless IPTV Receiver Installation Guide...
-
Page 11: Digital Audio/Video Connections
• If your HDTV has a DVI input, you can use an HDMI-to-DVI converter to connect to the VIP5602WT HDMI connector. DVI video carries video signals only. Use the optical audio or stereo audio connectors to provide audio output. VIP5602WT Wireless IPTV Receiver Installation Guide... -
Page 12: Component Video And Digital Audio Connections
Breakout cable to the correct inputs on your HDTV (as shown). If your HDTV or A/V Receiver has an optical audio input available, use a Digital Optical Audio cable to connect from the VIP5602WT to the correct input on your HDTV or TV Receiver (as shown). -
Page 13: Composite Video And Stereo Audio Connections
Breakout cable to the correct inputs on your HDTV (as shown). Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright protection systems and the picture will be distorted on the television. VIP5602WT Wireless IPTV Receiver Installation Guide... -
Page 14: Troubleshooting
If signal strength is inadequate, try reorienting or relocating the Wireless TV receiver or the Access Point for improved reception. To improve video quality, upgrade your connection (from composite analog to component+digital audio to HDMI). VIP5602WT Wireless IPTV Receiver Installation Guide... - Page 15 Verify that the home theater receiver is set to a surround sound audio mode (Dolby Digital, Dolby Pro Logic® II, Dolby Pro Logic). Verify that the home theater receiver is properly configured to work with all connected speakers. VIP5602WT Wireless IPTV Receiver Installation Guide...
- Page 16 The Wireless Fidelity (WiFi) certification as defined by the Wi-Fi Alliance. Wireless LAN and your Health The VIP5602W/VIP5602WT/VIP5662W, like other radio devices, emit radio frequency electromagnetic energy, but operate within the guidelines found in radio frequency safety standards and recommendations.
- Page 17 RECEIVER AND/OR USING ANY OF THE SOFTWARE, YOU INDICATE YOUR ACCEPTANCE OF EACH OF THE TERMS OF THIS LICENSE. UPON ACCEPTANCE, THIS LICENSE WILL BE A LEGALLY BINDING AGREEMENT BETWEEN YOU AND ARRIS. THE TERMS OF THIS LICENSE APPLY TO YOU AND TO ANY SUBSEQUENT USER OF THIS SOFTWARE. VIP5602WT Wireless IPTV Receiver Installation Guide...
- Page 18 Software. The Software is never sold. ARRIS licenses the Software to the original customer and to any subsequent licensee for personal use only on the terms of this License. ARRIS and its third party licensors retain the ownership of the Software.
- Page 19 Open Source Attributions ARRIS IPTV Set-top Model VIP5602W/VIP5602WT/VIP5662W For instructions on how to obtain a copy of any source code being made publicly available by ARRIS related to software used in these ARRIS products you may send your request in writing to:...
- Page 20 ARRIS Enterprises, Inc. (“ARRIS”). ARRIS reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of ARRIS to provide notification of such revision or change. ARRIS provides this guide without warranty of any kind, either implied or expressed, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 24 Visit our website at: www.arris.com 599569-004-B 02/2018...
