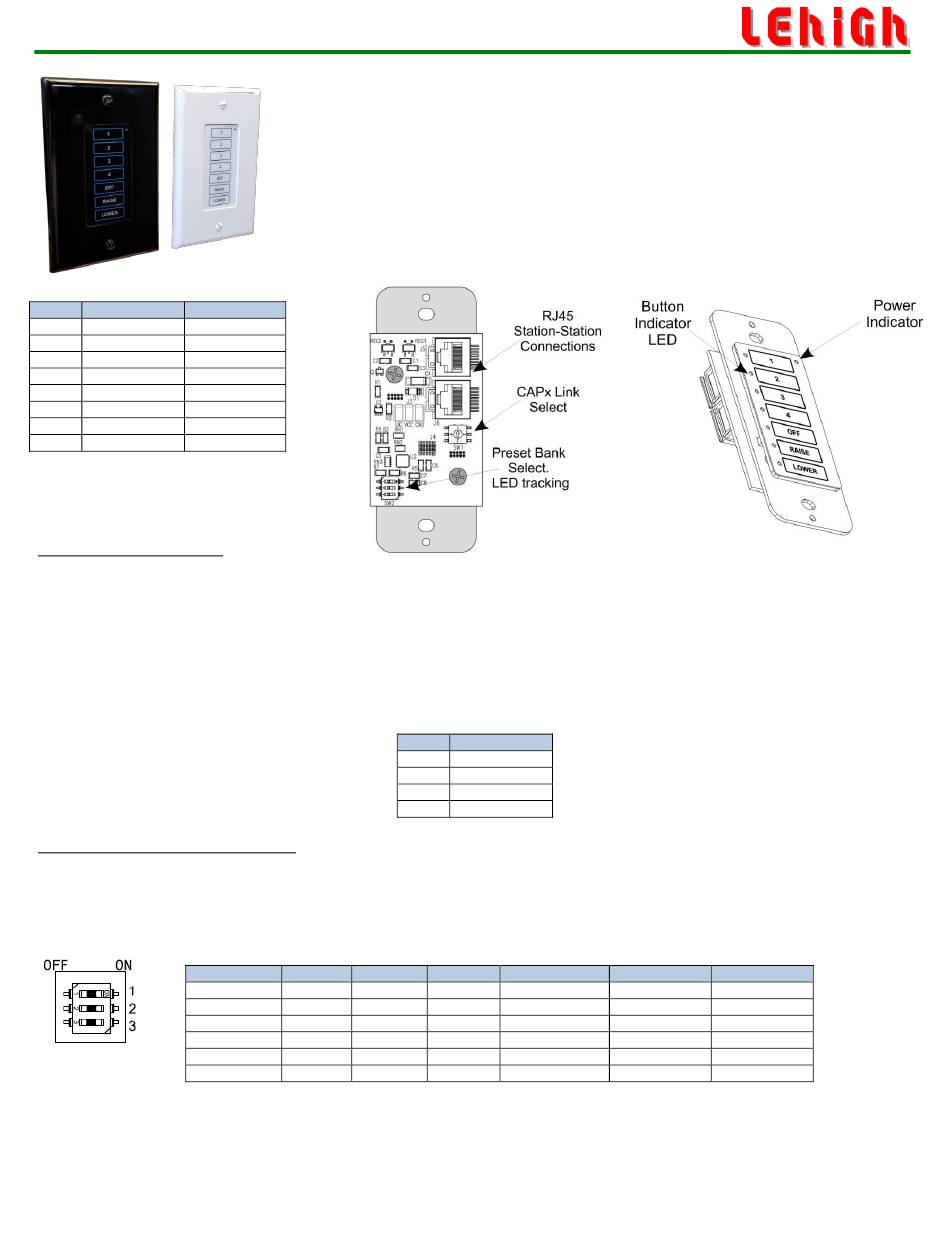

Lehigh E-Flex CapT2 Installation Manual

E-Flex CapT2 Installation Guide F684
CAT5 Connection Schedule
Wire Color
1 White/Orange
2 Orange
3 White/Green
4 Blue
5 White/Blue
6 Green
7 White/Brown
8 Brown
Station Configuration
SW1 – CAPx Signal Selection
Each E-Flex relay panel (EFRP) has four discrete CapT signal inputs (CAP1-4) while the E-Flex room controller (EFRC) supports three
signal inputs (CAP1-3) which are then assigned to control selected zones. These input connections are made over a single Cat5 cable;
wires 3 thru 6 carry the CAPx signals (See CAT5 schedule above). The selection of which CAPx input a station will be connected to will
be made at the station using a rotary switch, SW1.
Note: Multiple stations can be set to connect to the same CAPx signal and stations can be connected to more than one E-Flex panel or
room controller.
SW2 – Preset Bank Select, LED Tracking
SW2 dip switch is used to select preset banks on select stations. The standard CapT2-7 (shown above) provides four preset banks 1-
4, 5-8, 9-12, and 13-16. This dip switch is also used to enable /disable LED tracking on the station. When enabled, the button LED
indicators track the last button pressed. When disabled the button LED indicators are lit only while pressed.
F684 R1.00 Lehigh Electric Products Co. 6265 Hamilton Blvd., Allentown, Pa. 18106 Tel: 610-395-3386 www.lehighdim.com
Description
+24V DC
+24V DC
CAP1 Signal
CAP2 Signal
CAP3 Signal
CAP4 Signal
COM
COM
Function SW2-1 SW2-2
Preset Bank 1 ON
Preset Bank 2 OFF
Preset Bank 3 ON
Preset Bank 4 OFF
Track Last N/A
Lit on Press N/A
*CapT2-5 Button 1 Function.
CapT2 wall stations for the E-Flex Lighting and Energy control system provide a
capacitive touch button interface in a Decora frame. CapT2 wall stations include button
layouts with up to 7-buttons for simple ON/OFF to a 4-preset recall with OFF, and
raise/lower control. The standard 4-preset recall layout is bank selectable via a dip
switch on the rear of the station and can be configured to recall presets 1-4, 5-8, 9-12,
or 13-16 from an E-Flex relay panel or E-Flex room controller. Station interconnects
using standard CAT5 cable.
Power: +24V DC
Unit Load: .25 (UL=50mA)
Cable Length: 300 Ft. maximum station to controller
SW1 CAPx Signal
0 CAP1
1 CAP2
2 CAP3
3 CAP4
SW2-3 CapT2-2
ON N/A Full/Off
ON N/A Preset 1/OFF
OFF N/A Start/Stop Panic
OFF N/A ButtonX
N/A OFF N/A
N/A ON N/A
CapT2-5 CapT2-7
Full* Preset 1-4
Preset 1* Preset 5-8
Preset 16* Preset 9-12
ButtonX Preset 13-16
N/A N/A
N/A N/A
