- Page 1 GDC67178F Instructions for use GSC27178F GDC67178FN...
-
Page 3: Table Of Contents
Refrigerator freezer Thank you for your confi dence in buying our appliance and congratulations on the excellent choice. We hope it will successfully serve its purpose for many years. The appliance is intended solely for household use. Refrigerator freezer (hereinafter: the appliance) consists of two parts: the upper part is the refrigerator and the lower part is the freezer. -
Page 4: Before Fi Rst Operation
Before fi rst operation • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or metal capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 5: A Few Tips On How To Save Power With Your Refrigerator-Freezer Combo
• Warning: Do not use any mechanical accessories when thawing the refrigerator, except for those explicitly recommended by the manufacturer. • Warning: To prevent any pollution be careful not to damage the insulation or refrigeration tubes at the rear wall during the installation, cleaning and disposal of the appliance. -
Page 6: Appliance Description

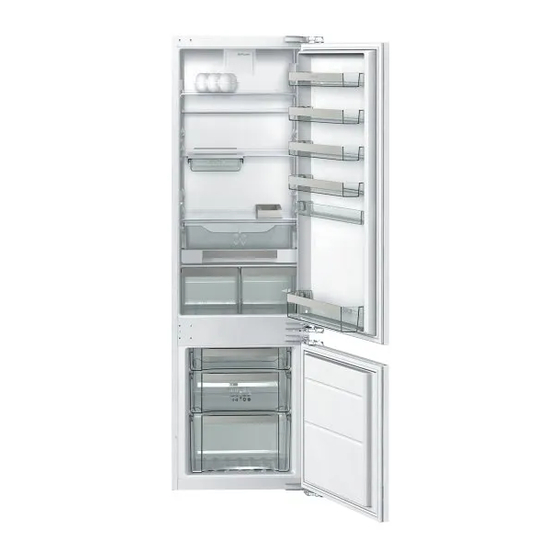

Appliance description Appliance interior equipment may change according to the appliance model. A Refrigerator 1. Fan 2. Control unit 3. Folding egg tray (closed for 6, open for 12 eggs) 4. Bottle rack 5. Pull-out glass shelf – short 6. Pull-out glass shelf (height-adjustable) 7. -
Page 7: Installation And Connections
Installation and connections Selecting the location • Place the appliance in dry and well aired room. The appliance operates best at temperature ranges indicated in the chart below. Relevant class of the appliance is indicated on the rating plate. Class Ambient temperature SN (subnormal) from + 10°C to + 32°C... -
Page 8: Appliance With Electronic Control
Appliance with electronic control CONTROL UNIT I A Temperature setting and on/off knob B Signal light: on when the appliance is in operation C Fan boost key D Signal light: on when the fan boost is activated E Super freeze key F Signal light: on when super freeze is activated G Digital refrigerator temperature display indicates actual temperature in the appliance in the range from +1°C to +9°C... - Page 9 • If the temperature in your home is higher than normal, we recommend activating the fan boost by pressing the C key. • While the settings are being changed, the display will fl ash and an acoustic signal will indicate each change to the set temperature.
- Page 10 CONTROL UNIT II Appliance with a fan and the No Frost+ system A Freezer temperature key I Refrigerator on/off key B Freezer temperature digital display: displays J Signal light: on when the refrigerator is temperature in the range from -16°C to -24°C operating C Super freeze on/off key K Extra cooling power on/off key...
- Page 11 Adjusting the Refrigerator temperature range: from +1°C to +9° temperature from -16°C to -24°C + Freezer temperature range: super freeze • Adjust the freezer temperature with the A key and refrigerator temperature with the N key. • When one of the temperature adjustment keys is pressed, the display will start fl...
- Page 12 Intermittent acoustic signal - power failure alarm If the temperature in the refrigerator or freezer rises too high as a result of a power failure, an intermittent acoustic signal will be activated, signal light H will light up, and the highest actual temperature will be indicated on a fl...
-
Page 13: Refrigerator Interior Equipment
Refrigerator interior equipment Shelf (Equipment depends on the model) • The shelves may be adjusted as you like using the guides in the refrigerator interior. • Each shelf is fi tted with a locking device at the back, which prevents it from being pulled out unintentionally. If you wish to pull out a shelf (to move to another position or for cleaning), please proceed as follows: 1. - Page 14 Interior side of the • Mounted on the refrigerator door are compartments (shelves refrigerator door or bins) intended fro storing cheese, butter, eggs, yoghurt and other smaller packages, tubes, cans, etc. There is a bottle shelf at the lower end of the door. •...
-
Page 15: Storage Of Food In The Refrigerator
Storage of food in the refrigerator Important precautions • Proper use of the appliance, adequately packed food, correct and hints temperature and hygienic precautions produce substantial impact on the quality of stored food. • Always respect the best before date, printed on the packaging. •... -
Page 16: Storing Food In The Fresh+ Compartment
Storing food in the Fresh+ compartment The Fresh+ drawer allows storing a wide variety of fresh food to keep longer than in a conventional refrigerator. The food stays fresh longer, retaining the fl avour and nutrients. It lows down decay and loss of mass; therefore, fruit and vegetables remain fresh and natural longer. -
Page 17: Freezing And Storing Frozen Food
Freezing and storing frozen food Freezing process • 24 hours before freezing fresh food, activate the super freeze function: - control unit I: use the E key, - control unit II: use the C key. After 24 hours of super freeze operation, insert the fresh food into the freezer compartment. -
Page 18: Defrosting The Appliance
Storage of industrially The storage time and recommended temperature for storing frozen food commercially frozen foods is indicated on the packaging. Always follow manufacturer’s instructions for storage and use of frozen food. When shopping be careful to choose only food which is adequately packed and provided with complete data and stored in freezers where the temperature never rises above -18°C. - Page 19 Defrosting classical • Clean the freezer when the frost layer in the freezer reaches freezer thickness of around 3-5 mm. • 24 hours before defrosting activate the fast freeze function (see relevant control chapter depending upon the model of the appliance – fast freezing) for continuous operation in order to additionally freeze the food inside.
-
Page 20: Cleaning The Appliance
Cleaning the appliance Prior any cleaning attempt disconnect the appliance from the mains (see the control chapter for ON/OFF function), and pull the power cord from the mains wall outlet. Make sure to remove traces of any cleansing agents you had been using. - Page 21 Fault: Cause/Remedy Excessive ice formation at the • Frequent opening of the door, door open too long. rear interior wall of the freezer: • Inserting hot food in the freezer. • Food or dish is touching the rear interior panel of the refrigerator.
-
Page 22: Noise Level
Noise level The refrigerator – freezer appliances are cooled by the refrigeration system with a compressor (assisted by fan in certain models) whose operation may produce certain noise. The level of such noise depends upon the location, correct use and age of the appliance. •... - Page 24 COMBI 540 G+ 476455/en (12-15)
