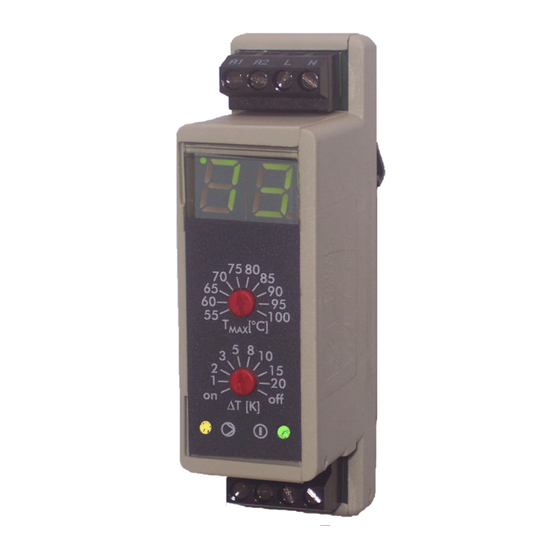

Solar thermal controller
ZPR-D
Quick installation and
Operating manual
Firmware version 1.0x,
Mai 2011
Advertisement
Table of Contents
Related Manuals for KT-Elektronik ZPR-D
Summary of Contents for KT-Elektronik ZPR-D

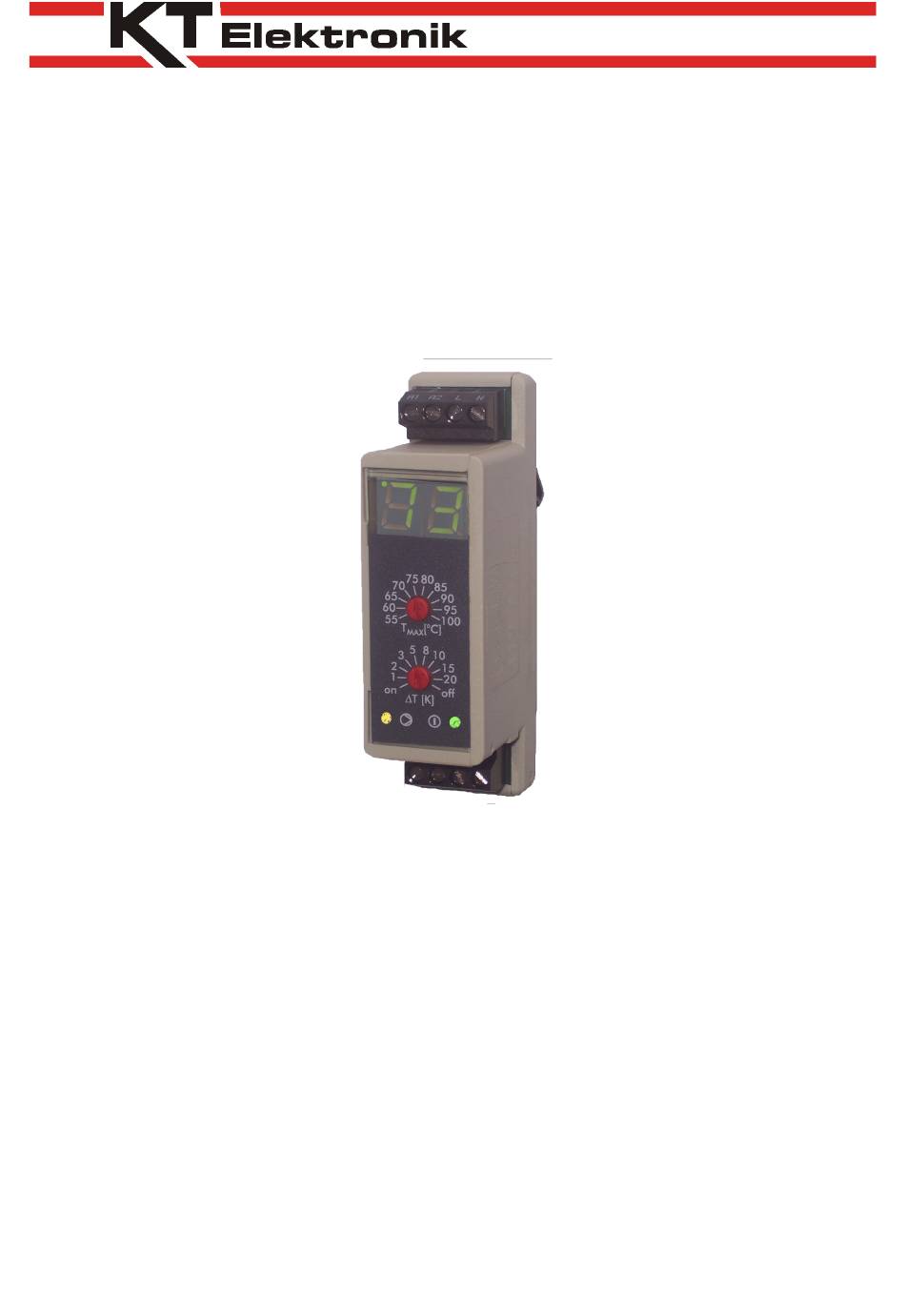

- Page 1 Solar thermal controller ZPR-D Quick installation and operating manual Firmware version 1.0x, Mai 2011...
- Page 2 Technical specifications..........................Application The digital solar thermal controller ZPR-D is a universally applicable and robust device for the temperature difference control for the area of the solar thermal systems, heating systems and air conditioning systems. The device distinguishes itself by special economic efficiency and is held consciously extremely easy in service and assembly.
- Page 3 KT-Elektronik ZPR-D Function The digital solar thermal controller ZPR-D has two rotary switches serveable on the front. With the rotary switches are given the threshold ∆T and according to operating purpose a Maximum or Set/pont of temperature (T The device continuously mieasures two connected temperature sensors and determines the temperature difference ∆T .
- Page 4 ZPR-D. IIn the front of the ZPR-D two switch waves of the rotary switch are visible which can be adjust with a slit screwdriver (size 4 mm) in the position which corresponds to the desired scale value.
- Page 5 KT-Elektronik ZPR-D System variants System variant 1: Solar thermal system The program controls the solar circuit pump depending on the temperature of the solar collector and the storage tank temperature. If the temperature in the solar collector is higher than the buffer temperature, the solar circuit pump is turned on.
- Page 6 Quick installation and operating manual KT-Elektronik System variant 2: Storage tank heat exchanger The storage tank charging pump LP1 runs if the storage tank temperature SF1 is higher around the adjusted temperature threshold (lower rotary switch) than the storage tank...
- Page 7 KT-Elektronik ZPR-D Technical specifications Inputs 2 Inputs for temperature sensor Pt 1000 Outputs 1 isolated/potential-free relay outputs with varistor (snubber) Max power handling 250 V AC, 2A (at cos j = 1) Operating voltage 85 to 250 V, 48 to 62 Hz, max. 0.7 VA Ambient temperature 0 to 40 °C (operating),...
- Page 8 KT-Elektronik GmbH Berlinickestrasse 11 12165 Berlin Telefon: (030) 79 08 05-0 Telefax: (030) 79 08 05-20 e-mail: info@kt-elektronik.de Internet: http://www.kt-elektronik.de KA_11986_ZPR-D_EN002...
